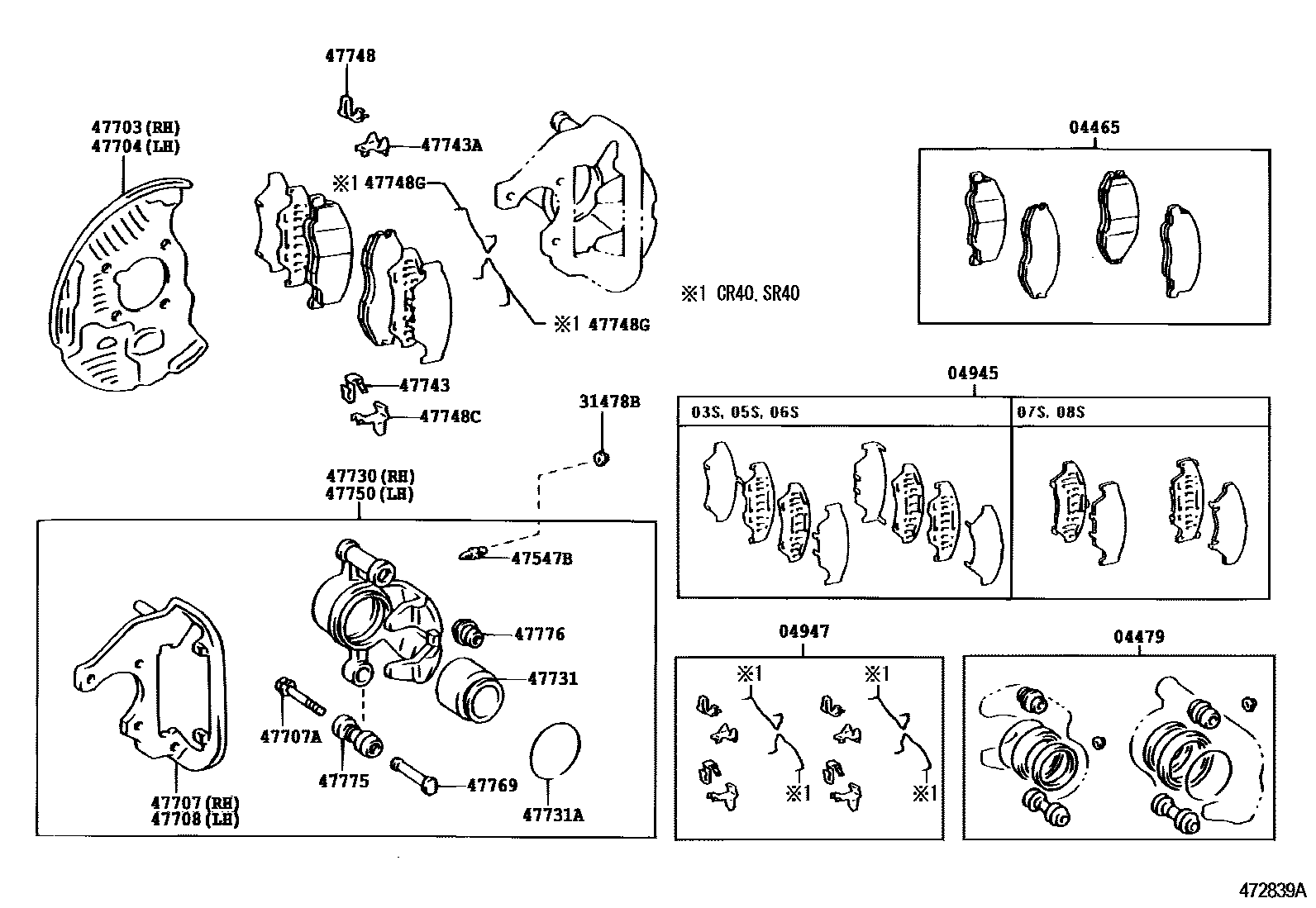

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-28340iCR40,SR40199610-199808

main04465-28360iCR52,SR50..03S,05S,06S199812-200407

main04465-28360iCR5#,SR50199610-199808

main04465-28370iCR41,KR4#199611-199808

main04465-28380iCR40,SR40199808-200010

sub04465-28340

main04465-28381iCR40,50,SR40,50..07S,08S200010-200111

main04465-28390iKR52200412

sub04465-28360

main04465-28390iCR5#,SR50199808-199812

sub04465-28360

main04465-28420iCR41,KR4#199808-199812

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-28050iKR42,52199610-200503

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-28130iCR42,KR42,SR40..03S,05S,06S199610-200103

main04945-28140iCR52,KR52,SR50..03S,05S,06S199610-199812

main04945-28160iCR40,50,SR40,50..07S,08S200104-200111

04947FITTING KIT, DISC BRAKE, FRONT

main04947-14020iCR42,KR42,SR40..03S,05S,06S199611-199812

main04947-14031iCR40,5#,SR40,50199610-199812

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iCR40,50,SR40,50199610-200407

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12020iCR5#,SR50199610-200407

main47547-27040iCR42..03S,05S;CR42..06S..CBU;CR42..ATM..IV5199610-200407

47703COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH

main47703-28072iCR41,KR4#,SR40..03S,05S,06S199611-199812

main47703-28090iCR4#,KR4#,SR40..B,D,N199611-199812

main47703-28100iCR40,SR40..07S,08S199610-200111

main47781-28161iCR50,SR50..07S,08S199812-200111

main47781-28170iCR52,KR52,SR50..03S,05S,06S199610-199812

47704COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH

main47704-28072iCR42,KR42199611-199812

main47704-28090iCR42,KR42,SR40..03S,05S,06S199611-199812

main47704-28100iCR40,SR40..07S,08S199610-200111

main47782-28161iCR50,SR50..07S,08S199812-200111

main47782-28170iCR52,KR52,SR50..03S,05S,06S199610-199812

47707PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT RH

main47707-28110iCR5#,SR50199610-200407

main47707-28120iCR50,SR50..07S,08S199812-200111

main47707-28140iSR40..B199611-200407

main47707-28150iCR40,SR40..07S,08S199610-200111

47707ABOLT, HEXAGON(FOR FRONT DISC BRAKE TORQUE PLATE)

main90119-10385iCR4#,5#,KR4#,SR40,50199610-200407

47708PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT LH

main47708-28110iCR52199610-200407

main47708-28120iCR50,SR50..07S,08S199812-200111

main47708-28140iSR40..B199611-200407

main47708-28150iCR40,SR40..07S,08S199610-200111

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-28150iCR52199610-200407

main47730-28210iSR40..B199611-200407

main47730-28220iCR40,SR40..07S,08S199610-200111

main47730-28250iCR50,SR50..07S,08S199812-200111

47731PISTON, FRONT DISC BRAKE

main47731-28040iCR4#,5#,KR4#,SR40,50199610-200407

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-67001iCR4#,5#,KR4#,SR40,50199610-200407

47743SPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE)

main47743-14040iCR4#,5#,KR4#,SR40,50199610-200407

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-28010iCR4#,5#,KR4#,SR40,50199610-200407

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-14050iCR4#,5#,KR4#,SR40,50199610-200407

47748CSPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE)

main47748-28010iCR40,50,SR40,50199610-200407

47748GSPRING, ANTI-RATTLE, NO.3(FOR FRONT DISC BRAKE)

main47748-20020iCR40,5#,SR40,50199610-200407

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-28150iKR52199610-200407

main47750-28210iSR40..B199611-200407

main47750-28220iCR40,SR40..E,Q,V199610-200111

main47750-28250iCR50,SR50..07S,08S199812-200111

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-28020iCR40,50,SR40,50199610-200407

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-28020iCR4#,5#,KR4#,SR40,50199610-200407

47776BOOT, MAIN PIN(FOR FRONT DISC BRAKE)

main47776-14010iCR4#,5#,KR4#,SR40,50199610-200407

23 parts on this diagram · 2 diagrams in section
