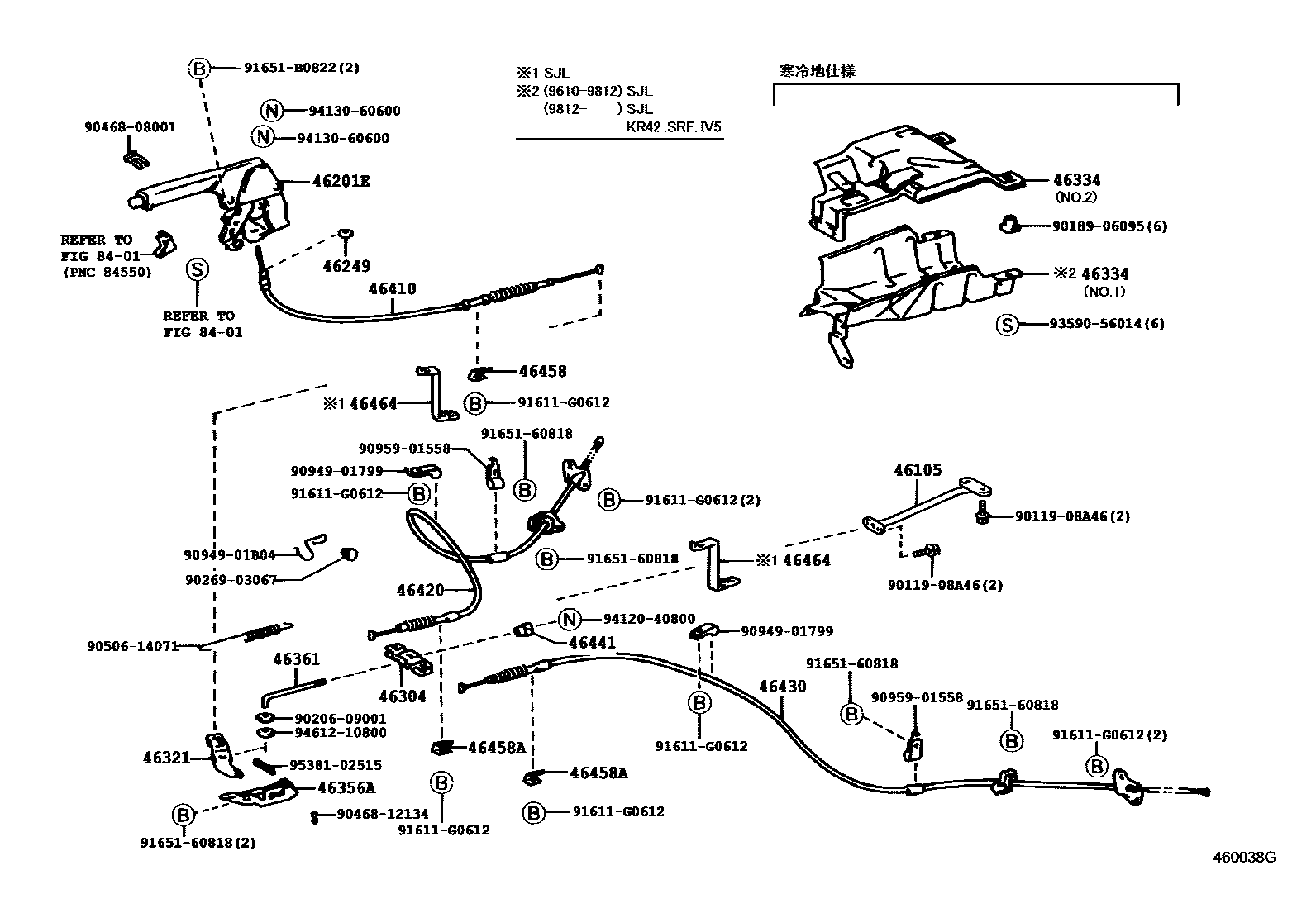

PARKING BRAKE & CABLE

0001 1 0003 1

46105BRACKET SUB-ASSY, PARKING BRAKE PLANGER OR PEDAL

main46133-28030iCR42..IV5..SJL199611-200407

46201PEDAL SUB-ASSY, PARKING BRAKE

main46210-28320iCR40,50,SR40,50..E,Q,S,V199812-200111

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-26030-B1iCR42..06S..MTM..IV5199611-200407

MD.MOON MIST,TRIM1#

main46201-26040-B1iCR42,52..N199610-200407

MD.MOON MIST,TRIM1#

sub46201-26040

main46201-26040-G0iCR40,50,SR40,50..E,Q199610-199812

DK.SAGE,TRIM6#

sub46201-26040

46249SHIELD, PARKING BRAKE HOLE

main46249-28010iCR42..06S..MTM..IV5199704-200407

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46304-28010iKR42,52199610-200407

46321LEVER, PARKING BRAKE INTERMEDIATE

main46321-28060iCR52;CR42..03S,05S;CR42..06S..CBU;CR42..ATM..IV5199610-200407

46334PROTECTOR, INTERMEDIATE LEVER

main46334-28010iCR42..IV5..SJL199610-200407

main46334-28010iCR40,50,SR40,50199812-200111

main46334-28020iKR42..SJL;KR42..SRF..IV5199611-200407

46356ABRACKET, INTERMEDIATE LEVER(FOR PARKING BRAKE)

main46356-28031iCR42..06S..MTM..IV5199610-200407

46361ROD, PARKING BRAKE PULL

main46361-28031iCR4#,5#,KR4#,SR40,50199610-200407

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-28200iCR42..06S..MTM..IV5199610-200407

main46410-28210iCR40,50,SR40,50..E,Q,S,V199812-200111

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-28400iCR40,SR40199610-200407

main46420-28410iCR52199610-200407

main46420-28420iCR42..CBU..SJL199611-200407

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-28350iCR42..06S..MTM..IV5..V1199610-200407

main46430-28360iCR52199610-200407

main46430-28370iCR41,KR4#..SJL199611-200407

46441NUT, WIRE ADJUSTING, NO.1

main46441-35010iCR4#,5#,KR4#,SR40,50199610-200407

46458RETAINER, CABLE

main46458-28010iCR4#,5#,KR4#,SR40,50199610-200407

46458ARETAINER, CABLE

main46458-28010iCR4#,5#,KR4#,SR40,50199610-200407

46464PLATE, CABLE CLAMP SUPPORT

main46464-28050iCR41,KR4#..SJL199611-200407

8401

9011908A46

main90119-08A46

9018906095

main90189-06095

9020609001

main90206-09001

9026903067

main90269-03067

9046808001

main90468-08001

9046812134

main90468-12134

9050614071

main90506-14071

9094901799

main90949-01799

9094901B04

main90949-01B04

9095901558

main90959-01558

91611G0612

main91611-G0612

9165160818

main91651-60818

91651B0822

main91651-B0822

9359056014

main93590-56014

9412040800

main94120-40800

9413060600

main94130-60600

9461210800

main94612-10800

9538102515

main95381-02515

35 parts on this diagram · 2 diagrams in section
