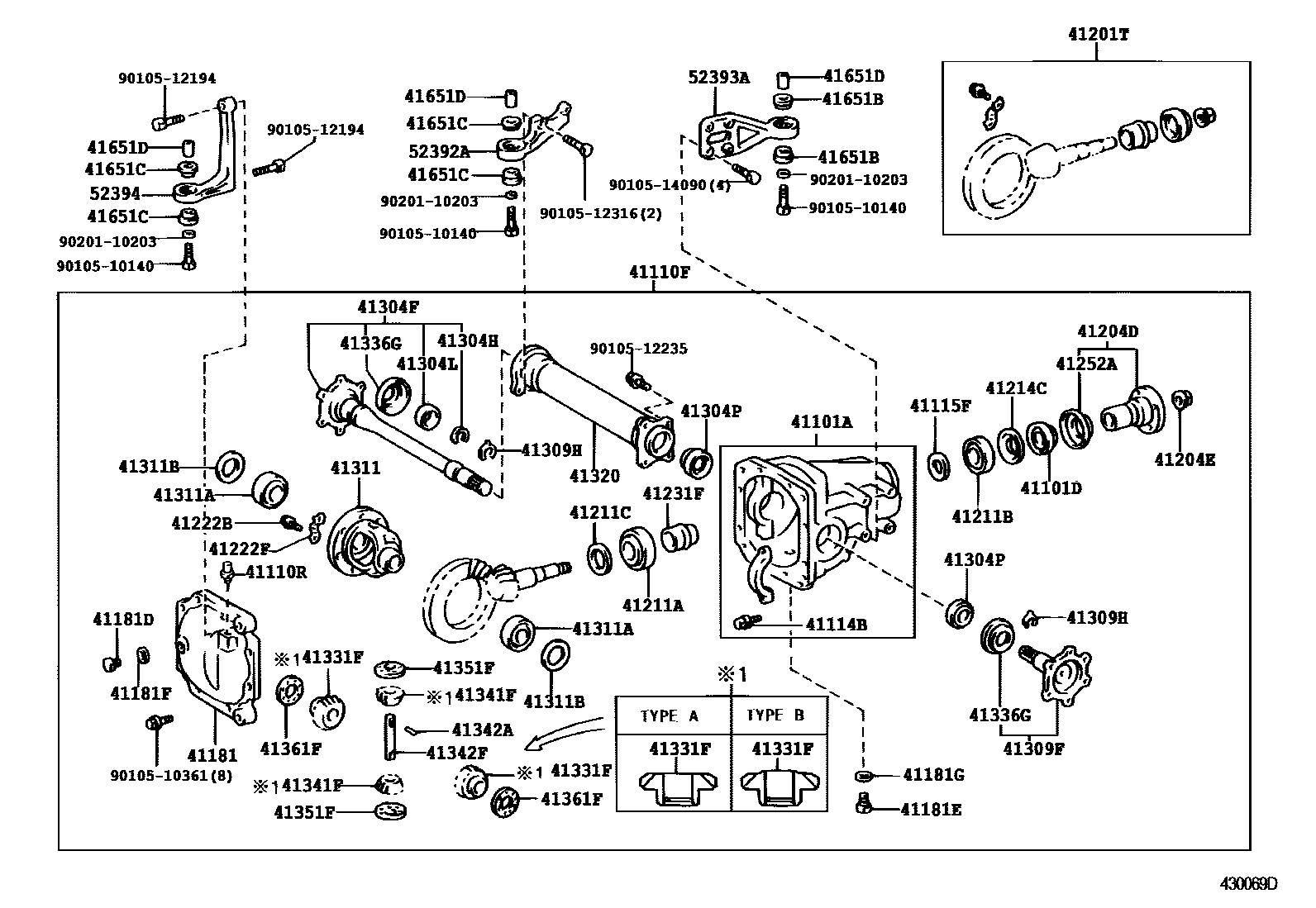

FRONT AXLE HOUSING & DIFFERENTIAL
41101ACARRIER SUB-ASSY, DIFFERENTIAL, FRONT
41110FCARRIER ASSY, DIFFERENTIAL, FRONT
41110RPLUG, BREATHER (FOR FRONT DIFFERENTIAL)
41114BBOLT, FRONT DIFFERENTIAL BEARING CAP
41115FRING, FRONT DIFFERENTIAL OIL STORAGE
41181DPLUG (FOR FRONT DIFFERENTIAL FILLER)
41181EPLUG (FOR FRONT DIFFERENTIAL DRAIN)
41181FGASKET (FOR FRONT DIFFERENTIAL FILLER PLUG)
41181GGASKET (FOR FRONT DIFFERENTIAL DRAIN PLUG)
41204DFLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT
41204ENUT (FOR FRONT DRIVE PINION COMPANION FLANGE FRONT)
41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)
41211CGEAR, DIFFERENTIAL RING
41214CSLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
41222FPLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK
41231FSPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING
41252ADEFLECTOR, DUST (FOR FRONT DIFFERENTIAL)
41304FSHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, RH
41304HRING, HOLE SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT)
41304LBEARING (FOR FRONT DIFFERENTIAL SIDE GEAR SHAFT RH)
41304PSEAL, OIL (FOR DIFFERENTIAL SIDE GEAR SHAFT)
41309FSHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, LH
41309HRING, SHAFT SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT)
41311CASE, FRONT DIFFERENTIAL
41311ABEARING (FOR FRONT DIFFERENTIAL CASE)
41311BWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE)
41320TUBE ASSY, FRONT DIFFERENTIAL
41336GCOVER, DUST(FOR FRONT DIFFERENTIAL SIDE GEAR SHAFT)
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41651BCUSHION, FRONT DIFFERENTIAL MOUNT, NO.1
41651CCUSHION, FRONT DIFFERENTIAL MOUNT, NO.2
41651DCOLLAR (FOR FRONT DIFFERENTIAL MOUNT CUSHION)
52392ASUPPORT, FRONT DIFFERENTIAL, NO.1
52393ASUPPORT, FRONT DIFFERENTIAL, NO.2
52394SUPPORT, FRONT DIFFERENTIAL, NO.3
9010510140
main90105-10140
9010510361
main90105-10361
9010512194
main90105-12194
9010512235
main90105-12235
9010512316
main90105-12316
9010514090
main90105-14090
9020110203
main90201-10203
52 parts on this diagram · 1 diagram in section
