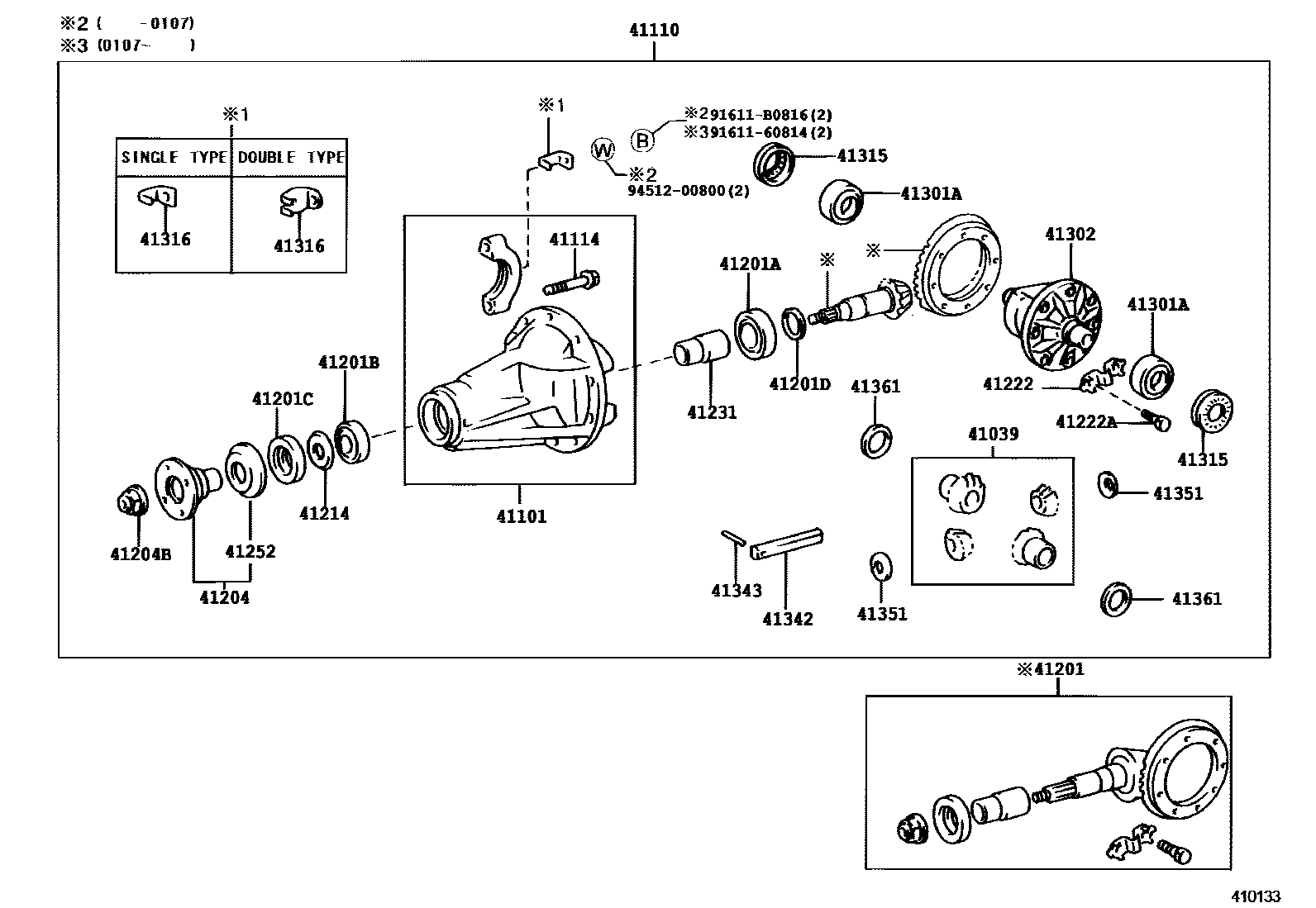

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1

41039GEAR KIT, DIFFERENTIAL, REAR

main41039-28010iCR4#,5#,KR4#,SR40,50199610-200407

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-22030iSR40..MTM199611-200111

main41101-30010iKR42,52199610-200407

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-20241iCR42..ATM..SJL199610-200407

main41110-21020iKR42..V1199610-200407

main41110-22230iSR40..MTM199611-200111

main41110-22240iCR42..MTM..CBU..SJL199610-200407

main41110-27030iCR51;KR41..ATM..V1199611-200305

sub41110-27100

main41110-27100iCR52200305-200407

main41110-27120iCR41..ATM..V1;KR41..MTM..V1199611-200407

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main90105-12240iCR4#,5#,KR4#,SR40,50199610-200407

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-29217iCR42..06S..MTM..CBU..V1;CR42..(03S,05S)..MTM..V1199610-200708

main41201-29307iCR51;KR41..ATM..V1199611-200305

sub41201-29865

main41201-29755iSR40..MTM199611-200111

main41201-29765iCR40..MTM;SR40..ATM;KR42..SJL;CR41..MTM..SJL199610-200708

main41201-29865iCR52200305-200708

main41201-39555iSR40..ATM..B;CR42..ATM..SJL199610-200407

main41201-80020iCR41..ATM..V1;KR41..MTM..V1199611-200407

41201ABEARING (FOR REAR DRIVE PINION REAR)

main90366-35023iCR42,52200206-200407

main90366-35064iCR40,50,SR40,50199812-200206

main90366-35067iCR4#,5#,KR4#,SR40,50199610-199812

sub90366-35064

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90366-30055iKR42,52199610-200407

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90311-38047iCR40,50,SR40,50200107-200407

main90311-38133iCR4#,5#,KR4#,SR40,50199610-200107

sub90311-38047

41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)

main90201-35396iKR42,52199610-200407

main90201-35397iCR40,50,SR40,50199610-200407

main90201-35398iCR42,52199610-200407

main90201-35399iCR42,52199610-200407

main90201-35400iCR4#,5#,KR4#,SR40,50199610-200407

main90201-35401iCR42,52199610-200407

main90201-35402iCR42,52199610-200407

main90201-35403iCR4#,5#,KR4#,SR40,50199610-200407

main90201-35404iCR40,50,SR40,50199610-200407

main90201-35438iCR42,52199610-200407

main90201-35439iCR4#,5#,KR4#,SR40,50199610-200407

main90201-35440iCR40,50,SR40,50199610-200407

main90201-35441iCR40,50,SR40,50199610-200407

main90201-35515iKR42,52199610-200407

main90201-35516iCR42,52199610-200407

main90201-35517iCR40,50,SR40,50199610-200407

main90201-35518iCR40,50,SR40,50199610-200407

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-20030iCR4#,5#,KR4#,SR40,50199610-200407

41204BNUT (FOR REAR DRIVE PINION)

main90179-18020iCR4#,5#,KR4#,SR40,50199610-200407

41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

main41214-30021iCR4#,5#,KR4#,SR40,50199610-200407

41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-28010iCR4#,5#,KR4#,SR40,50199610-200407

41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

main90101-11353iCR4#,5#,KR4#,SR40,50199610-200407

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-22020iCR4#,5#,KR4#,SR40,50199610-200407

41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

main41252-30010iCR4#,5#,KR4#,SR40,50199610-200407

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90368-45014iCR4#,5#,KR4#,SR40,50199610-200407

41302CASE SUB-ASSY, REAR DIFFERENTIAL

main41311-30022iCR4#,5#,KR4#,SR40,50199610-200407

41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING

main41315-30010iCR4#,5#,KR4#,SR40,50199610-200407

41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT

main41316-35010iCR4#,5#,KR4#,SR40,50199610-200407

main41317-30010iCR4#,5#,KR4#,SR40,50199610-200407

41342SHAFT, REAR DIFFERENTIAL PINION

main41342-30011iCR4#,5#,KR4#,SR40,50199610-200407

41343PIN, REAR DIFFERENTIAL PINION SHAFT

main90250-06058iCR4#,5#,KR4#,SR40,50199610-200407

41351WASHER, REAR DIFFERENTIAL PINION THRUST

main41351-30032iCR4#,5#,KR4#,SR40,50199610-200407

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-22020iCR4#,5#,KR4#,SR40,50199610-200407

main41361-22030iCR4#,5#,KR4#,SR40,50199610-200407

main41361-22040iCR42,52199610-200407

main41361-22140iCR42,52199610-200407

main41361-22150iCR42,52199610-200407

main41361-22160iCR4#,5#,KR4#,SR40,50199610-200407

9161160814

main91611-60814

91611B0816

main91611-B0816

9451200800

main94512-00800

27 parts on this diagram · 2 diagrams in section
