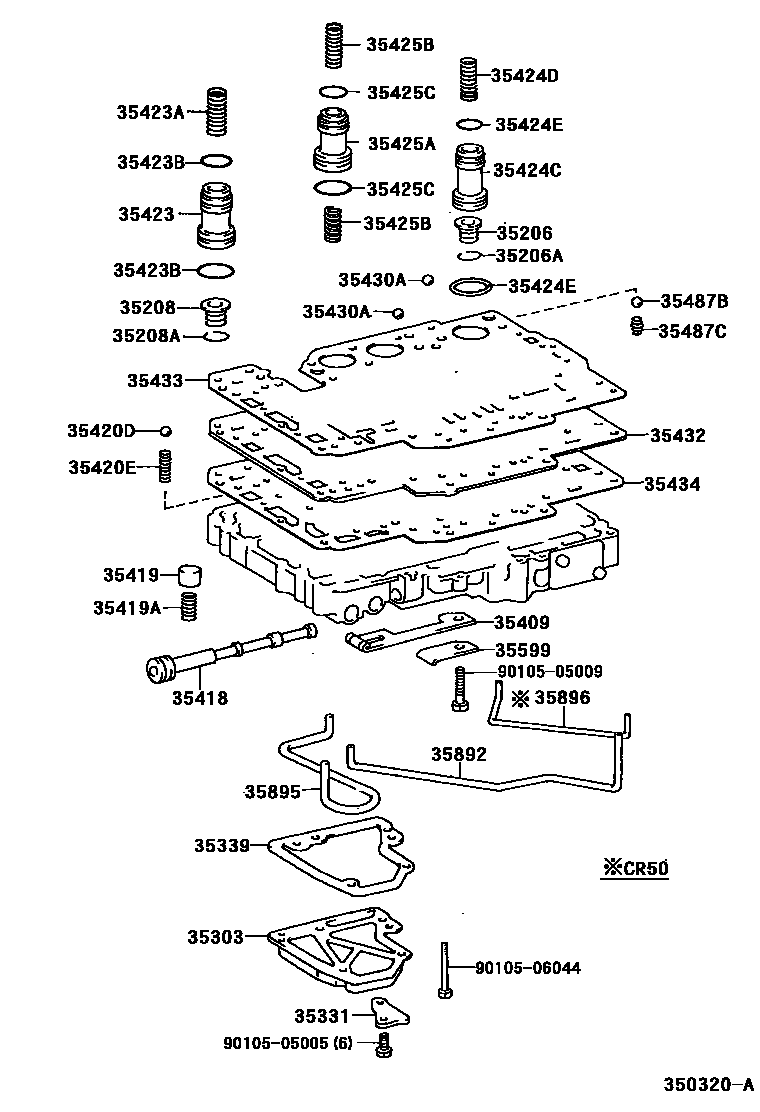

VALVE BODY & OIL STRAINER (ATM)

0001 1A44DL,A45DF,A45DL 0002 1A42D,A44D,A44DF 0003 1A42D,A44D,A44DF 0004 1A42D,A44D,A44DF,A44DL,A45DF,A0006 1A42D,A44D,A44DF 0007 1A44DL,A45DF,A45DL 0008 1A42D,A44D,A44DF 0009 1A42D,A44D,A44DF 0010 1A44DE,A44DF 0011 1A44DE,A44DF 0012 1A44DE,A44DF 0013 1A44DE,A44DF

35206SPRING SUB-ASSY, C-1 ACCUMULATOR

main35206-28010iCR4#,5#,SR40,50..ATM199610-199812

main35206-30010iKR4#..ATM199611-199812

35206ARING, HOLE SNAP (FOR C-1 ACCUMULATOR SPRING)

main90521-22004iCR4#,5#,KR4#,SR40,50..ATM199610-199812

35208SPRING SUB-ASSY, B-2 ACCUMULATOR

main35208-26010iSR40,50..ATM199610-199812

main35208-28010iCR42,52..ATM199812-200208

35208ARING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING)

main90521-22004iCR4#,5#,KR42,SR40,50..ATM199610-199812

35303STRAINER SUB-ASSY, OIL

main35303-14010iCR40,50,SR40,50..ATM199610-199812

main35303-30050iCR41,51,KR4#..ATM199611-199812

main35303-35020iCR42,52,KR42,52..ATM200201

35331COVER, OIL STRAINER

main35331-14010iCR40,50,SR40,50..ATM199610-199812

35339GASKET, OIL STRAINER

main35339-28010iCR41,51,KR4#..ATM199611-199812

main35339-28020iCR40,50,SR40,50..ATM199610-199812

35409SPRING SUB-ASSY, MANUAL DETENT

main35409-22040iCR40,50,SR40,50..ATM199812-200111

main35409-30010iKR41..ATM199611-199812

main35409-35010iCR4#,5#,KR42,SR40,50..ATM199610-199812

35418VALVE, MANUAL

main35418-24010iCR40,50,SR40,50..ATM199812-200111

main35418-30050iCR4#,5#,KR4#,SR40,50..ATM199610-199812

35419VALVE, CHECK, NO.1

main35419-22010iCR42,52,KR42..ATM199812

main35419-50010iCR40,50,SR40,50..ATM199812-200111

35419ASPRING, COMPRESSION (FOR CHECK VALVE)

main90501-09145iCR40,50,SR40,50..ATM199812-200111

main90501-13003iKR41..ATM199611-199812

main90501-16083iCR4#,5#,KR42,SR40,50..ATM199610-199812

35420BODY ASSY, LOWER VALVE

main35420-28070iKR42..ATM199812

main35420-28090iCR41,51..ATM199611-199812

main35420-28160iSR40,50..ATM199610-199812

main35420-28170iCR40..ATM199610-199812

main35420-28180iCR50..ATM199610-199812

35420DBALL (FOR LOWER VALVE BODY)

main35495-22020iCR4#,5#,KR4#,SR40,50..ATM199610-199812

main35496-22030×2iCR40,50,SR40,50..ATM199610-199812

35420ESPRING (FOR LOWER VALVE BODY)

main90501-04727iCR4#,5#,KR4#,SR40,50..ATM199610-199812

35423PISTON, B-2 ACCUMULATOR

main35421-26010iCR4#,5#,KR42,SR40,50..ATM199610-199812

main35421-30020iKR41..ATM199611-199812

35423ASPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON)

main90501-25011iKR41..ATM199611-199812

main90501-25033iCR40,50,KR42..ATM199812

main90501-25037iKR52,SR40,50..ATM199812

main90501-28025iCR40,50..ATM199610-199812

35423BRING, O (FOR B-2 ACCUMULATOR PISTON)

main90301-23010iCR40,50,SR40,50..ATM199812-200111

main90301-23194iCR4#,5#,KR4#,SR40,50..ATM199610-199808

main90301-29011iCR4#,5#,KR4#,SR40,50..ATM199808-199812

main90301-29187iCR4#,5#,KR4#,SR40,50..ATM199610-199808

35424CPISTON, C-1 ACCUMULATOR

main35421-22030iCR4#,5#,KR42,52,SR40,50..ATM199812

main35424-26010iCR4#,5#,KR4#,SR40,50..ATM199610-199812

35424DSPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON)

main90501-19017iKR42..ATM199812-200208

main90501-20063iCR42,52..ATM199812

main90501-20162iCR40,50,SR40,50..ATM199812-200111

35424ERING, O (FOR C-1 ACCUMULATOR PISTON)

main90301-21012iCR4#,5#,KR42,52,SR40,50..ATM199812

main90301-22185iCR4#,5#,KR4#,SR40,50..ATM199610-199808

main90301-26012iCR4#,5#,KR4#,SR40,50..ATM199808-199812

main90301-26190iCR4#,5#,KR4#,SR40,50..ATM199610-199808

35425SEAT, PRESSURE REGULATOR VALVE SLEEVE

main35425-14010iCR4#,5#,KR4#,SR40,50..ATM199610-199812

35425APISTON, C-2 ACCUMULATOR

main35423-30010iKR41,SR40,50..ATM199610-199812

main35441-30010iCR4#,5#,KR42..ATM199610-199812

35425BSPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)

main90501-15003iKR41..ATM199611-199812

main90501-16093iCR42,52,KR52..ATM200208-200708

main90501-18041iKR41,SR40,50..ATM199610-199812

main90501-18105iSR40,50..ATM199610-199812

main90501-25010iKR42..ATM199611-199812

main90501-27010iCR42,52..ATM199812-200208

main90501-27016iKR42..ATM200208-200708

main90501-28030iCR40,50,SR40,50..ATM199812-200111

35425CRING, O (FOR C-2 ACCUMULATOR PISTON)

main90301-18010iCR40,50,SR40,50..ATM199812-200407

main90301-18186iCR4#,5#,KR4#,SR40,50..ATM199610-199808

main90301-26012iCR42,52,KR42,52..ATM199812

main90301-26190iCR4#,5#,KR4#,SR40,50..ATM199610-199808

35430BODY ASSY, REAR UPPER VALVE

main35430-28050iCR40,50..ATM199610-199812

main35430-28060iKR42..ATM199611-199812

main35430-30110iCR42,52..ATM199812-200208

main35430-30170iSR40,50..ATM199610-199812

main35430-30190iKR41..ATM199611-199812

35430ABALL (FOR REAR UPPER VALVE BODY)

main35495-22020×3iCR4#,5#,KR4#,SR40,50..ATM199610-199812

main90360-06023×2iCR52,KR42..ATM199812

35432PLATE, VALVE BODY, NO.1

main35432-28020iCR40,50..ATM199610-199812

main35432-28060iKR42..ATM199611-199812

main35432-28070iCR41,51..ATM199611-199812

main35432-28080iSR40,50..ATM199610-199812

main35432-28100iCR42,52..ATM199812-200208

main35432-30450iKR41..ATM199611-199812

35433GASKET, VALVE BODY, NO.1

main35433-14012iCR40,50,SR40,50..ATM199610-199812

main35433-30052iCR41,51,KR4#..ATM199611-199812

main35433-35010iCR42,52,KR42..ATM200208

35434GASKET, VALVE BODY, NO.2

main35434-14012iCR40,50,SR40,50..ATM199610-199812

main35434-30052iCR41,51,KR4#..ATM199611-199812

main35434-35010iCR42,52,KR42..ATM200208

35487BBALL, CHECK, NO.4

main35487-30010iCR4#,5#,KR4#,SR40,50..ATM199610-199812

35487CSPRING, COMPRESSION (FOR CHECK BALL)

main90504-05006iCR4#,5#,KR4#,SR40,50..ATM199610-199812

35599COVER, MANUAL DETENT SPRING

main35599-22040iCR40,50,SR40,50..ATM199812-200111

main35599-28010iCR42,52,KR42..ATM199812

main35599-30010iKR41..ATM199611-199812

35892TUBE, OVERDRIVE BRAKE

main35892-22010iCR40,50,SR40,50..ATM199812-200111

main35892-28010iCR42,52..ATM199812-200201

main35892-28020iCR40,50,SR40,50..ATM199610-199812

35895TUBE, FRONT CLUTCH APPLY

main35895-14011iCR40,50,SR40,50..ATM199610-199812

main35895-30021iCR41,51,KR4#..ATM199611-199812

35896TUBE, OVERDRIVE SWITCH APPLY

main35896-30020iCR50..ATM199610-199812

9010505005

main90105-05005

9010505009

main90105-05009

9010506044

main90105-06044

38 parts on this diagram · 12 diagrams in section
