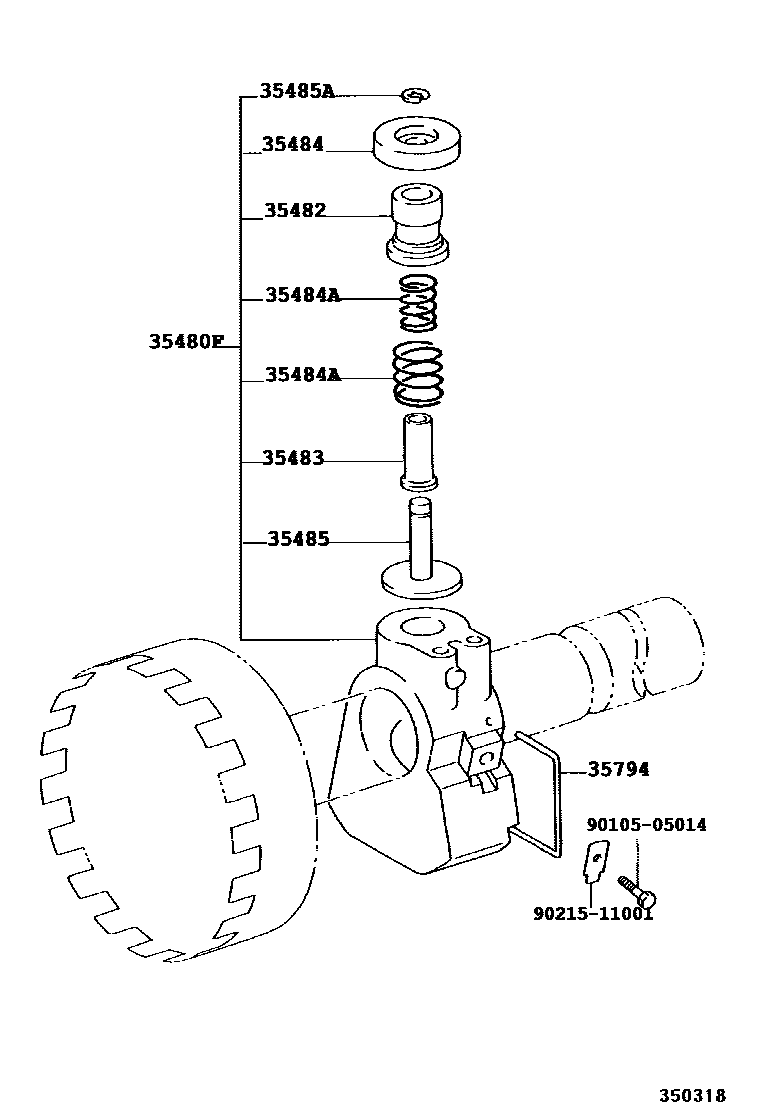

REAR OIL PUMP & GOVERNOR (ATM)

0001 1A44D,A44DE,A44DF,A44DL,A45DF,0002 1A42D

35480FBODY ASSY, GOVERNOR

main35480-26030iCR42,52..ATM199812-200407

main35480-28020iKR52..ATM200412

main35480-28030iKR42..ATM199812

35482VALVE, GOVERNOR

main35482-28010iCR4#,5#..ATM199610-199812

main35482-28020iKR52..ATM200412

main35482-30030iKR42..ATM199812

35483WEIGHT, GOVERNOR, INNER

main35483-14010iCR4#,5#,SR40,50..ATM199610-199812

35484WEIGHT, GOVERNOR, OUTER

main35484-22010iCR4#,5#,KR4#,SR40,50..ATM199610-199812

35484ASPRING, COMPRESSION (FOR GOVERNOR WEIGHT)

main90501-07033iCR4#,5#..ATM199610-199812

main90501-08059iCR4#,5#..ATM199610-199812

main90501-09049iKR52..ATM200412

main90501-09065iKR52..ATM200412

main90501-09070iKR4#..ATM199611-199812

35485SHAFT, GOVERNOR VALVE

main35485-14010iCR4#,5#,SR40,50..ATM199610-199812

main35485-22010iKR4#..ATM199611-199812

35485ARING, E (FOR GOVERNOR VALVE SHAFT)

main90523-05020iCR4#,5#,KR4#,SR40,50..ATM199610-199812

35794RING, GOVERNOR RETAINING

main35794-22010iCR4#,5#,KR4#,SR40,50..ATM199610-199812

9010505014

main90105-05014

9021511001

main90215-11001

10 parts on this diagram · 2 diagrams in section
