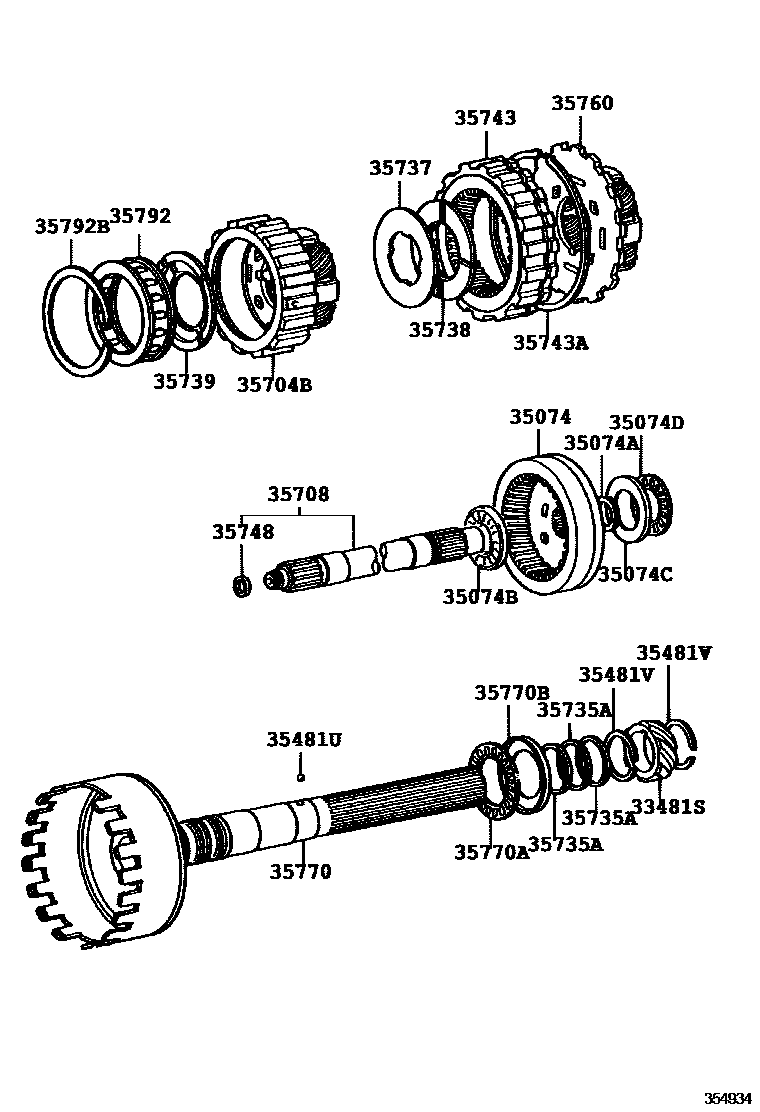

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

33481SGEAR, SPEEDOMETER DRIVE (ATM)

main33481-25011iKR41..ATM199611-199812

main33481-25021iCR41..ATM199611-200407

main33481-25031iKR42..ATM199611-199812

main33481-26011iSR40..ATM..B199611-199812

35074GEAR SUB-ASSY, REAR PLANETARY RING

main35074-30010iKR4#..ATM199611-199812

main35074-30030iCR4#,5#,KR52,SR40,50..ATM199610-199812

35074ARING, SET (FOR REAR PLANETARY RING GEAR)

main90522-20037iCR4#,5#,KR42,52,SR40,50..ATM199610-199812

35074BRACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR FRONT)

main35789-22050iKR4#..ATM199611-199812

main90374-21001iCR4#,5#,KR52,SR40,50..ATM199610-199812

35074CRACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR REAR)

main35789-22020iCR4#,5#,KR4#,SR40,50..ATM199610-199812

main35789-43010iCR50,SR50199812-200111

35074DBEARING, THRUST (FOR REAR PLANETARY RING GEAR REAR)

main90374-28014iCR4#,5#,KR4#,SR40,50..ATM199610-199812

35481UKEY OR BALL, SPEEDMETER DRIVE GEAR (ATM)

main90360-06004iCR41,KR4#,SR40..(05S,06S)..ATM199611-199812

35481VRING OR SPACER (FOR ATM SPEEDMETER DRIVE GEAR)

main90520-28009iCR42..ATM..N;CR40,SR40..ATM199611-200407

main90520-29004iCR40,50,SR40,50..ATM199812-200111

35704BGEAR SUB-ASSY, FRONT PLANETARY

main35704-22030iKR4#..ATM199611-199812

main35704-30040iCR4#,5#,SR40,50..ATM199610-199812

35708SHAFT SUB-ASSY, INTERMEDIATE

main35708-30031iKR42..ATM199611-199812

main35708-30041iCR4#,5#,SR40,50..ATM199610-199812

35735ARING, PLANETARY OUTPUT SHAFT OIL SEAL

main35735-22010iCR4#,SR40..ATM199812-200407

main35735-22010iCR4#,5#,KR4#,SR40,50..ATM199610-200111

35737WASHER, PLANETARY CARRIER THRUST

main35737-22010iCR4#,5#,KR4#,SR40,50..ATM199610-199812

35738WASHER, PLANETARY CARRIER THRUST, NO.2

main35738-22010iKR4#..ATM199611-200310

main35738-22011iKR42..ATM200310

main35738-30030iCR4#,5#,KR52,SR40,50..ATM199610-199812

35739WASHER, PLANETARY CARRIER THRUST, NO.3

main35739-14010iKR4#..ATM199611-199812

main35739-30020iCR4#,5#,SR40,50..ATM199610-199812

35743GEAR, FRONT PLANETARY RING

main35743-22010iKR4#..ATM199611-199812

main35743-30010iCR4#,5#,SR40,50..ATM199610-199812

35743ARING, SHAFT SNAP (FOR FRONT PLANETARY RING GEAR)

main90520-99121iCR4#,5#,KR4#,SR40,50..ATM199610-199812

35748RING, INTERMEDIATE SHAFT SLEEVE OIL SEAL

main35748-30010iCR4#,5#,KR4#,SR40,50..ATM199610-199812

35760GEAR ASSY, REAR PLANETARY

main35760-30011iKR42..ATM200310

main35760-30020iKR4#..ATM199611-200310

main35760-30040iCR4#,5#,KR52,SR40,50..ATM199610-199812

35770SHAFT ASSY, OUTPUT

main35770-14020iKR42..ATM199611-199812

main35770-26010iCR50,SR50199812-200111

main35770-28010iCR52,KR52..ATM199610-199812

main35770-28020iCR40,SR40..ATM199812-200111

main35770-28030iCR42..ATM199812-200407

main35770-30010iCR4#,SR40..ATM199610-199812

35770ABEARING, THRUST (FOR OUTPUT SHAFT)

main90374-38013iCR4#,5#,KR4#,SR40,50..ATM199610-199812

35770BRACE, THRUST BEARING (FOR OUTPUT SHAFT)

main35789-22040iCR4#,5#,KR4#,SR40,50..ATM199610-199812

35792CLUTCH, 1 WAY, NO.2

main35792-30011iKR4#..ATM199611-199812

main35792-30030iCR4#,5#,SR40,50..ATM199610-200208

main35792-53010iCR42,52..ATM200208-200407

35792BRING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2)

main90521-79148iCR4#,5#,KR42,52,SR40,50..ATM199610-199812

23 parts on this diagram · 1 diagram in section
