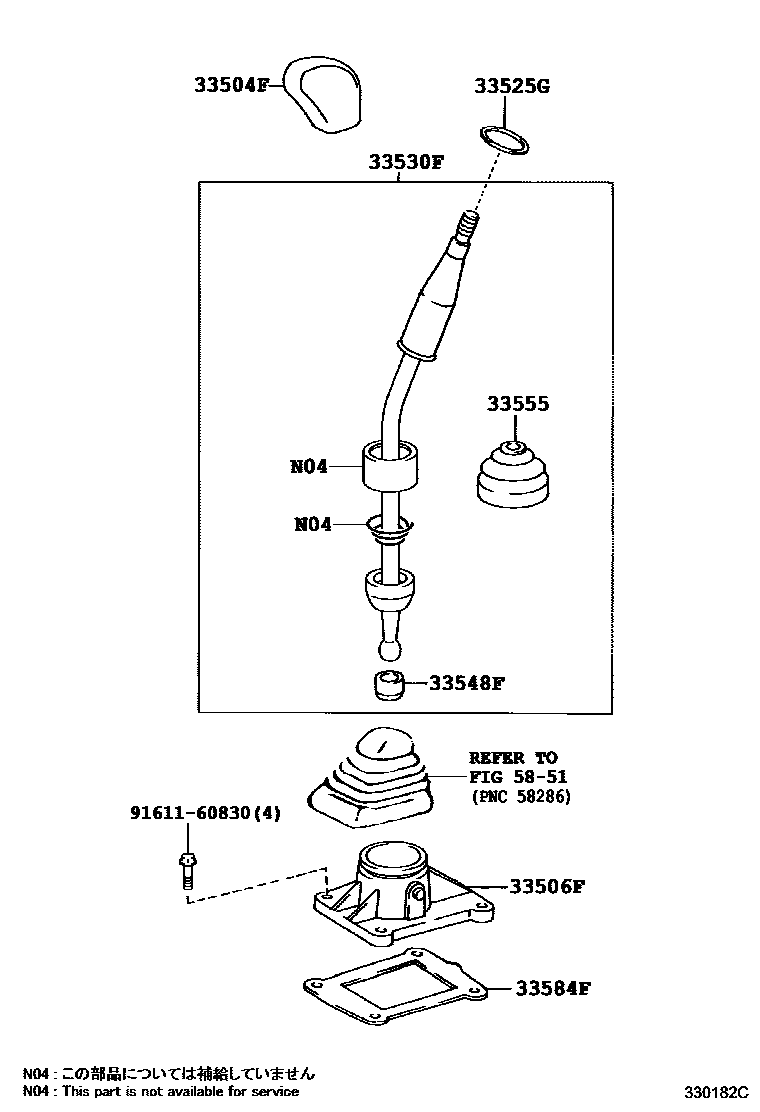

SHIFT LEVER & RETAINER

0001 1 0002 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-12180-B2iSR40..MTM199610-200407

MD.MOON MIST,TRIM1#

sub33504-12180¥3,810

main33504-12180-G3iCR40,50..MTM..E199610-199812

DK.SAGE,TRIM6#

sub33504-12180¥3,810

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33506-26070iSR40..MTM¥4,600199610-200407

main33506-26080iCR52..MTM¥4,390199610-200407

33525GRING, SHIFT LEVER

main33525-28030iCR42,52,KR42,52,SR40..MTM¥160199610-199812

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-28200iCR42..MTM..N¥11,500199610-200407

main33530-28210iCR41,KR4#,SR40..(03S,06S)..MTM¥11,500199611-200407

main33530-28220iCR52..MTM..N¥11,500199610-200407

main33530-28230iCR52..MTM..D¥11,500199611-200407

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-31010iCR4#,5#,KR4#,SR40..MTM¥270199610-200407

33555BOOT, SHIFT LEVER

main33555-35040iSR40..MTM¥580199610-200407

33584FGASKET, CONTROL SHIFT LEVER RETAINER (FOR FLOOR SHIFT)

main33584-26020iKR52..MTM¥260199610-200407

main33584-60010iCR42..06S..MTM..IV5¥280199610-200407

5851

9161160830

main91611-60830¥100

9 parts on this diagram · 2 diagrams in section
