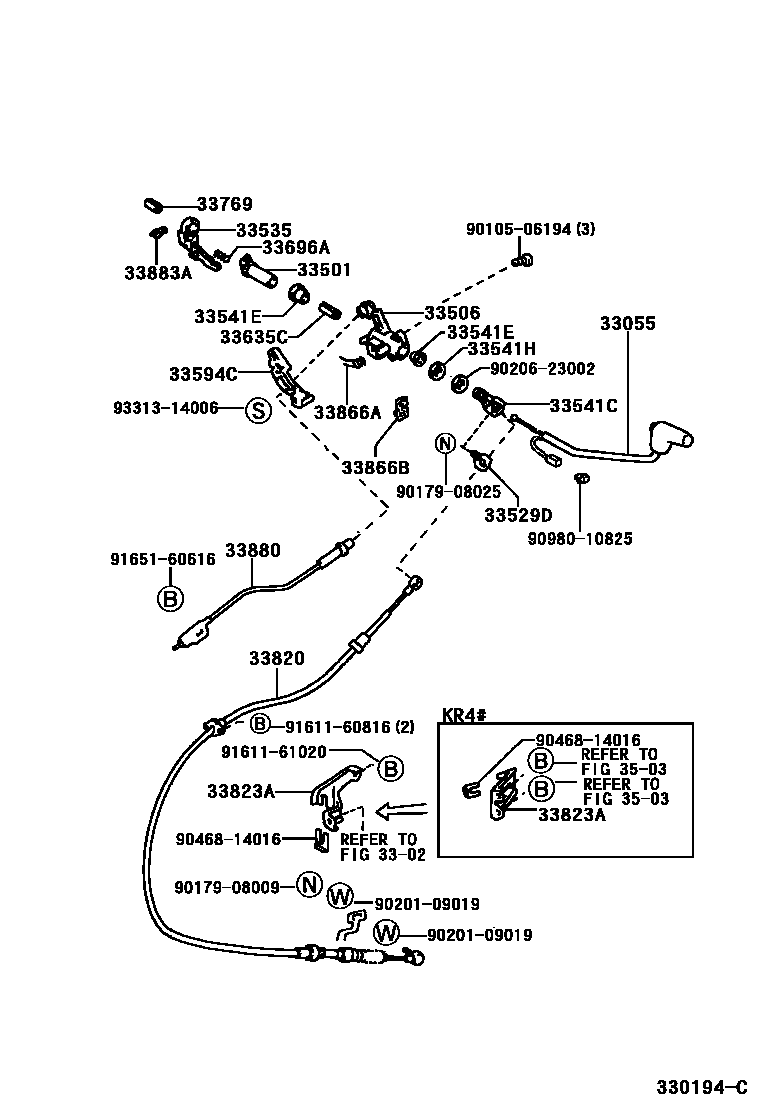

CONTROL SHAFT & CROSSSHAFT

0001 1 0002 1

3302

33055LEVER SUB-ASSY, COLUMN SHIFT

main33055-28200iCR4#,5#,KR4#,SR40,50..ATM199610-199812

main33055-28210iCR42,52,KR42..ATM199812-200401

sub33055-29025

main33055-28211iCR42,52..ATM200401-200407

33501SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT)

main33511-28130iCR4#,5#,KR4#,SR40,50..ATM199610-199812

33506RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR COLUMN SHIFT)

main33506-28200iCR4#,5#,KR4#,SR40,50..ATM199610-199812

33529DBOLT, SHIFT LEVER

main33529-28100iCR4#,5#,KR4#,SR40,50..ATM199610-199812

33535LEVER, CONTROL SELECT (FOR COLUMN SHIFT)

main33535-28070iCR4#,5#,KR4#,SR40,50..ATM199610-199812

33541CLEVER, SHIFT (FOR COLUMN SHIFT)

main33543-28060iCR4#,5#,KR4#,SR40,50..ATM199610-199812

33541EBUSH (FOR COLUMN SHIFT LEVER)

main90386-14014×2iKR42,52..ATM199812

main90386-22003×2iCR4#,5#,KR4#,SR40,50..ATM199610-199812

33541HSPACER (FOR COLUMN SHIFT)

main90560-22003iCR4#,5#,KR4#,SR40,50..ATM199610-199812

33594CPLATE, SHIFT LOCK

main33594-28020iCR4#,5#,KR4#,SR40,50..ATM199610-199812

33635CGUIDE, WIRE

main33635-28050iCR4#,5#,KR4#,SR40,50..ATM199610-199812

33696ASPRING, COMPRESSION

main90501-09136iCR4#,5#,KR4#,SR40,50..ATM199610-199812

33769SCREW, CONTROL ROD SET

main33769-28010iCR40,50,SR40,50..ATM199812-200111

33820CABLE ASSY, TRANSMISSION CONTROL (FOR COLUMN SHIFT)

main33820-28280iCR40,50,SR40,50..ATM199610-199812

main33820-28290iKR4#..ATM199611-199812

main33820-28300iCR41,51..ATM199611-199812

main33820-28310iCR40,50,SR40,50..ATM199812-200111

main33820-28320iKR42,52..ATM199812

main33820-28330iCR42,52..ATM199812-200407

33823ABRACKET, TRANSMISSION CONTROL CABLE

main33823-28180iCR42,52..ATM199812-200407

main33823-28190iKR4#..ATM199611-199812

33866ASPRING, SHIFT LOCK RELEASE

main33866-28010iCR4#,5#,KR4#,SR40,50..ATM199610-199812

main33866-28020iCR40,50,SR40,50..ATM199812-200111

33866BFIXED CLAMP

main82711-1A660iCR4#,5#,KR4#,SR40,50..ATM199610-199812

33880CABLE ASSY, PARKING LOCK (FOR COLUMN SHIFT)

main33880-28030iCR4#,5#,KR4#,SR40,50..ATM199610-199812

main33880-28040iCR40,50,SR40,50..ATM199812-200111

33883AHOLDER, CABLE END ROD

main33883-28020iCR4#,5#,KR4#,SR40,50..ATM199610-199812

3503

9010506194

main90105-06194

9017908009

main90179-08009

9017908025

main90179-08025

9020109019

main90201-09019

9020623002

main90206-23002

9046814016

main90468-14016

9098010825

main90980-10825

9161160816

main91611-60816

9161161020

main91611-61020

9165160616

main91651-60616

9331314006

main93313-14006

31 parts on this diagram · 2 diagrams in section
