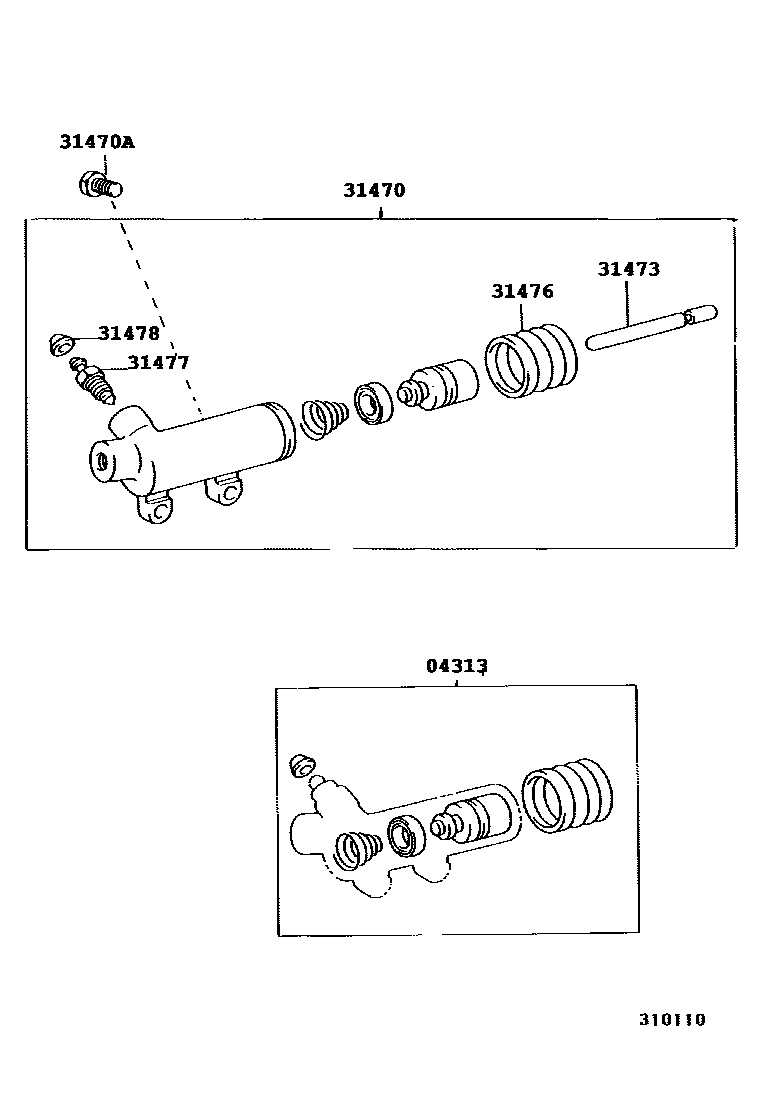

CLUTCH RELEASE CYLINDER

0001 1 0002 1 0003 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-17010iCR41..MTM199611-199812

main04313-28020iCR40,5#,SR40..MTM199610-200407

main04313-30130iKR4#..MTM199611-199812

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-28040iCR41..MTM199611-199812

main31470-28070iCR42..06S..MTM..IV5199610-200407

main31470-30230iKR42,52..MTM199611-199812

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-40825iCR52..MTM199812-200407

sub91611-B0825

main91611-60825iCR4#,5#,KR4#,SR40..MTM199610-199812

sub91611-B0825

main91611-B0825iCR42..06S..MTM..IV5199812-200407

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-22010iCR41..MTM199611-199812

main31473-32010iSR40..MTM199610-200407

main31473-35050iKR4#..MTM199611-199812

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iKR42,52..MTM199610-200407

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iCR4#,5#,KR4#,SR40..MTM199610-200407

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iCR4#,5#,KR4#,SR40..MTM199610-200407

7 parts on this diagram · 3 diagrams in section
