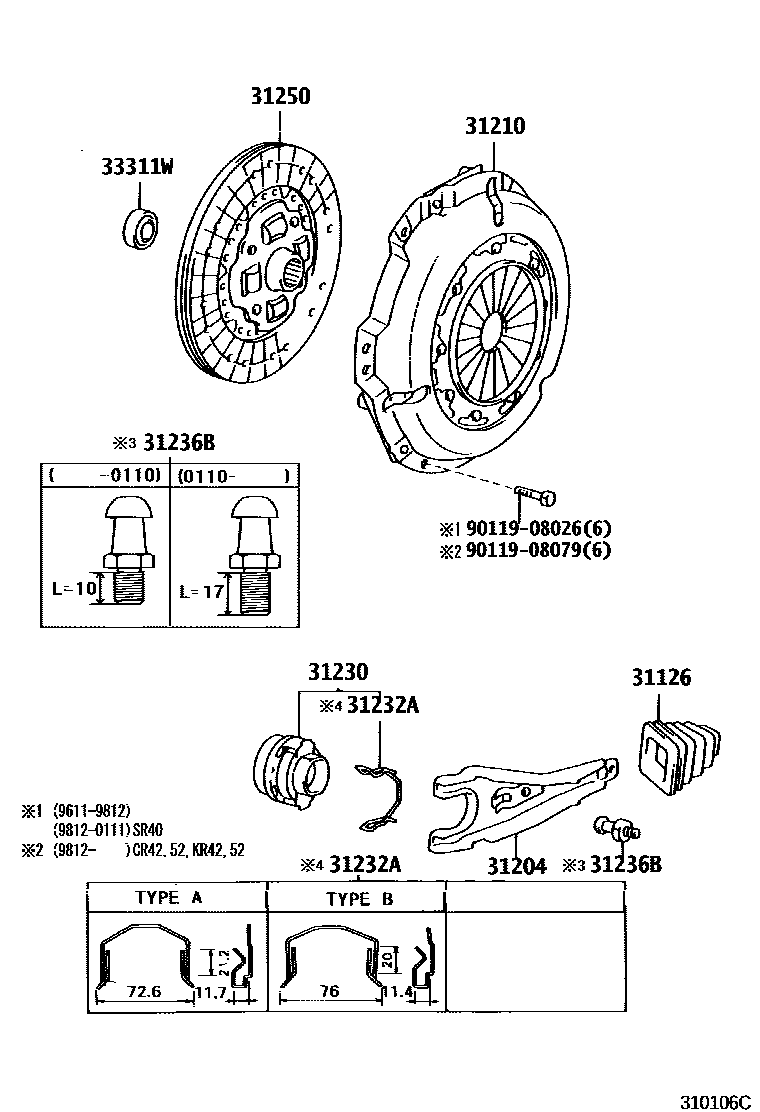

CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-20060iCR4#,5#,SR40..MTM199610-200407

main31126-20070iKR4#..MTM199611-199812

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-20071iCR4#,5#,SR40..MTM199610-200407

main31204-22040iKR4#..MTM199611-199812

31210COVER ASSY, CLUTCH

main31210-12180iKR41..MTM199611-199812

sub31210-12181

main31210-12191iKR42..MTM199611-200405

sub31210-12192

main31210-12192iKR42,52..MTM200406-200608

sub31210-52070

main31210-22100iSR40..MTM199611-200111

sub31210-22101

main31210-22120iCR41..MTM199611-199812

sub31210-22121

main31210-26100iCR52..MTM199812-200407

sub31210-27060

main31210-26110iCR51..MTM199611-199812

sub31210-26120

main31210-28040iCR40,50..MTM199610-199812

main31210-28050iCR42..MTM199812-200407

sub31210-28051

main31210-52070iKR42,52..MTM200609-200702

sub31210-52071

main31210-52071iKR42,52..MTM200703

sub31210-52180

31230BEARING ASSY, CLUTCH RELEASE

main31230-35090iCR4#,5#,KR4#,SR40..MTM199610-200111

sub31230-35091

main31230-35091iCR42,52,KR42,52..MTM199812-200708

31232ACLIP, RELEASE BEARING HUB

main31232-35020iCR42,52,KR42,52,SR40..MTM199812-200708

main31232-35020iCR4#,5#,KR4#,SR40..MTM199610-199812

main31232-35040iCR4#,5#,KR4#,SR40..MTM199610-199812

main31232-35040iCR42,52,KR42,52,SR40..MTM199812-200708

31236BSUPPORT, RELEASE FORK

main31236-26010iSR40..MTM200110-200407

main31236-30060iCR42,52,KR42,SR40..MTM199610-200110

31250DISC ASSY, CLUTCH

main31250-20117iCR41..MTM199611-199708

sub31250-20118

main31250-20118iCR41..MTM199708-200407

sub31250-28190

main31250-27120iKR42,52..MTM200604

sub31250-27121

main31250-28023iCR51..MTM199611-199812

sub31250-28024

main31250-28100iCR52..MTM199812-199906

sub31250-28101

main31250-28101iCR52..MTM199906-200407

sub31250-28102

main31250-28140iKR41..MTM199611-199702

sub31250-28141

main31250-28141iKR41..MTM199702-199812

sub31250-28142

main31250-28150iCR40,50..MTM199610-199812

main31250-28160iSR40..MTM199611-199708

sub31250-35370

main31250-28170iKR42..MTM199611-200501

sub31250-28171

main31250-28171iKR42,52..MTM200501-200603

sub31250-27120

main31250-35370iSR40..MTM199708-199811

sub31250-35371

main31250-35371iSR40..MTM199811-200111

sub31250-35372

33311WBEARING (FOR INPUT SHAFT)

main90363-12003iKR4#..MTM199611-199812

main90363-12004iCR4#,5#,SR40..MTM199610-200407

9011908026

main90119-08026

9011908079

main90119-08079

10 parts on this diagram · 1 diagram in section
