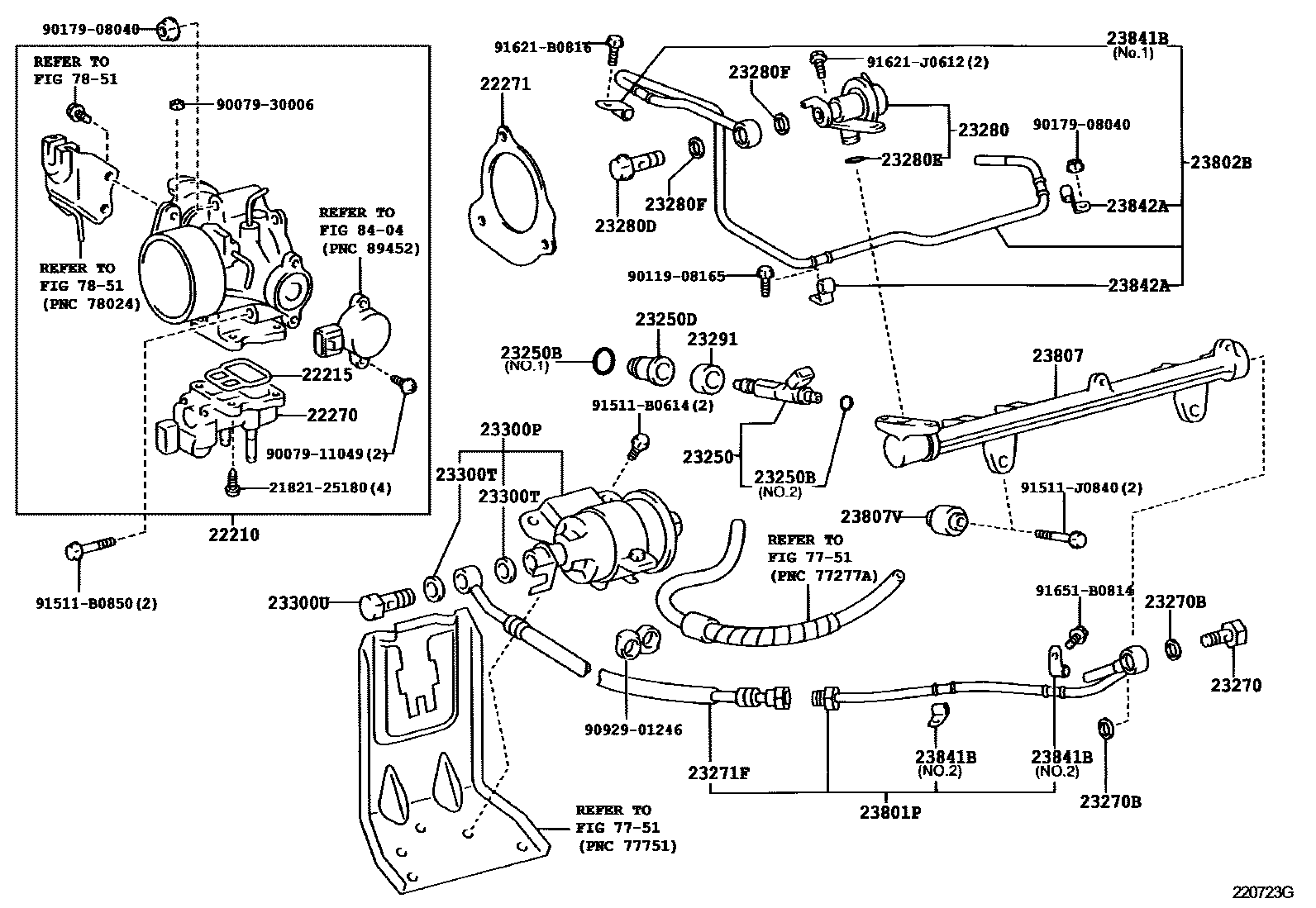

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1

22210BODY ASSY, THROTTLE

main22210-06030i7KE..KR42199812-200208

main22210-06060i7KE..KR42,52200208

main22210-7A640i3SFE..SR40,50199812-200111

22215GASKET, THROTTLE BODY COVER

main22215-0D080i7KE..KR42,52200208

main22215-74400i3SFE..SR40,50199610-199812

22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)

main22270-06020i7KE..KR42,52199812

main22270-13020i7KE..KR42,52199812

main22270-74270i3SFE..SR40,50199812-200111

22271GASKET, THROTTLE BODY

main22271-74070i3SFE..SR40,50199610-199812

23250INJECTOR ASSY, FUEL

main23209-13030×4i7KE..KR42,52199812

main23209-74170×4i3SFE..SR40,50199812-200111

23250BRING, O(FOR FUEL INJECTOR)

main90301-07001×4i3SFE..SR40,50199610-199812

main90301-07024×4i3SFE..SR40,50199812-200111

main90301-07037×4i7KE..KR42,52200607

main90301-19006×4i7KE..KR42,52199812

23250DSPACER(FOR FUEL INJECTOR)

main90561-10018×4i7KE..KR42,52199812

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23207-46010i3SFE..SR40,50199812-200111

sub23207-20011

main23270-50010i7KE..KR42,52199812

sub23270-50011

23270BGASKET(FOR PULSATION DAMPER HOSE)

main23279-74010×2i3SFE..SR40,50199812-200111

23271FHOSE, FUEL

main23271-13050i7KE..KR42,52199812

main23271-74610i3SFE..SR40,50199610-199812

main23271-74620i3SFE..SR40,50199610-199812

23280REGULATOR ASSY, FUEL PRESSURE

main23280-13020i7KE..KR42,52199812

main23280-74180i3SFE..SR40,50199610-199812

23280DBOLT, UNION(FOR FUEL PIPE OR HOSE SET)

main90401-08004i7KE..KR42,52199812

23280ERING, O(FOR FUEL PRESSURE REGULATOR)

main90301-07024i7KE..KR42,52199812-200607

main90301-07037i7KE..KR42,52200607

23280FGASKET(FOR FUEL PRESSURE REGULATOR)

main90430-08014×2i7KE..KR42,52199812

23291INSULATOR, INJECTOR VIBRATION

main23291-41010×4i3SFE..SR40,50199610-199812

23300PFILTER, FUEL(FOR EFI)

main23030-79035i3SFE..SR40,50199610-199812

23300TGASKET(FOR FUEL FILTER)

main90430-12026×2i3SFE..SR40,50199610-199812

23300UBOLT, UNION(FOR FUEL FILTER)

main90401-12029i3SFE..SR40,50199812-200111

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-13180i7KE..KR42,52199812

23802BPIPE SUB-ASSY, FUEL, NO.2

main23802-13010i7KE..KR42199812-199903

main23802-13011i7KE..KR42,52199903

main23802-74090i3SFE..SR40,50199610-199812

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-13010i7KE..KR42,52199812

main23814-74110i3SFE..SR40,50199610-199812

sub23814-74080

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main90561-08009×2i7KE..KR42,52199812

main90561-08053×2i3SFE..SR40,50199812-200111

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-13030×3i7KE..KR42199812-199903

main23847-13010i7KE..KR42,52199903

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-13020×2i7KE..KR42,52199812

7751

7851

8404

2182125180SCREW, 2ND THROTTLE VALVE SET

main21821-25180

9007911049

main90079-11049

9007930006

main90079-30006

9011908165

main90119-08165

9017908040

main90179-08040

9092901246

main90929-01246

91511B0614

main91511-B0614

91511B0850

main91511-B0850

91511J0840

main91511-J0840

91621B0816

main91621-B0816

91621J0612

main91621-J0612

91651B0814

main91651-B0814

39 parts on this diagram · 4 diagrams in section
