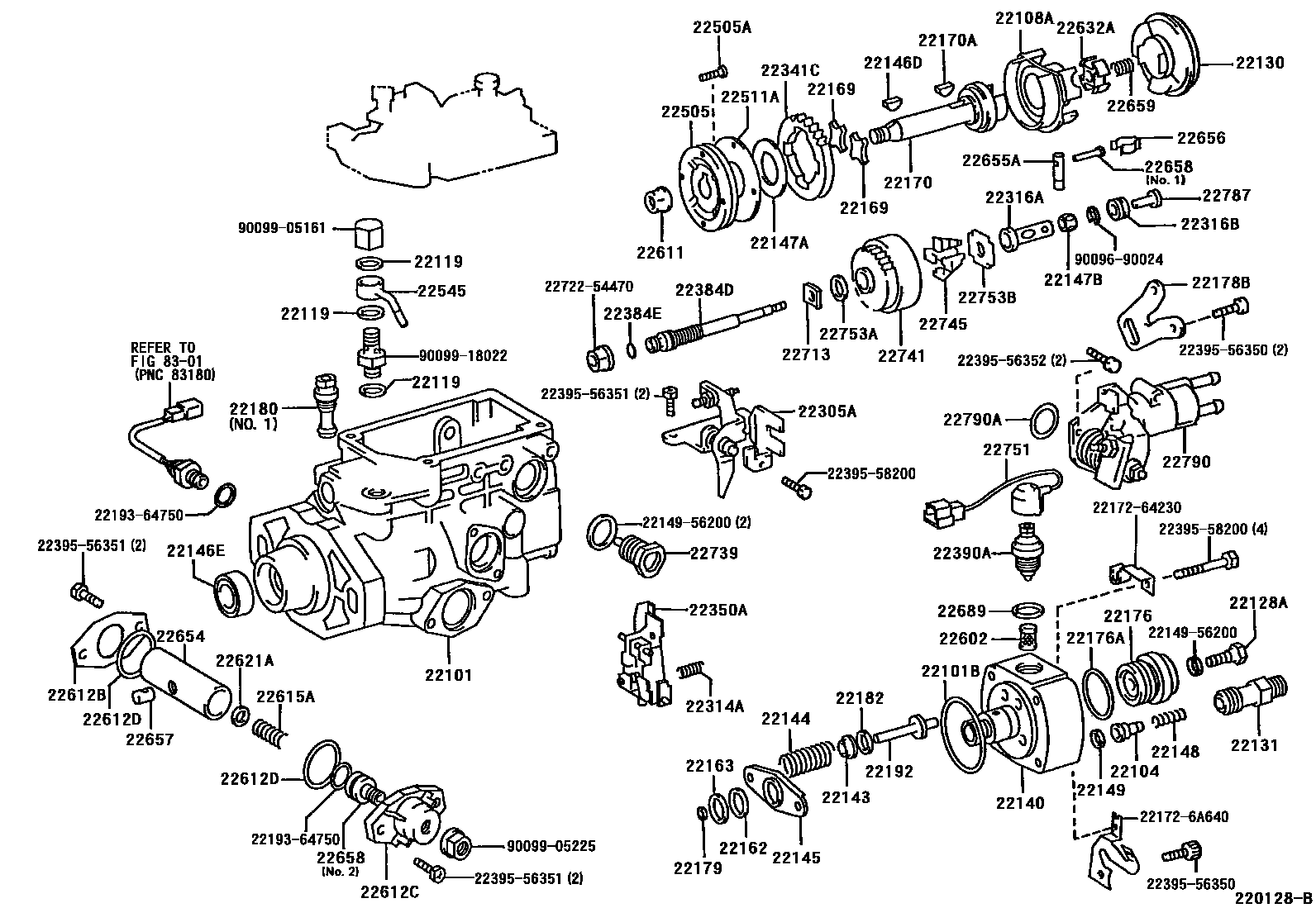

INJECTION PUMP BODY

0001 1 0002 1 0003 1 0004 1 0005 1

22101HOUSING SUB-ASSY, INJECTION PUMP

main22101-54260i3CT..CR40,50199610-199812

main22101-64010i2C..CR41,51..ATM199611-199812

main22101-64020i2C..CR41..ATM199611-199812

main22101-64270i2C..CR41,51..MTM199611-199812

22101BRING, O(FOR INJECTION PUMP HOUSING)

main90099-14053i2C,3CT..CR4#,5#199610-199812

22104VALVE SUB-ASSY, INJECTION PUMP DELIVERY

main22104-6A290i2C..CR41,51199611-199812

main22104-6A640i3CE..CR42..06S..MTM..IV5199812-200407

main22104-6D670i3CT..CR40,50199610-199812

sub22104-6D481

22108ARING SUB-ASSY, ROLLER

main22108-54180i2C,3CT..CR4#,5#199610-199812

22119WASHER, AIR BLEEDER NIPPLE

main90201-12109i3CE..CR42..06S..MTM..IV5199610-200407

22128ABOLT, DISTRIBUTIVE HEAD

main22128-54010i2C,3CT..CR4#,5#199610-199812

22130CAMPLATE SUB-ASSY, FACE

main22130-6A770i2C,3CT..CR4#,5#199610-199812

22131HOLDER, DELIVERY VALVE

main22190-6A680i2C,3CT..CR4#,5#199610-200407

22140HEAD SUB-ASSY, DISTRIBUTIVE PUMP

main22140-6D480i3CT..CR40,50199610-199812

main22140-6D500i2C..CR41,51199611-199812

22143SEAT, SPRING UPPER

main22143-54010i2C,3CT..CR4#,5#199610-199812

22144SPRING, PUMP PLUNGER

main22144-54190i2C,3CT..CR4#,5#199610-199812

22145SEAT, SPRING, LOWER

main22145-54010i2C,3CT..CR4#,5#199610-199812

22146DKEY(FOR DRIVE GEAR)

main90099-13018i2C,3CT..CR4#,5#199610-199812

22146ESEAL(FOR DRIVE SHAFT)

main22544-64740i2C,3CT..CR4#,5#199610-199812

22147AWASHER, DRIVE SHAFT

main22161-54010i2C,3CT..CR4#,5#199610-199812

22147BRING, GOVERNOR SLEEVE

main22147-54290i2C,3CT..CR4#,5#199610-199812

22148SPRING, DELIVERY VALVE

main22148-54010i2C,3CT..CR4#,5#199610-200407

22149GASKET, DELIVERY VALVE

main22149-56351i2C,3CT..CR4#,5#199610-200407

22162PLATE, PLUNGER UPPER

main22162-54010i2C,3CT..CR4#,5#199610-199812

22163PLATE, PLUNGER LOWER

main22163-54010i2C,3CT..CR4#,5#199610-199812

22169JOINT, RUBBER

main22169-54180i2C,3CT..CR4#,5#199610-199812

22170SHAFT SUB-ASSY, DRIVE

main22170-6A510i3CT..CR40,50199610-199812

22170AKEY(FOR DRIVE SHAFT)

main90099-13017i2C,3CT..CR4#,5#199610-199812

22176PLUG, DISTRIBUTIVE HEAD

main22176-54020i2C,3CT..CR4#,5#199610-199812

main22176-54640i3CE..CR42..06S..MTM..IV5199812-200407

22176ARING, O(FOR DISTRIBUTIVE HEAD PLUG)

main22193-54772i2C,3CT..CR4#,5#199610-200407

22178BBRACKET(FOR INJECTION PUMP ASSY)

main22178-64010i2C,3CT..CR4#,5#199610-200407

22179SHIM, PLUNGER ADJUSTING

main22179-54010i2C,3CT..CR4#,5#199610-199812

main22179-54011i2C,3CT..CR4#,5#199610-199812

main22179-54012i2C,3CT..CR4#,5#199610-199812

main22179-54013i2C,3CT..CR4#,5#199610-199812

main22179-54014i2C,3CT..CR4#,5#199610-199812

main22179-54015i2C,3CT..CR4#,5#199610-199812

main22179-54016i2C,3CT..CR4#,5#199610-199812

main22179-54017i2C,3CT..CR4#,5#199610-199812

main22179-54018i2C,3CT..CR4#,5#199610-199812

main22179-54019i2C,3CT..CR4#,5#199610-199812

main22179-54020i2C,3CT..CR4#,5#199610-199812

22180VALVE SUB-ASSY, REGULATOR

main22180-54010i2C..CR51..ATM;2C,3CT..CR4#,50199610-199812

main22180-54010i2C..CR51..MTM199611-199812

main22180-64851i2C..CR51..MTM199611-199812

22182PLATE, TAPPET ADJUSTING SHIM

main22182-54010i2C,3CT..CR4#,5#199610-199812

main22183-54010i2C,3CT..CR4#,5#199610-199812

main22184-54010i2C,3CT..CR4#,5#199610-199812

main22185-54010i2C,3CT..CR4#,5#199610-199812

main22186-54010i2C,3CT..CR4#,5#199610-199812

main22187-54010i2C,3CT..CR4#,5#199610-199812

main22188-54010i2C,3CT..CR4#,5#199610-199812

22192GUIDE SUB-ASSY, PLUNGER SPRING

main22192-54010i2C,3CT..CR4#,5#199610-199812

22305AIDLE-UP SUB-ASSY

main22305-6A490i2C..CR41,51199611-199812

main22305-6D480i3CT..CR40,50199610-199812

22314ASPRING, LEVER SUPPORT

main22314-54010i2C,3CT..CR4#,5#199610-199812

22316ASLEEVE, GOVERNOR

main22316-6E070i2C..CR41..ATM;2C,3CT..CR40,5#199610-199812

main22316-6E090i2C..CR41..MTM199611-199812

main22316-6E091i2C..CR41..MTM199611-199812

main22316-6E092i2C..CR41..MTM199611-199812

main22316-6E093i2C..CR41..MTM199611-199812

main22316-6E100i2C..CR51;2C..CR41..ATM199611-199812

main22316-6E101i2C..CR51;2C..CR41..ATM199611-199812

main22316-6E102i2C..CR51;2C..CR41..ATM199611-199812

main22316-6E103i2C..CR51;2C..CR41..ATM199611-199812

main22316-6E104i2C..CR51..MTM199611-199812

main22316-6E110i2C..CR41..ATM199611-199812

main22316-6E111i2C..CR41..ATM199611-199812

main22316-6E112i2C..CR41..ATM199611-199812

main22316-6E113i2C..CR41..ATM199611-199812

main22316-6E114i2C..CR41..ATM199611-199812

22316BBEARING, BALL(FOR GOVERNOR SLEEVE)

main90099-10148i2C,3CT..CR4#,5#199610-199812

22341CGEAR, GOVERNOR DRIVE

main22341-54010i2C,3CT..CR4#,5#199610-199812

22350AGOVERNOR ASSY, TORQUE CONTROL

main22350-6D480i3CT..CR40,50199610-199812

main22350-6D500i2C..CR41..MTM199611-199812

main22350-6D510i2C..CR51..MTM199611-199812

main22350-6D520i2C..CR41,51..ATM199611-199812

22384DSHAFT, GOVERNOR

main22380-54020i2C,3CT..CR4#,5#199610-199812

22384ERING, O(FOR GOVERNOR MAIN SHAFT)

main90099-14049i2C,3CT..CR4#,5#199610-199812

22390ASOLENOID ASSY, FUEL CUT

main22390-6A510i2C,3CT..CR4#,5#199610-199812

sub22390-6A511

22505PUMP SUB-ASSY, FUEL FEED

main22505-54010i2C,3CT..CR4#,5#199610-199812

22505ASCREW(FOR FUEL FEED PUMP)

main90099-00723i2C,3CT..CR4#,5#199610-199812

22511ACOVER, FEED PUMP

main22511-54020i2C,3CT..CR4#,5#199610-199812

22545NIPPLE, SWIVEL(FOR INJECTION PUMP INLET)

main22548-6A040i2C,3CT..CR4#,5#199610-199812

22602FILTER SUB-ASSY, FUEL INJECTION PUMP

main22602-56350i2C,3CT..CR4#,5#199610-199812

22611NUT, TIMER ROUND

main90099-05166i2C,3CT..CR4#,5#199610-199812

22612BCOVER, TIMER

main22612-56350i2C,3CT..CR4#,5#199610-199812

22612CCOVER, TIMER

main22612-17010i2C..CR51;2C..CR41..ATM199611-199812

main22612-17020i3CT..CR40,50199610-199812

22612DRING, O(FOR TIMER COVER)

main22193-17840i2C,3CT..CR4#,5#199610-199812

22615ASPRING, TIMER OUTER

main22615-17030i3CT..CR40,50199610-199812

main22615-18020i3CT..CR40,50199610-199812

main22615-6D150i2C..CR41,51199611-199812

22621AWASHER, TIMER ADJUSTING

main22625-17020i3CT..CR40,50199610-199812

main22625-54272i2C..CR41,51199611-199812

22632ACOUPLING, INJECTION PUMP

main22632-54010i2C,3CT..CR4#,5#199610-199812

22654PISTON, TIMER

main22582-6D481i3CT..CR40,50199610-199812

main22654-55130i2C..CR41,51199611-199812

22655APIN, TIMER SLIDE

main22655-54010i2C,3CT..CR4#,5#199610-199812

22656CLIP, TIMER

main22656-17840i3CT..CR40,50;2C..CR41,51..ATM199610-199812

main22656-17840i2C..CR41,51..MTM199611-199812

main22656-54490i3CT..CR40,50199610-199812

22657CLIP, TIMER

main22657-54010i2C,3CT..CR4#,5#199610-199812

22658STOPPER, TIMER

main22658-17010i2C..CR51;2C..CR41..ATM199611-199812

main22658-17020i3CT..CR40,50199610-199812

main22658-17840i2C,3CT..CR4#,5#199610-199812

22659SPRING, COUPLING

main22659-64150i2C,3CT..CR4#,5#199610-199812

22689WASHER(FOR SWIVEL NIPPLE)

main22689-56350i2C,3CT..CR4#,5#199610-199812

22713WASHER, GOVERNOR GEAR ADJUSTING

main22713-54010i2C,3CT..CR4#,5#199610-199812

main22714-54010i2C,3CT..CR4#,5#199610-199812

main22715-54010i2C,3CT..CR4#,5#199610-199812

main22716-54010i2C,3CT..CR4#,5#199610-199812

main22717-54010i2C,3CT..CR4#,5#199610-199812

22739BOLT, GOVERNOR LINK SUPPORT

main22739-54020i2C,3CT..CR4#,5#199610-199812

22741HOLDER SUB-ASSY, FLYWEIGHT

main22741-54020i2C,3CT..CR4#,5#199610-199812

22745FLYWEIGHT, DISTRIBUTIVE PUMP

main22745-54010i2C,3CT..CR4#,5#199610-199812

22751WIRE SUB-ASSY, FUEL CUT SOLENOID

main22751-54311i2C..CR41,51199611-199812

main22751-6A220i3CT..CR40,50;2C..CR41..ATM199610-199812

22753AWASHER, FLYWEIGHT, NO.1

main22753-54010i2C,3CT..CR4#,5#199610-199812

22753BWASHER, FLYWEIGHT, NO.2

main22753-54020i2C,3CT..CR4#,5#199610-199812

22787PLUG, GOVERNOR SLEEVE

main22787-54026i3CT..CR40,50199610-199812

main22787-54027i2C,3CT..CR4#,5#199610-199812

main22787-54028i3CT..CR40,50199610-199812

main22787-54029i3CT..CR40,50;2C..CR41..MTM199610-199812

main22787-54030i3CT..CR40,50199610-199812

main22787-54031i3CT..CR40,50;2C..CR41..MTM199610-199812

main22787-54032i3CT..CR40,50199610-199812

main22787-54033i3CT..CR40,50;2C..CR41..MTM199610-199812

main22787-64640i3CT..CR40,50;2C..CR41..MTM199610-199812

main22787-64641i2C,3CT..CR4#,5#199610-199812

main22787-64642i3CT..CR40,50199610-199812

main22787-64643i2C,3CT..CR4#,5#199610-199812

main22787-64661i2C..CR51;2C..CR41..ATM199611-199812

main22787-64663i2C..CR51;2C..CR41..ATM199611-199812

main22787-64665i2C..CR51;2C..CR41..ATM199611-199812

main22787-64667i2C..CR51;2C..CR41..ATM199611-199812

main22787-64680i3CT..CR40,50;2C..CR41..MTM199610-199812

22790COVER SUB-ASSY, TIMER

main22790-6D480i3CT..CR40,50199610-199812

main22790-6D500i2C..CR41,51..MTM199611-199812

main22790-6D520i2C..CR41,51..ATM199611-199812

22790ARING, O(FOR TIMER COVER)

main22193-17840i2C,3CT..CR4#,5#199610-199812

8301

2214956200GASKET, DELIVERY VALVE

main22149-56200

2217264230CLIP, CONNECTOR SUPPORT, SOLENOID

main22172-64230

221726A640CLIP, CONNECTOR SUPPORT, SOLENOID

main22172-6A640

2219364750RING, O(FOR LEVER CONNECTING PIN)

main22193-64750

2239556350BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)

main22395-56350

2239556351BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)

main22395-56351

2239556352BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)

main22395-56352

2239558200BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)

main22395-58200

2272254470NUT, GOVERNOR SHAFT ROCK

main22722-54470

9009690024

main90096-90024

9009905161

main90099-05161

9009905225

main90099-05225

9009918022

main90099-18022

82 parts on this diagram · 5 diagrams in section
