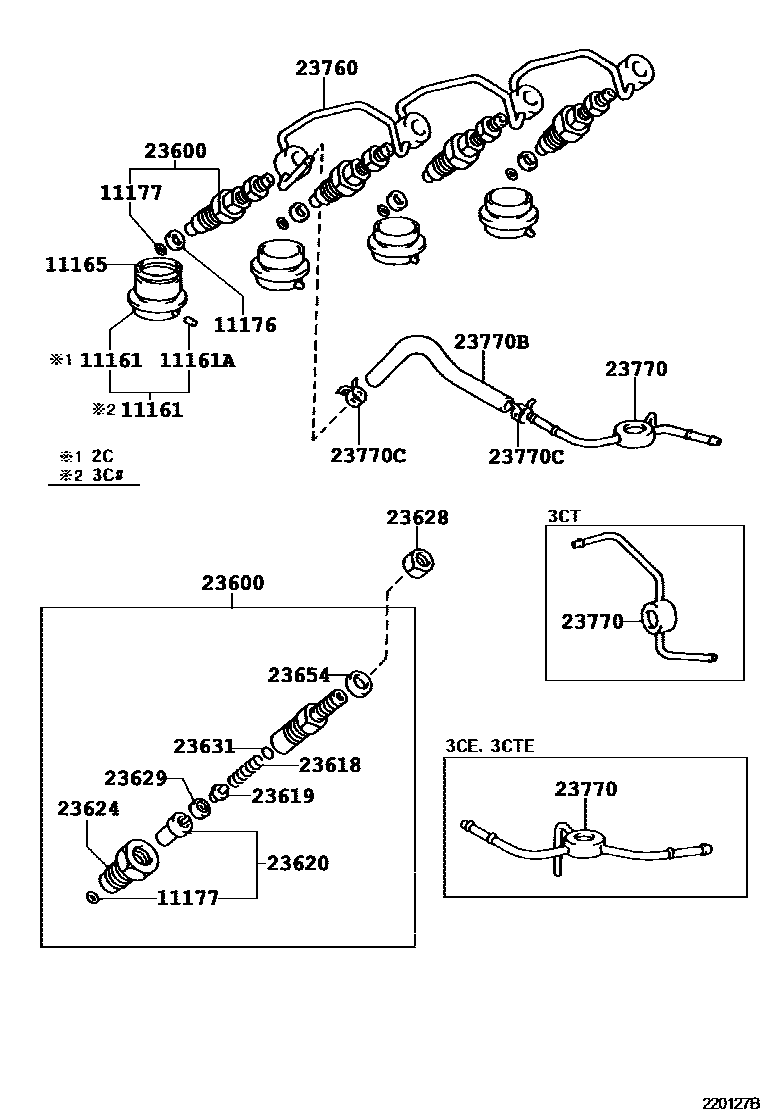

INJECTION NOZZLE

11161CHAMBER, COMBUSTION

main11106-64110i3CT..CR40,50199610-199705

sub11106-64111

main11106-64111i3CT..CR40,50199705-199812

main11106-64170i3CE..CR42..06S..MTM..IV5199812-200407

main11106-64180i3CTE..CR40,50199812-200111

main11161-64080i2C..CR41,51199611-199812

11161APIN, STRAIGHT(FOR COMBUSTION CHAMBER)

main90250-02046i2C,3CT..CR4#,5#199610-200407

11165SHIM(FOR COMBUSTION CHAMBER)

main11165-64011i2C..CR41,51199611-199812

main11165-64020i3CT..CR40,50199610-199708

sub11165-64021

main11165-64021i3CTE..CR40,50199708-200407

main11166-64011i2C..CR41,51199611-199812

main11166-64020i3CT..CR40,50199610-199708

sub11166-64021

main11166-64021i3CTE..CR40,50199708-200407

11176SEAT, INJECTION NOZZLE

main11176-64010i2C,3CT..CR4#,5#199610-199708

main11176-64020i2C,3CT..CR4#,5#199708-200407

11177GASKET, INJECTION NOZZLE SEAT

main11177-64010i2C,3CT..CR4#,5#199610-200407

23600HOLDER & NOZZLE SET, NOZZLE

main23600-19025i3CT..CR40,50199610-199812

main23600-69065i2C..CR41,51199611-199812

main23600-69125i3CE..CR42..06S..MTM..IV5199812-200407

main23600-69155i3CTE..CR40,50199812-200111

23618SPRING, NOZZLE HOLDER PRESSURE

main23618-54080i2C..CR41,51199611-199812

main23618-54090i3CTE..CR40,50199812-200111

main23618-54730i3CT..CR40,50199610-200407

23619PIN, NOZZLE HOLDER PRESSURE

main23619-64010i2C,3CT..CR4#,5#199610-200407

23620NOZZLE ASSY

main23620-69045i2C,3CT..CR4#,5#199610-199812

main23620-69085i3CE..CR42..06S..MTM..IV5199812-200407

main23620-69095i3CTE..CR40,50199812-200111

23624NUT, NOZZLE RETAINING

main23624-64041i2C,3CT..CR4#,5#199610-200407

main23624-64150i3CTE..CR40,50199812-200111

sub23624-64041

23628NUT(FOR RING PACKING SETTING)

main23628-64010i2C,3CT..CR4#,5#199610-200407

23629PIECE, DISTANCE(FOR NOZZLE)

main23629-54080i3CT..CR40,50199610-200407

main23629-64010i2C..CR41,51199611-199812

23631WASHER(FOR NOZZLE HOLDER PRESSURE SPRING)

main23631-64010i3CTE..CR40,50199610-200407

main23631-64011i2C,3CT..CR4#,5#199610-200407

main23631-64012i3CE..CR42..06S..MTM..IV5199610-200407

main23631-64013i3CE..CR42..06S..MTM..IV5199610-200407

main23631-64014i2C,3CT..CR4#,5#199610-200407

main23631-64015i3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5199610-200407

main23631-64016i2C,3CT..CR4#,5#199610-200407

main23631-64017i3CTE..CR40,50199610-200407

main23631-64018i3CTE..CR40,50199610-200407

main23631-64019i3CE..CR42..06S..MTM..IV5199610-200407

main23632-64010i2C,3CT..CR4#,5#199610-200407

main23632-64011i3CTE..CR40,50199610-200407

main23632-64012i3CTE..CR40,50199610-200407

main23632-64013i2C,3CT..CR4#,5#199610-200407

main23632-64014i3CE..CR42..06S..MTM..IV5199610-200407

main23632-64015i3CTE..CR40,50199610-200407

main23632-64016i3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5199610-200407

main23632-64017i2C,3CT..CR4#,5#199610-200407

main23632-64018i3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5199610-200407

main23632-64019i2C,3CT..CR4#,5#199610-200407

main23633-64010i3CTE..CR40,50199610-200407

main23633-64011i3CE..CR42..06S..MTM..IV5199610-200407

main23633-64012i3CTE..CR40,50199610-200407

main23633-64013i2C,3CT..CR4#,5#199610-200407

main23633-64014i3CTE..CR40,50199610-200407

main23633-64015i2C,3CT..CR4#,5#199610-200407

main23633-64016i3CTE..CR40,50199610-200407

main23633-64017i3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5199610-200407

main23633-64018i3CTE..CR40,50199610-200407

main23633-64019i2C,3CT..CR4#,5#199610-200407

main23634-64010i3CE..CR42..06S..MTM..IV5199610-200407

main23634-64011i3CE..CR42..06S..MTM..IV5199610-200407

main23634-64012i3CE..CR42..06S..MTM..IV5199610-200407

main23634-64013i2C,3CT..CR4#,5#199610-200407

main23634-64014i2C,3CT..CR4#,5#199610-200407

main23634-64015i3CTE..CR40,50199610-200407

main23634-64016i3CE..CR42..06S..MTM..IV5199610-200407

main23634-64017i3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5199610-200407

main23634-64018i3CE..CR42..06S..MTM..IV5199610-200407

main23634-64019i3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5199610-200407

main23635-64010i3CE..CR42..06S..MTM..IV5199610-200407

main23635-64011i3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5199610-200407

main23635-64012i3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5199610-200407

23654WASHER(FOR RING PACKING)

main23654-64010i3CE..CR42..06S..MTM..IV5199610-200407

23760PIPE ASSY, NOZZLE LEAKAGE

main23761-64050i2C,3CT..CR4#,5#199610-199812

main23761-64090i3CTE..CR40,50199812-200407

23770PIPE ASSY, NOZZLE LEAKAGE, NO.2

main23764-64022i2C..CR41,51199611-199812

main23764-64050i3CT..CR40,50199610-199812

main23764-64120i3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5199812-200407

main23764-64130i3CTE..CR40,50199812-200111

23770BHOSE, FUEL

main23271-64290i3CTE..CR40,50199812-200407

main95333-04010i2C,3CT..CR4#,5#199610-199812

23770CCLAMP OR CLIP(FOR FUEL HOSE SET)

main90467-10049i2C,3CT..CR4#,5#199610-199812

sub90467-10149

main90467-10149i3CTE..CR40,50199812-200407

18 parts on this diagram · 1 diagram in section
