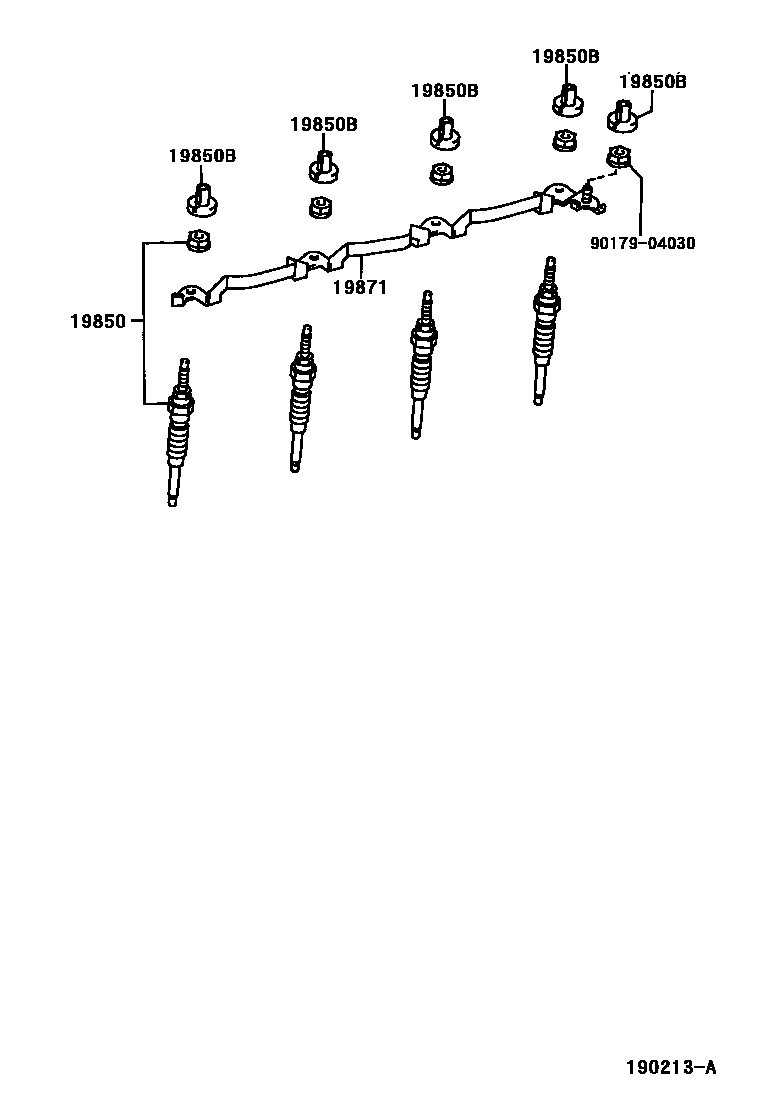

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1 0003 1 0004 1

19850PLUG ASSY, GLOW

main19850-64050i3CE..CR42..06S..MTM..IV5199611-200407

main19850-67030i3CT..CR40,50199610-200111

19850BGROMMET, SCREW(FOR GLOW PLUG)

main90189-04024i2C,3CT..CR4#,5#199610-200407

19871CONNECTOR, GLOW PLUG NO.1

main19871-64030i2C,3CT..CR4#,5#199610-200407

9017904030

main90179-04030

4 parts on this diagram · 4 diagrams in section
