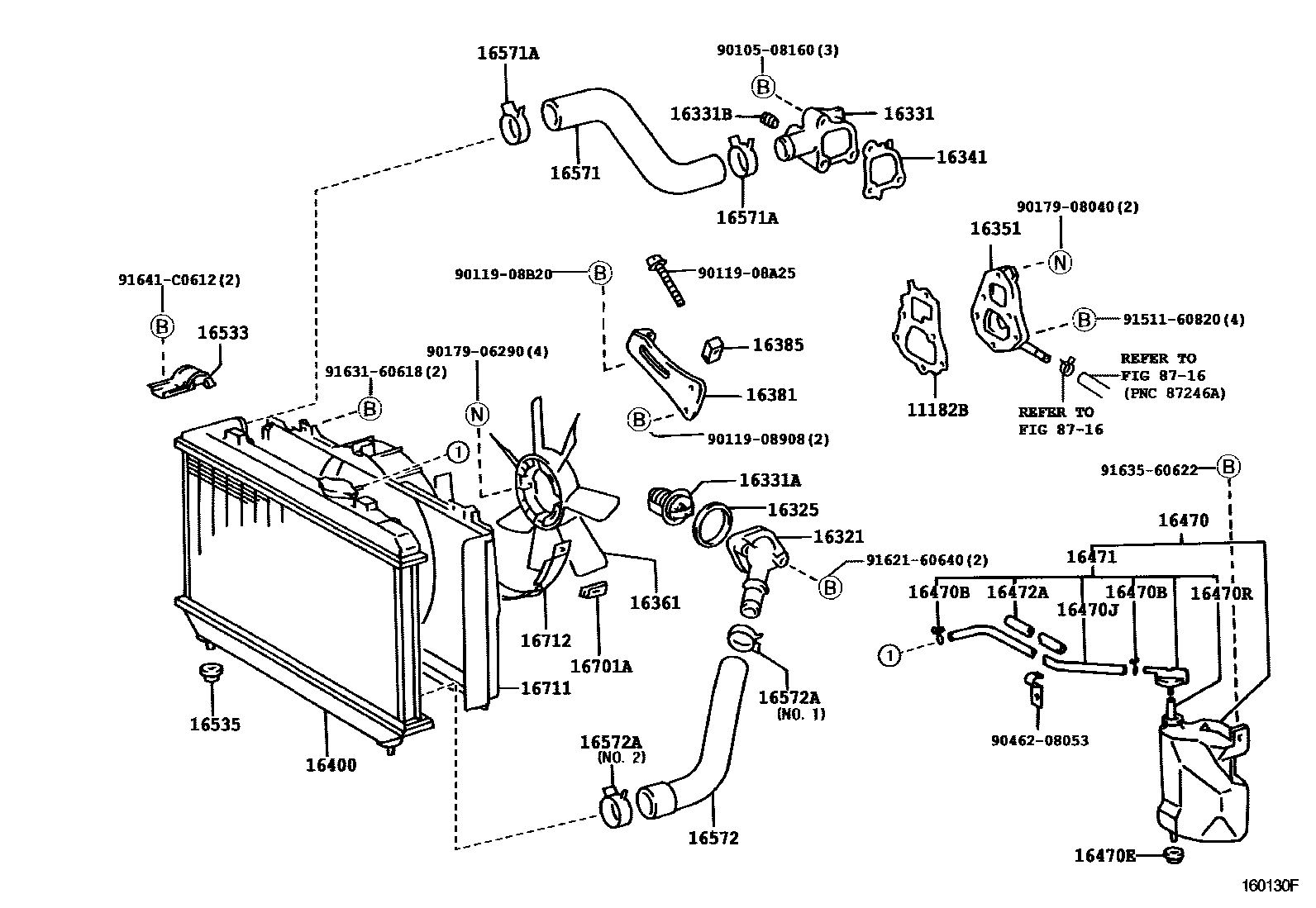

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1

11182BGASKET, CYLINDER HEAD REAR PLATE

main11182-64021i3CTE..CR40,50199812-200111

16321INLET, WATER

main16321-64080i3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5199812-200407

main16321-74050i3SFE..SR40,50199610-199812

16325GASKET, WATER INLET HOUSING, NO.1

main16325-63011i3CE..CR42..06S..MTM..IV5199812-200208

16331OUTLET, WATER

main16304-74240i3SFE..SR40,50199812-200111

main16331-13090i5K..KR41199612-199812

main16331-13100i7K..KR42199612-199812

main16331-64130i2C,3CT..CR4#,5#199610-199812

16331ATHERMOSTAT

main90916-03046i3CE..CR42..06S..MTM..IV5199812-200208

main90916-03078i5K,7K..KR4#199611-199812

main90916-03083i5K,7K..KR4#199611-199812

main90916-03090i3SFE..SR40,50199812-200111

16331BPLUG(FOR WATER OUTLET)

main90345-53030i2C,3CT..CR4#,5#199610-199812

16341GASKET, WATER OUTLET

main16341-13040i5K..KR41199611-199812

main16341-35010i7KE..KR42,52199812

main16341-64021i3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5199812-200407

main16341-64030i2C,3CT..CR4#,5#199705-199709

main16341-74020i3SFE..SR40,50199610-199812

16351OUTLET, WATER BY-PASS

main16351-64010i2C,3CT..CR4#,5#199610-199812

main16351-64020i3CE..CR42..06S..MTM..IV5199812-200208

16361FAN

main16361-38010i7KE..KR42,52199812

main16361-46050i3SFE..SR40,50..07S,08S199610-199812

main16361-56070i3SFE..SR40,50199610-199812

main16361-67020i3CTE..CR40,50199812-200111

main16361-74150i3SFE..SR40,50..07S,08S199812-200111

16381BAR, FAN BELT ADJUSTING

main16381-13060i7K..KR42199611-199812

main16381-13061i7KE..KR42,52200606-200612

main16381-13062i7KE..KR42,52200612

main16381-24011i5K..KR41199611-199812

main16381-64110i3CTE..CR40,50199812-200111

main16381-64140i3CTE..CR40,50199812-200111

16385SLIDER, FAN BELT ADJUSTING

main16385-64030i2C,3CT..CR4#,5#199610-199812

16400RADIATOR ASSY

main16400-13600i5K..KR41..ATM199611-199812

main16400-13610i7K..KR42..ATM199611-199812

main16400-6A120i3CT..CR40,50..MTM199610-199812

main16400-6A130i3CT..CR40,50..ATM199610-199812

main16400-6A140i2C..CR41,51..MTM199611-199812

main16400-6A150i2C..CR41,51..ATM199611-199812

main16400-6A190i3CTE..CR40,50199812-200111

main16400-6A220i3CE..CR52..MTM;3CE..CR42..06S..MTM..CBU;3CE..CR42..(03S,05S)..MTM199812-200301

main16400-6A221i3CE..CR42,52..MTM200301-200407

main16400-6A230i3CE..CR42,52..ATM199812-200301

main16400-6A231i3CE..CR42,52..ATM200301-200407

main16400-7A380i7KE..KR42,52..MTM199812

sub16400-7A510

main16400-7A390i3SFE..SR40,50..ATM199610-199812

main16400-7A660i7KE..KR52..ATM200412

16470TANK ASSY, RADIATOR RESERVE

main16470-64220i3SFE..SR40,50199610-199812

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085×2i3SFE..SR40,50199610-199812

16470EGROMMET, RADIATOR RESERVE TANK HOSE

main90480-20014i3SFE..SR40,50199610-199812

16470JHOSE, NO.3(FOR RADIATOR RESERVE TANK)

main90099-33534i3SFE..SR40,50199610-199812

16470RHOSE, NO.2(FOR RADIATOR RESERVE TANK)

main90445-12078i3SFE..SR40,50199610-199812

16471CAP SUB-ASSY, RESERVE TANK

main16471-64060i3SFE..SR40,50199610-199812

16472HOSE, BREATHER

main90445-12078i3CTE..CR40,50199812-200111

16472APROTECTOR, HOSE

main16479-64220i3SFE..SR40,50199610-199812

16533SUPPORT, RADIATOR, UPPER

main16505-64010×2i3SFE..SR40,50199610-199812

16535SUPPORT, RADIATOR, LOWER

main90480-40016×2i3SFE..SR40,50199610-199812

16571HOSE, RADIATOR, INLET

main16571-13290i5K,7K..KR4#199611-199812

main16571-64270i3CT..CR40,50199610-199612

main16571-64271i3CTE..CR40,50199812-200111

main16571-64290i3CE..CR42..06S..MTM..IV5199812-200208

main16571-74410i3SFE..SR40,50199610-199812

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90466-30001i7KE..KR42,52200209

main90467-31001i7KE..KR42199812-199903

main90467-31003i7KE..KR42199904-200208

main90467-34001i5K,7K..KR4#199611-199812

sub90467-33003

main90467-34004i7KE..KR42,52199812

main90467-41002×2i3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5199812-200407

sub90466-41008

main90467-41007×2i3CT..CR40,50199811-199812

main90467-42001×2i2C,3CT..CR4#,5#199610-199811

16572HOSE, RADIATOR, OUTLET

main16572-13280i5K,7K..KR4#199611-199812

main16572-13290i7KE..KR42,52199812

main16572-64280i3CTE..CR40,50199812-200111

main16572-74310i3SFE..SR40,50199610-199812

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90466-38001i7KE..KR42,52199812-200510

main90466-39001i7KE..KR42,52200511

sub90466-41006

main90467-34001×2i3SFE..SR40,50199610-199812

sub90467-33003

main90467-34004×2i3SFE..SR40,50199812-200111

main90467-37001i2C,3CT..CR4#,5#199610-199812

sub90467-37003

main90467-37005i7KE..KR42,52199812

main90467-41002i3CTE..CR40,50199812-200111

sub90466-41008

main90467-41007i3CT..CR40,50199811-199812

main90467-42001i2C,3CT..CR4#,5#199610-199811

16701ACLIP(FOR FAN SHROUD)

main90468-06013×2i7KE..KR42,52199812

16711SHROUD, FAN

main16711-13350i5K,7K..KR4#199611-199812

main16711-13360i7KE..KR42,52199812

main16711-64440i2C,3CT..CR4#,5#199610-199812

main16711-64490i3CTE..CR40,50199812-200111

main16711-74640i3SFE..SR40,50199610-199812

main16711-74730i3SFE..SR40,50..07S,08S199812-200111

16712SHROUD, FAN, NO.2

main16712-13150i7KE..KR42,52199812

main16712-64190i2C,3CT..CR4#,5#199610-199812

main16712-64210i3CTE..CR40,50199812-200111

main16712-74020i3SFE..SR40,50199610-199812

8716

9010508160

main90105-08160

9011908908

main90119-08908

9011908A25

main90119-08A25

9011908B20

main90119-08B20

9017906290

main90179-06290

9017908040

main90179-08040

9046208053

main90462-08053

9151160820

main91511-60820

9162160640

main91621-60640

9163160618

main91631-60618

9163560622

main91635-60622

91641C0612

main91641-C0612

42 parts on this diagram · 12 diagrams in section
