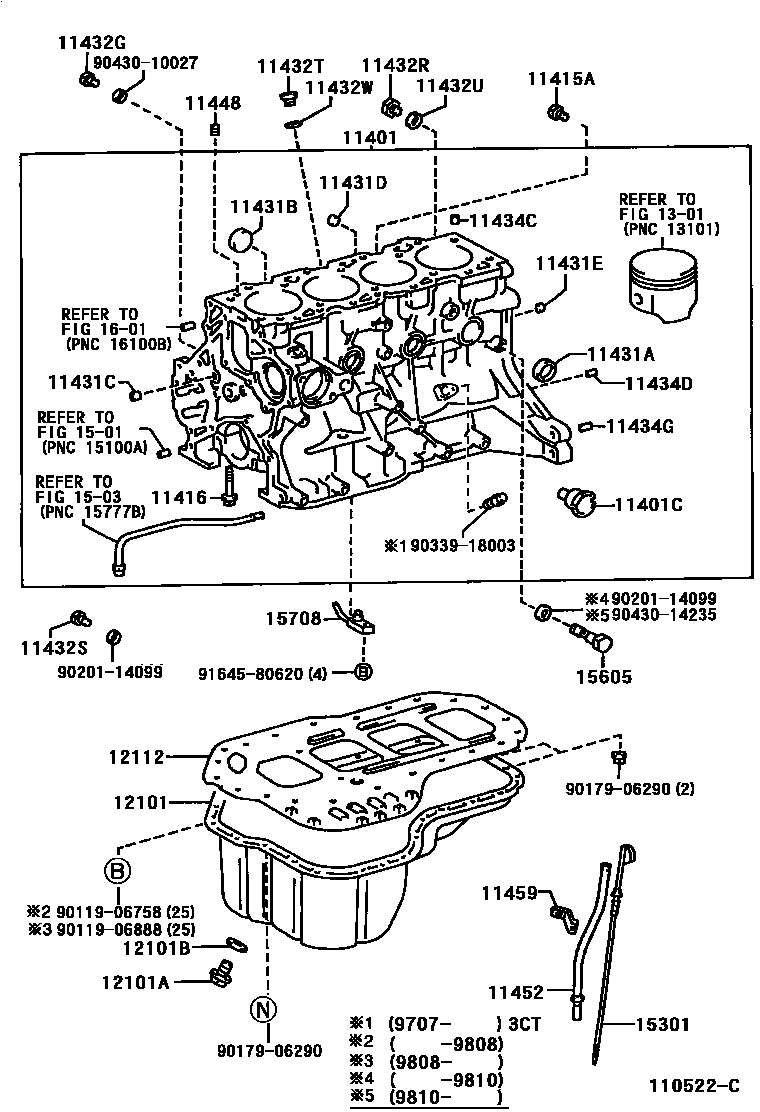

CYLINDER BLOCK

0001 1 0002 1 0003 1 0004 1 0005 1

11401BLOCK SUB-ASSY, CYLINDER

main11401-09071i7K..KR42199611-199702

sub11401-09072

main11401-09072i7K..KR42199702-199812

main11401-09160i7KE..KR42,52199812-200708

main11401-19336i5K..KR41199611-199812

main11401-69626i2C..CR41,51199611-199705

sub11401-69627

sub11115-64170

main11401-69627i2C..CR41,51199705-199812

sub11401-69628

sub11381-64020

sub11701-27011

sub15703-27010

main11401-69657i3CT..CR40,50199610-199812

sub11401-69658

sub11381-64020

sub11701-27011

sub15703-27010

main11401-69845i3CTE..CR40,50199812-199908

sub11401-69846

main11401-69846i3CTE..CR40,50199908-200111

main11401-69855i3CE..CR42,52199812-199908

sub11401-69856

main11401-69856i3CE..CR42,52199908-200407

main11401-79835i3SFE..SR40,50199610-200111

sub11401-80748

11401CFLANGE(FOR WATER BY-PASS)

main16353-64011i3CTE..CR40,50199610-200407

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09075i3CTE..CR40,50199812-200407

sub90910-09129

main90910-09091i5K,7K..KR4#199611-199811

main90910-09107i7K..KR42199805-200111

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90345-52001i3SFE..SR40,50199610-199805

main90345-52003i2C,3CT..CR4#,5#199610-199812

main90910-09087i3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5199611-200407

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90105-10028i3SFE..SR40,50199610-200111

main90910-02019i5K,7K..KR4#199611-199812

main90910-02061i2C,3CT..CR4#,5#199610-199812

main90910-02135i3CE..CR42..06S..MTM..IV5199812-200407

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main90331-47025i7KE..KR42,52199611-199812

main96411-43500i3SFE..SR40,50199610-200111

main96411-63500i2C..CR41,51199703-200407

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main96411-43000i2C,3CT..CR4#,5#199610-199707

main96411-44000i3SFE..SR40,50199610-200111

main96411-63000i2C..CR41,51199703-200407

main96411-64500i7KE..KR42,52199611-199812

11431CPLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)

main96411-41800i3CTE..CR40,50199610-200407

main96411-63500i5K..KR41199611-199812

11431DPLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)

main96411-41800i2C,3CT..CR4#,5#199610-200208

11431EPLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)

main96411-41800i3CTE..CR40,50199610-200208

main96412-01800i5K,7K..KR4#199611-199812

11432GPLUG, W/HEAD STRAIGHT SCREW, NO.5

main90341-10002i3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5199610-200407

11432RPLUG, W/HEAD STRAIGHT SCREW, NO.1(FOR CYLINDER BLOCK)

main90341-18006i2C,3CT..CR4#,5#199610-200407

11432SPLUG, W/HEAD STRAIGHT SCREW, NO.2(FOR CYLINDER BLOCK)

main90341-14032i2C,3CT..CR4#,5#199610-200407

11432TPLUG, W/HEAD STRAIGHT SCREW, NO.3(FOR CYLINDER BLOCK)

main90341-22001i3CTE..CR40,50199610-200407

11432UGASKET, STRAIGHT SCREW PLUG NO.1(FOR CYLINDER BLOCK)

main90430-18001i2C,3CT..CR4#,5#199610-200407

11432WGASKET, STRAIGHT SCREW PLUG NO.3(FOR CYLINDER BLOCK)

main90430-22003i2C,3CT..CR4#,5#199610-200407

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90250-08120i5K,7K..KR4#199611-199812

main90253-14002i2C,3CT..CR4#,5#199610-199708

main90253-14004i3CTE..CR40,50199708-200407

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-06003i3SFE..SR40,50199610-200111

main90250-06068i3CTE..CR40,50199610-200407

main90250-08120i5K,7K..KR4#199611-199812

11434GPIN, STRAIGHT(FOR END PLATE)

main90250-10113i2C,3CT..CR4#,5#199610-200407

11448ORIFICE, CYLINDER BLOCK OIL

main11448-64020i3CTE..CR40,50199610-200407

11452GUIDE, OIL LEVEL GAGE

main11452-13010i5K..KR41199611-199812

main11452-13050i7KE..KR42,52199611-199812

main11452-64021i2C,3CT..CR4#,5#199610-199812

main11452-64060i3CE..CR42..06S..MTM..IV5199812-200407

main11452-74080i3SFE..SR40,50199610-200111

11459SUPPORT, OIL LEVEL GAGE GUIDE

main11459-64010i3CTE..CR40,50199812-200407

main90929-01026i2C,3CT..CR4#,5#199610-199812

12101PAN SUB-ASSY, OIL

main12101-06010i7K..KR42199611-199812

sub12101-06011

sub51441-28090

main12101-06011i7KE..KR42199812-200412

sub12101-06012

sub15104-13030

sub15149-74020

main12101-06030i7KE..KR42,52200412

main12101-19018i5K..KR41199611-199812

main12101-64180i2C,3CT..CR4#,5#199610-199808

sub12101-64181

main12101-64181i2C,3CT..CR4#,5#199808-199810

sub12101-64182

main12101-64182i3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5199810-200407

main12101-74140i3SFE..SR40,50199610-200111

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i7KE..KR42,52199611-200407

main90341-12026i2C,3CT..CR4#,5#199610-200111

sub90341-12012

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i2C,3CT..CR4#,5#199610-200407

12112PAN, OIL NO.2

main12112-64080i2C,3CT..CR4#,5#199610-200407

main12112-64101i3CTE..CR40,50199812-200111

1301

1501

1503

15301GAGE SUB-ASSY, OIL LEVEL

main15301-13011i5K..KR41199611-199812

main15301-13040i7KE..KR42,52199611-199812

main15301-64100i2C,3CT..CR4#,5#199610-199705

sub15301-64101

main15301-64101i2C,3CT..CR4#,5#199705-199812

main15301-64120i3CE..CR42..06S..MTM..IV5199812-200407

main15301-74130i3SFE..SR40,50199610-200111

15605VALVE SUB-ASSY, OIL CHECK

main15605-64020i2C,3CT..CR4#,5#199610-199810

main15703-27010i2C,3CT..CR4#,5#199810-200407

15708NOZZLE SUB-ASSY, OIL, NO.1

main15790-64021i2C,3CT..CR4#,5#199610-200205

sub15790-64030

sub90110-06034

main15790-64030i3CE..CR42..06S..MTM..IV5200205-200407

1601

9011906758

main90119-06758

9011906888

main90119-06888

9017906290

main90179-06290

9020114099

main90201-14099

9033918003

main90339-18003

9043010027

main90430-10027

9043014235

main90430-14235

9164580620

main91645-80620

41 parts on this diagram · 5 diagrams in section
