STANDARD TOOL

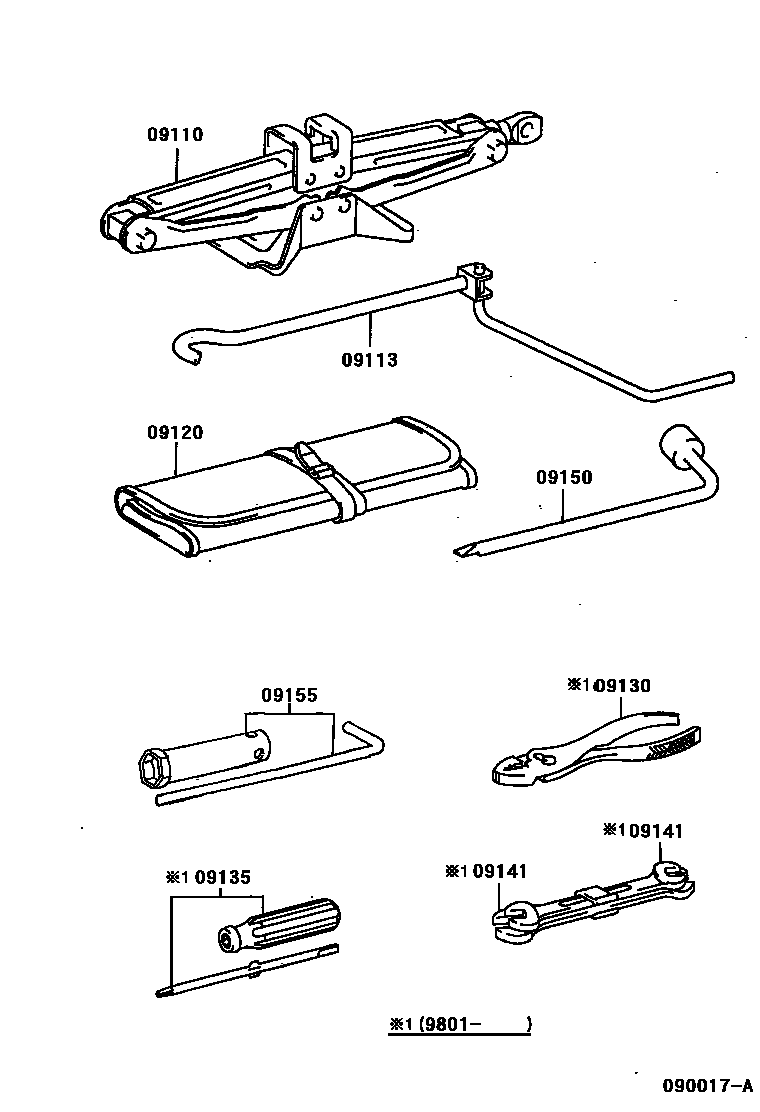

Parts diagram

09110JACK ASSY

main09110-28090i199610-199812

09113HANDLE, JACK

main09113-44010i199610-200407

09120BAG, TOOL

main09120-30030i199610-200407

09130PLIERS

main99913-11500i199801-200111

09135DRIVER, SCREW

main99915-10700i199801-200111

09141SPANNER

main99914-10810i199801-200111

main99914-11214i199801-200111

09150WRENCH, HUB NUT BOX

main09150-40010i199610-200407

09155WRENCH, SPARK PLUG

main09155-44010i199611-199812

main09155-74010i199710-200111

8 parts on this diagram · 1 diagram in section
