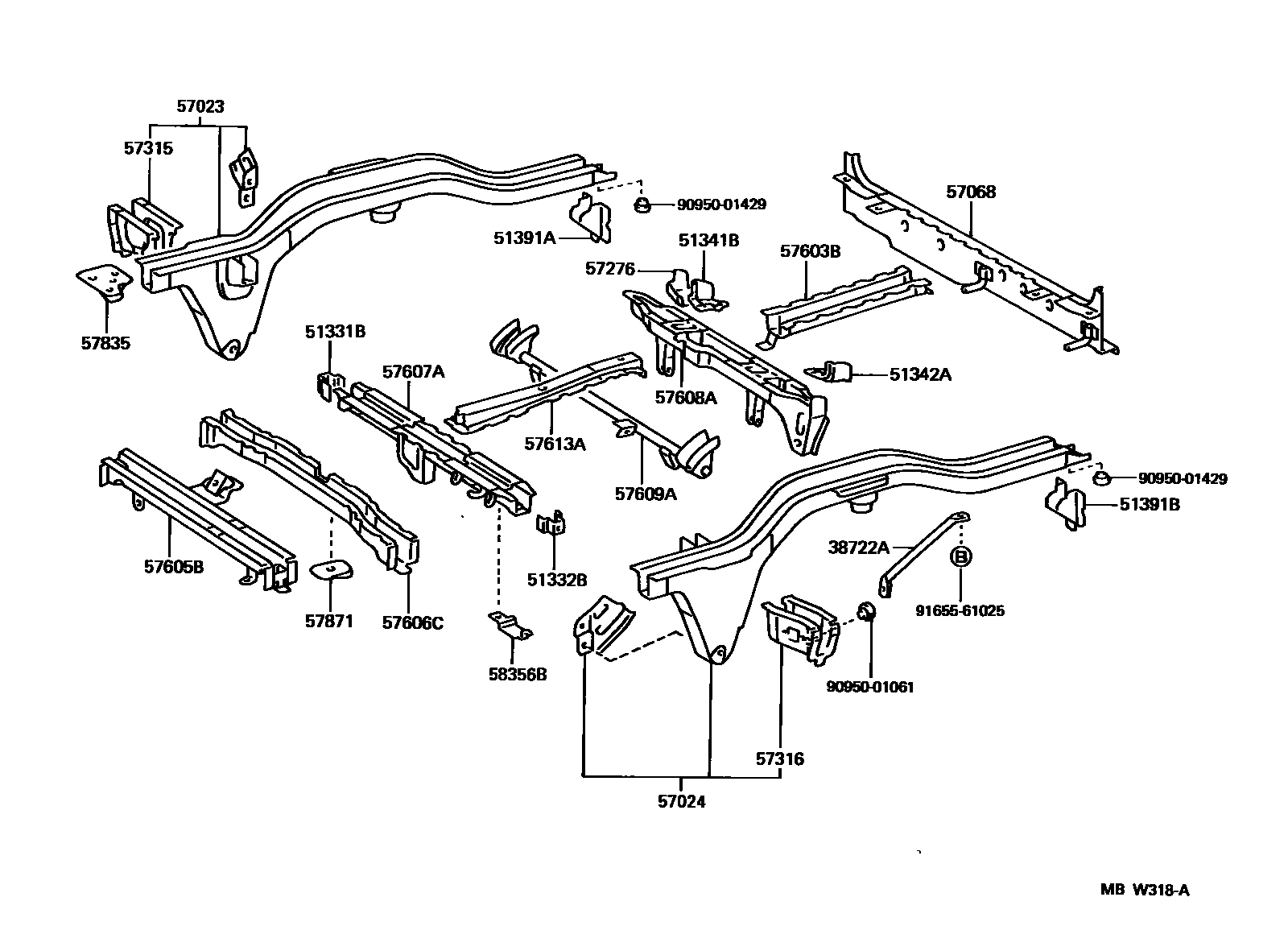

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

38722APIPE, TENSION ARM

main38722-87001iCR30,31..MTM199201-199610

51331BGUSSET, FRAME NO.3 CROSSMEMBER, RH

main51331-28010iCR3#,YR30199201-199610

51332BGUSSET, FRAME NO.3 CROSSMEMBER, LH

main51332-28010iCR3#,YR30199201-199610

51341BGUSSET, FRAME NO.4 CROSSMEMBER, RH

main51341-28010iCR21,22,30,31,YR21,30199201-199610

51342AGUSSET, FRAME NO.4 CROSSMEMBER, LH

main51342-87003iCR21,22,30,31,YR21,30199201-199610

51391AGUSSET, FRAME REAR CROSSMEMBER, RH

main51391-87002iCR21,22,30,31,YR21,30199201-199610

51391BGUSSET, FRAME REAR CROSSMEMBER, LH

main51391-87002iCR21,22,30,31,YR21,30199201-199610

57023MEMBER SUB-ASSY, REAR SIDE, RH

main57023-28170iCR27,KR27,YR25..V2199201-199610

main57023-28240iCR28,29,YR25..4D;CR27,KR27..4D..V1199201-199610

main57023-28250iCR36,37,38..4D199201-199610

main57023-28260iCR28,29..5D;CR27,KR27,YR25..5D..V1199201-199610

main57023-28270iCR36,37,38..5D199201-199610

main57023-28927iCR21,22,YR21199201-199610

main57023-28928iCR30,31,YR30199201-199610

57024MEMBER SUB-ASSY, REAR SIDE, LH

main57024-28150iCR27,KR27,YR25..V2199201-199610

main57024-28200iCR28,29;CR27,KR27,YR25..V1199201-199610

main57024-28220iCR36,37,38199201-199610

main57024-28926iCR21,22,YR21..E,G,Q,Z199201-199610

main57024-28927iCR21,22,YR21..D199201-199610

main57024-28928iCR30,31,YR30..E,G,Q,Z199201-199610

main57024-28929iCR30,31..D199201-199610

57068MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER

main57068-28070iCR36199201-199309

main57068-28090iCR21,22,YR21199201-199610

main57068-28100iKR27,YR25..V1199201-199610

main57068-28120iCR27,KR27,YR25..V2199201-199610

main57068-28150iCR30,31,YR30199201-199610

main57068-28200iCR27..V1199309-199610

main57068-28210iCR36199309-199610

main57068-28220iCR29,38199309-199610

57276GUSSET, REAR FLOOR CROSSMEMBER, NO.4

main57276-28010iCR21,22,30,31,YR21,30199201-199610

57315OUTRIGGER, NO.3 RH

main57315-28080iCR28,29,36,37,38..5D;CR27,KR27,YR25..5D..V1199201-199610

main57315-87004iCR27,KR27..4D..V1;CR21,22,28,29,3#,YR2#,30..4D199201-199610

57316OUTRIGGER, NO.3 LH

main57316-28040iCR27,KR27,YR25..V1;CR21,22,28,29,3#,YR21..B,D,F,N199201-199610

main57316-87006iCR21,22,30,31,YR21,30..E,G,Q,Z199201-199610

57603BMEMBER SUB-ASSY, REAR FLOOR SIDE REAR, CENTER

main57603-95D00iCR30,31,YR30199201-199610

main57614-87001iYR21199201-199610

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-28170iCR30,31..D199201-199610

main57605-28180iCR21,22,YR21..D199201-199610

sub57605-28320

main57605-28190iCR21,22,YR21..E,G199201-199610

main57605-28200iCR21,22,YR21..07S199201-199610

sub57605-28190

main57605-28210iCR30,31,YR30..07S199201-199610

sub57605-28240

main57605-28220iCR27,28,29,KR27,YR25199201-199610

sub57605-28280

main57605-28230iCR36,37,38199201-199610

sub57605-28170

main57605-28240iCR30,31,YR30..E,G199201-199610

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-28130iCR27,KR27,YR25..V2199201-199610

main57606-28140iCR21,22,YR21..E,G,Q,Z199201-199610

main57606-28170iCR27,KR27,YR25..V1;CR21,22,28,29,YR21..B,D,F199201-199610

sub57606-28140

main57606-28180iCR30,31,YR30..E,G,Q,Z199201-199610

main57606-28190iCR3#..B,D,F,N199201-199610

sub57606-28180

57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3

main57607-28070iCR27,KR27,YR25..V2199201-199610

main57607-28090iCR36..MTM..HRF..4D199201-199610

sub57607-28180

main57607-28090iCR36,KR27,YR25..(02S,03S)..V1199201-199610

sub57607-28180

main57607-28110iCR28,29;CR27..N..V1199201-199610

main57607-28120iYR21..MRF199201-199610

main57607-28160iCR21,22,30,31..D199201-199610

sub57607-28120

main57607-28170iYR25..N..V1;CR36,37,38..B,F,N199201-199610

sub57607-28110

main57607-28180iCR27..02S..V1199201-199610

main57607-28180iCR27..ATM..D..HRF..4D199309-199610

main57607-28200iKR27..(05S,06S)..V1;CR36,YR25..D..(05S,06S)..V1;CR21,22,30,31,YR30..E,G,Q,Z199201-199610

sub57607-28230

main57607-28220iCR27..D..05S..V1199201-199610

sub57607-28180

main57607-28240iYR21..HRF199201-199610

sub57607-28120

57608AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4

main57608-28060iCR28,29,36,37,38;CR27,KR27,YR25..V1199201-199610

main57608-28100iCR27,KR27,YR25..V2199201-199610

main57608-28900iCR30,31,YR30199201-199610

main57608-28901iCR21,22,YR21199201-199610

57609AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.5

main57609-28020iCR28,29;CR27,KR27,YR25..V1199201-199610

sub57609-28070

main57609-28030iCR27,KR27,YR25..V2199201-199610

main57609-28040iCR21,22,YR21..E,G,Q,Z199201-199405

main57609-28040iCR22,YR21199405-199610

main57609-87004iCR21,22,YR21199201-199405

sub57609-28040

main57609-95D00iCR30,31,YR30199201-199610

main57609-95D02iCR36,37,38199201-199610

57613AMEMBER, REAR FLOOR SIDE CENTER

main57601-28010iCR21,22,30,31,YR21,30199201-199610

57835REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.1

main57835-87001iCR21,22,30,31,YR21,30199201-199610

57871PATCH, REAR NO.1 SEAT LEG, REAR NO.1

main57089-87001iCR21,22,30,31,YR21..D199201-199610

main57871-28030iKR27..(05S,06S)..V1199201-199610

58356BBRACKET, ACTUATOR COVER, NO.2

main58356-28030iCR21,22,YR21..07S199201-199610

main58356-87001iCR22,31,YR21,30..07S199508-199610

main58356-87001iCR21,22,YR21..Z;CR30,31,YR30..07S199201-199508

9095001061

main90950-01061

9095001429

main90950-01429

9165561025

main91655-61025

26 parts on this diagram · 6 diagrams in section
