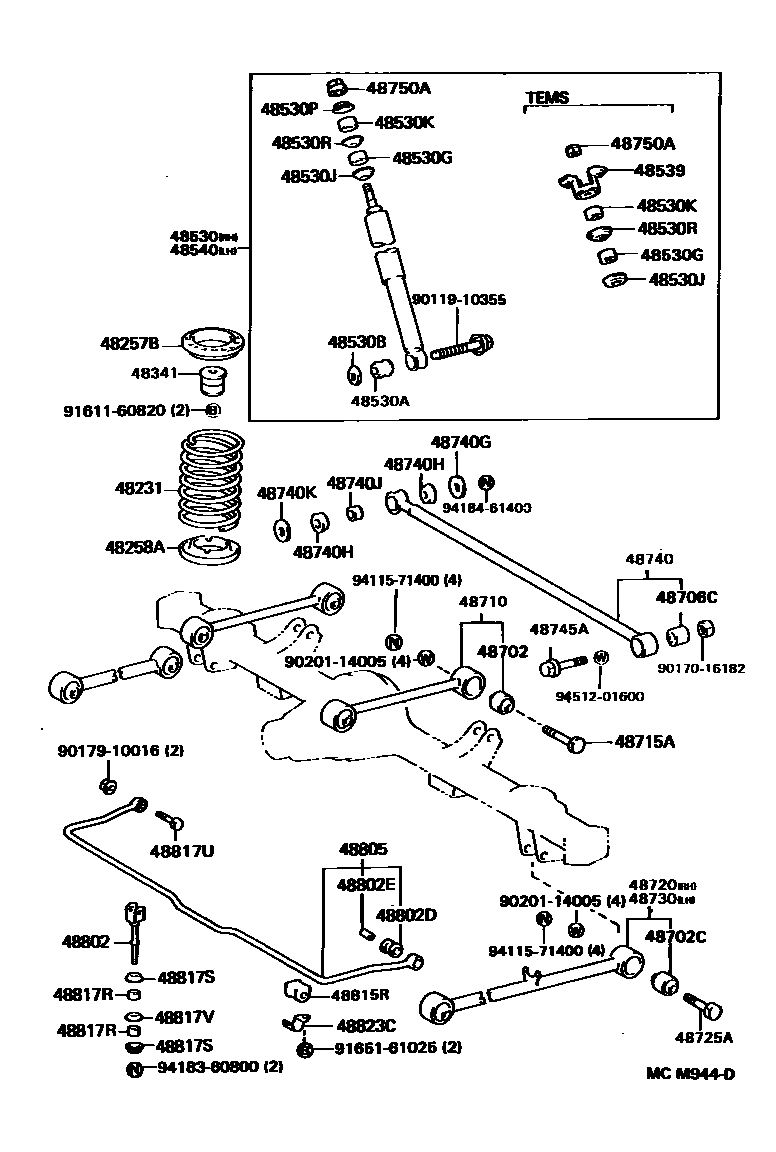

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

48231SPRING, COIL, REAR

main48231-28130×2iCR21,YR21..D199201-199309

main48231-28140×2iCR21,YR21..E,Q,Z199201-199309

main48231-28150×2iCR30,YR30..08S199201-199309

main48231-28180×2iCR30,YR30..07S199201-199309

main48231-28480×2iCR21,YR21..E,Q,Z199201-199309

main48231-28630×2iCR22,YR21..D,G199309-199610

main48231-28640×2iCR22,YR21..E,Q,Z199309-199610

main48231-28650×2iCR22,YR21..E,Q,Z199309-199610

main48231-28660×2iCR31..D,G199309-199610

main48231-28670×2iCR31,YR30..E,Q,Z199309-199610

48257BINSULATOR, REAR COIL SPRING, UPPER

main48257-28011×2iCR21,22,30,31,YR21,30199201-199610

48258AINSULATOR, REAR COIL SPRING, LOWER

main48258-28010×2iCR21,22,30,31,YR21,30199201-199610

48341BUMPER, REAR SPRING

main48341-28040×2iCR21,22,30,31,YR21,30199201-199610

main48341-28070×2iCR27,KR27,YR25..V2199201-199610

main48341-35020×2iCR36,37,38;CR27,KR27,YR25..V1199201-199610

main48341-35030×2iCR28,29199201-199610

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-80128iCR21,22,YR21..Q199201-199505

sub48531-80609

main48531-80129iCR28;CR27,KR27,YR25..V1199201-199211

sub48531-80594

main48531-80131iCR27,KR27,YR25..V2199201-199211

sub48531-80610

main48531-80132iCR30,31,YR30..Z199201-199505

sub48531-80611

sub90101-12150

sub90170-12193

sub94512-01200

main48531-80133iCR37,38199201-199610

sub48531-80612

main48531-80134iCR36199201-199610

sub48531-80613

main48531-80167iCR28,29;CR27,KR27,YR25..V1199211-199610

sub48531-80615

main48531-80168iCR27,KR27,YR25..V2199211-199610

sub48531-80616

main48531-80210iCR21,YR21..D,E,Q199302-199306

sub48531-80617

main48531-80215iCR21,YR21..D,E,Q199201-199302

sub48531-80618

main48531-80235iCR30,YR30..D,E,Q199201-199302

main48531-80250iCR30,31,YR30..D,E,G,Q199302-199505

sub48531-80621

main48531-80297iCR22,YR21..08S199505-199610

sub48531-80633

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-16004×4iCR27,28,29,36,37,38,KR27,YR25199201-199610

main90385-16009×2iCR21,22,YR21199201-199610

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03004×4iCR27,28,29,36,37,38,KR27,YR25199201-199610

48530GCUSHION, REAR SHOCK ABSORBER, NO.1

main90540-10002×2iCR22,31,YR21,30..08S199505-199610

main90948-01026×2iCR21,22,30,31,YR21,30..Z199201-199505

48530JRETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER)

main90948-02002×2iCR21,22,30,31,YR21,30..D,E,G,Q199201-199505

main90948-02070×2iCR21,22,30,31,YR21,30..Z199201-199505

48530KCUSHION, REAR SHOCK ABSORBER, NO.2

main90540-10005×2iCR22,31,YR21,30..08S199505-199610

main90948-01032×2iCR21,22,30,31,YR21,30..Q199201-199505

48530PRETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER)

main90948-02045×2iCR21,22,30,31,YR21,30..D,E,G,Q199201-199505

48530RRETAINER, CUSHION, NO.3(FOR REAR SHOCK ABSORBER)

main90948-02050×2iCR21,22,30,31,YR21,30..D,E,G,Q199201-199505

main90948-02101×2iCR21,22,30,31,YR21,30..Z199201-199505

48539BRACKET, ACTUATOR SUPPORT, RR

main48539-28010×2iCR21,22,30,31,YR21,30..07S199201-199610

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-80128iCR21,22,YR21..Q199201-199505

sub48531-80609

main48531-80129iCR28;CR27,KR27,YR25..V1199201-199211

sub48531-80594

main48531-80131iCR27,KR27,YR25..V2199201-199211

sub48531-80610

main48531-80132iCR30,31,YR30..Z199201-199505

sub48531-80611

sub90101-12150

sub90170-12193

sub94512-01200

main48531-80133iCR37,38199201-199610

sub48531-80612

main48531-80134iCR36199201-199610

sub48531-80613

main48531-80167iCR28,29;CR27,KR27,YR25..V1199211-199610

sub48531-80615

main48531-80168iCR27,KR27,YR25..V2199211-199610

sub48531-80616

main48531-80210iCR21,YR21..D,E,Q199302-199306

sub48531-80617

main48531-80215iCR21,YR21..D,E,Q199201-199302

sub48531-80618

main48531-80235iCR30,YR30..D,E,Q199201-199302

main48531-80250iCR31,YR30..08S199505-199610

sub48531-80621

main48531-80297iCR21,22,YR21..D,E,G,Q199306-199505

sub48531-80633

48702BUSH SUB-ASSY, UPPER CONTROL ARM

main48702-28050×4iCR21,22,30,31,YR21,30199308-199610

main48702-28120×4iCR21,30,YR21,30199201-199308

48702CBUSH SUB-ASSY, LOWER CONTROL ARM

main48704-28010×4iCR21,22,30,31,YR21,30199308-199610

main48704-28030×4iCR21,30,YR21,30199201-199308

48706CBUSH SUB-ASSY, LATERAL CONTROL ROD

main48706-28010iCR21,22,30,31,YR21,30199201-199610

48710ARM ASSY, UPPER CONTROL

main48710-28050×2iCR21,22,YR21199308-199610

main48710-28060×2iCR30,31,YR30199308-199610

main48710-28080×2iCR21,YR21199201-199308

main48710-28090×2iCR30,YR30199201-199308

48715ABOLT, HEXAGON(FOR UPPER CONTROL ARM)

main90105-14016×4iCR21,22,30,31,YR21,30199201-199610

48720ARM ASSY, LOWER CONTROL, RH

main48720-28040iCR21,22,YR21199308-199610

main48720-28050iCR30,31,YR30199308-199610

main48720-28090iCR21,YR21199201-199308

main48720-28100iCR30,YR30199201-199308

48725ABOLT(FOR LOWER CONTROL ARM)

main90105-14017×4iCR21,22,30,31,YR21,30199201-199610

48730ARM ASSY, LOWER CONTROL, LH

main48730-28040iCR21,22,YR21199308-199610

main48730-28050iCR30,31,YR30199308-199610

main48730-28090iCR21,YR21199201-199308

main48730-28100iCR30,YR30199201-199308

48740ROD ASSY, REAR LATERAL CONTROL

main48740-28010iCR21,YR21..08S199212-199302

main48740-28020iCR30,31,YR30199212-199610

main48740-28030iCR30..MTM199201-199212

main48740-28040iCR21,YR21..MTM..08S199201-199212

main48740-28080iCR21,YR21..07S199201-199302

48740GWASHER, PLATE, NO.1(FOR REAR LATERAL CONTROL ROD)

main90201-15019iCR21,22,30,31,YR21,30199201-199610

48740HBUSH, NO.1(FOR REAR LATERAL CONTROL ROD)

main90385-20001×2iCR21,22,30,31,YR21,30199201-199610

48740JBUSH, NO.2(FOR REAR LATERAL CONTROL ROD)

main90386-20001iCR21,22,30,31,YR21,30199201-199610

48740KWASHER, PLATE, NO.2(FOR REAR LATERAL CONTROL ROD)

main94612-12000iCR21,22,30,31,YR21,30199201-199610

48745ABOLT, HEXAGON(FOR LATERAL CONTROL ROD)

main90105-16015iCR21,22,30,31,YR21,30199201-199610

48750ANUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER)

main90179-10022×2iCR21,22,30,31,YR21,30..D,E,G,Q199201-199505

main94187-11200×2iCR21,22,30,31,YR21,30..Z199201-199505

sub90177-12002

48802LINK SUB-ASSY, STABILIZER

main48802-28010×2iCR21,22,YR21199201-199610

main48802-28020×2iCR30,31,YR30199201-199610

main48802-28050×2iYR21;CR21,22..E,G,Q,Z199201-199610

48802DBUSH, STABILIZER LINK

main90385-11021×2iCR21,22,30,31,YR21,30199201-199610

48802ESPACER(FOR REAR STABILIZER BAR)

main90560-10275×2iCR21,22,30,31,YR21,30199201-199610

48805BAR SUB-ASSY, REAR STABILIZER

main48805-28010iCR30,31,YR30199201-199610

main48805-28040iCR21,22,YR21199201-199610

48815RBUSH, STABILIZER(FOR REAR)

main48815-30040×2iCR21,22,YR21199201-199610

main48815-30060×2iCR30,31,YR30199201-199610

48817RCUSHION, STABILIZER(FOR REAR)

main48817-12010×4iCR21,22,30,31,YR21,30199201-199610

48817SRETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)

main90948-02024×4iCR21,22,30,31,YR21,30199201-199610

48817UBOLT(FOR REAR STABILIZER)

main91121-71045×2iCR21,22,30,31,YR21,30199201-199610

sub91512-61045

48817VRETAINER, CUSHION, NO.2(FOR STABILIZER REAR BAR)

main90948-02025×2iCR21,22,30,31,YR21,30199201-199610

48823CCOVER, REAR STABILIZER BRACKET

main48823-28020×2iCR21,22,30,31,YR21,30199201-199610

9011910355

main90119-10355

9017016182

main90170-16182

9017910016

main90179-10016

9020114005

main90201-14005

9161160820

main91611-60820

9165161025

main91651-61025

9411571400

main94115-71400

9418360800

main94183-60800

9418461400

main94184-61400

9451201600

main94512-01600

49 parts on this diagram · 7 diagrams in section
