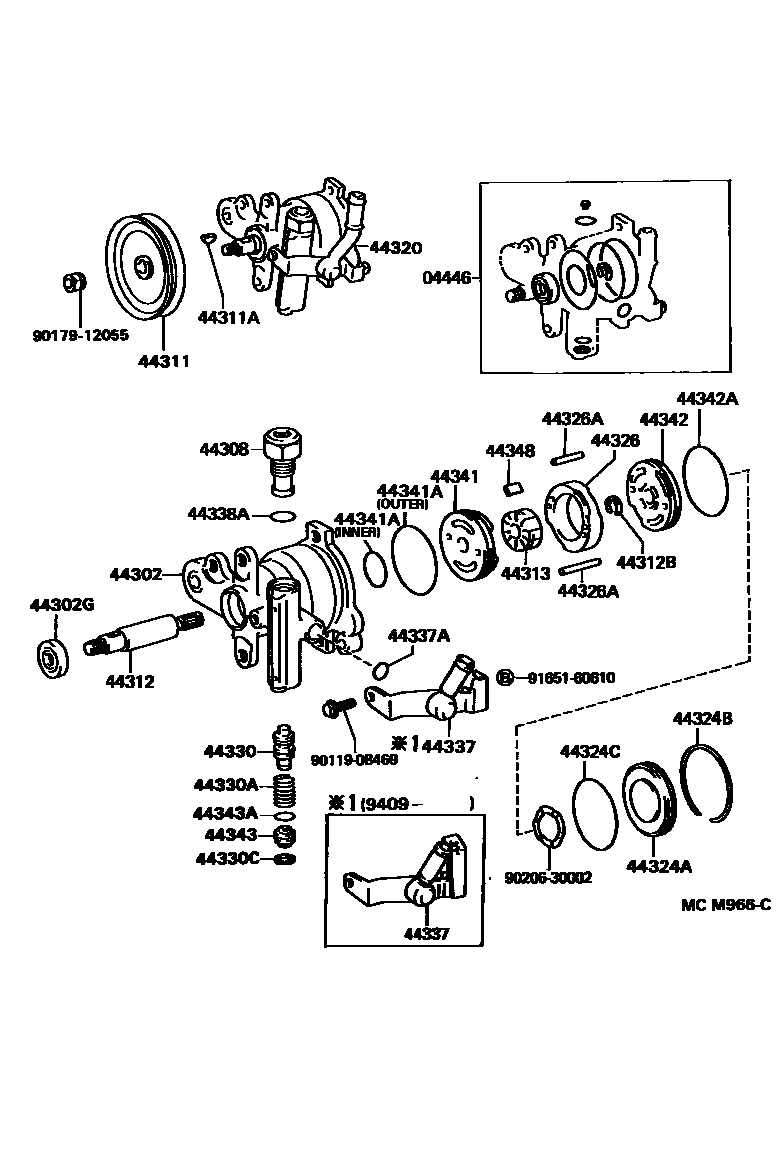

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1 0003 1 0004 1 0005 1

04446GASKET KIT, POWER STEERING PUMP

main04446-14010iYR2#,30199201-199610

sub04446-14040

main04446-27010iKR27199201-199502

main04446-27011iKR27199502-199610

main04446-27020iCR2#,3#199201-199610

44302HOUSING SUB-ASSY, VANE PUMP, FRONT

main44302-12041iKR27199201-199610

main44302-14010iYR2#,30199201-199610

main44302-28020iCR2#,3#199201-199610

44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

main90311-17004iCR2#,3#199201-199610

main90311-18007iKR27199201-199610

main90311-24001iYR2#,30199201-199610

44308UNION SUB-ASSY, PRESSURE PORT

main44308-12042iKR27199201-199610

main44308-14041iCR2#,3#,YR2#,30..B,D,E,F,G,N,Q199201-199408

main44308-35030iCR21,22,30,31,YR21,30..Z199201-199408

44311PULLEY, VANE PUMP

main44311-12010iYR2#,30199201-199610

main44311-12060iKR27199201-199610

main44311-28021iCR2#,3#199309-199610

main44311-28040iCR2#,3#199201-199202

main44311-28041iCR2#,3#199202-199309

44311AKEY, VANE PUMP PULLEY

main90280-05008iKR27,YR2#,30199201-199610

44312SHAFT, VANE PUMP

main44312-12010iYR2#,30199201-199610

main44312-12030iKR27199201-199610

main44312-28010iCR2#,3#199202-199610

main44312-50010iCR2#,3#199201-199202

44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)

main90520-10003iKR27199201-199610

main90520-15001iYR2#,30199201-199610

main90520-15005iCR2#,3#199201-199610

44313ROTOR, VANE PUMP

main44313-22040iCR2#,3#,KR27,YR2#,30199201-199610

main44313-22050iCR2#,3#,KR27,YR2#,30199201-199610

main44313-22060iCR2#,3#,KR27,YR2#,30199201-199610

main44313-22070iCR2#,3#,KR27,YR2#,30199201-199610

main44313-22080iCR2#,3#,KR27,YR2#,30199201-199610

44320PUMP ASSY, VANE

main44320-28011iYR25199201-199610

main44320-28021iYR21,30199408-199610

main44320-28070iKR27199201-199409

main44320-28071iKR27199409-199610

main44320-28080iCR2#..B,D,E,F,N,Q199201-199202

main44320-28081iCR2#199408-199610

main44320-28090iCR3#..B,D,E,F,N,Q199201-199202

main44320-28091iCR3#199408-199610

main44320-28100iYR21,30..Z199201-199408

main44320-28110iCR21..Z199201-199202

main44320-28111iCR21,22..Z199202-199408

main44320-28120iCR30..Z199201-199202

main44320-28121iCR30,31..Z199202-199408

44324AHOUSING, PUMP, REAR

main44324-12031iKR27199201-199610

44324BRING, HOLE SNAP(FOR PUMP HOUSING REAR)

main90521-62002iKR27199201-199610

44324CRING, O(FOR PUMP HOUSING REAR)

main90301-52001iKR27199201-199502

main90301-53006iKR27199502-199610

sub90301-53007

44326RING, CAM(FOR VANE PUMP)

main44325-12010iCR2#,3#,YR2#,30199201-199610

main44325-12020iCR2#,3#,YR2#,30199201-199610

main44325-12030iCR2#,3#,YR2#,30199201-199610

main44325-12040iCR2#,3#,YR2#,30199201-199610

main44325-12050iCR2#,3#,YR2#,30199201-199610

main44325-12110iKR27199201-199610

main44325-12120iKR27199201-199610

main44325-12130iKR27199201-199610

main44325-12140iKR27199201-199610

main44325-12150iKR27199201-199610

44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)

main90250-04047iKR27199201-199610

main90250-04049iKR27199201-199610

main90250-05008×2iCR2#,3#,YR2#,30199201-199610

44330VALVE ASSY, FLOW CONTROL

main44330-12131iCR2#,3#,YR2#,30..B,D,E,F,G,N,Q199201-199408

sub44330-32670

main44330-12141iCR2#,3#,YR2#,30..B,D,E,F,G,N,Q199201-199408

sub44330-32680

main44330-12151iCR2#,3#,YR2#,30199408-199610

sub44330-32690

main44330-12161iCR2#,3#,YR2#,30199408-199610

sub44330-32700

main44330-12171iCR2#,3#,YR2#,30..B,D,E,F,G,N,Q199201-199408

sub44330-32710

main44330-12181iCR2#,3#,YR2#,30199408-199610

sub44330-32720

main44330-20010iKR27199201-199610

sub44330-35191

main44330-20020iKR27199201-199610

sub44330-35201

main44330-20030iKR27199201-199610

sub44330-35211

main44330-20040iKR27199201-199610

sub44330-35221

main44330-20050iKR27199201-199610

sub44330-35231

main44330-20060iKR27199201-199610

sub44330-35241

main44330-32130iCR21,22,30,31,YR21,30..Z199201-199408

sub44330-32670

main44330-32140iCR21,22,30,31,YR21,30..Z199201-199408

sub44330-32680

main44330-32150iCR21,22,30,31,YR21,30..Z199201-199408

sub44330-32690

main44330-32160iCR21,22,30,31,YR21,30..Z199201-199408

sub44330-32700

main44330-32170iCR21,22,30,31,YR21,30..Z199201-199408

sub44330-32710

main44330-32180iCR21,22,30,31,YR21,30..Z199201-199408

sub44330-32720

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90501-12103iCR2#,3#,KR27,YR2#,30199201-199610

44330CRING, SNAP(FOR FLOW CONTROL VALVE)

main96151-01700iCR2#,3#,KR27,YR2#,30199201-199509

44337UNION, POWER STEERING SUCTION PORT

main44337-27010iYR25199201-199610

main44337-27030iCR2#,3#199201-199610

main44337-28010iYR21,30199201-199610

main44337-28040iKR27199201-199409

main44337-28041iKR27199409-199610

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-12003iKR27199201-199610

sub90301-11016

main96711-19013iCR2#,3#,YR2#,30199201-199610

44338ARING, O(FOR PRESSURE PORT UNION)

main90301-19003iKR27199201-199610

sub90301-19013

main90301-22001iCR2#,3#,YR2#,30199201-199610

main96711-19014iCR2#,3#,YR2#,30199201-199610

44341PLATE, VANE PUMP SIDE, FRONT

main44341-32010iKR27199201-199610

44341ARING, O(FOR VANE PUMP FRONT SIDE PLATE)

main90301-25001iKR27199201-199610

sub90301-25008

main90301-52001iKR27199201-199610

44342PLATE, VANE PUMP SIDE, REAR

main44341-12010iCR2#,3#,YR2#,30199201-199610

main44342-32010iKR27199201-199610

44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)

main90301-52001iKR27199201-199610

main90301-53002iCR2#,3#,YR2#,30199201-199610

44343SEAT, FLOW CONTROL SPRING

main44343-12010iKR27199201-199509

main44343-12040iCR2#,3#,YR2#,30199201-199610

44343ARING, O(FOR FLOW CONTROL SPRING SEAT)

main96711-19014iCR2#,3#,KR27,YR2#,30199201-199509

44348PLATE, VANE PUMP

main44345-12010×10iCR2#,3#,KR27,YR2#,30199201-199610

main44345-12020×10iCR2#,3#,KR27,YR2#,30199201-199610

main44345-12030×10iCR2#,3#,KR27,YR2#,30199201-199610

main44345-12040×10iCR2#,3#,KR27,YR2#,30199201-199610

main44345-12050×10iCR2#,3#,KR27,YR2#,30199201-199610

9011908469

main90119-08469

9017912055

main90179-12055

9020630002

main90206-30002

9165160610

main91651-60610

32 parts on this diagram · 5 diagrams in section
