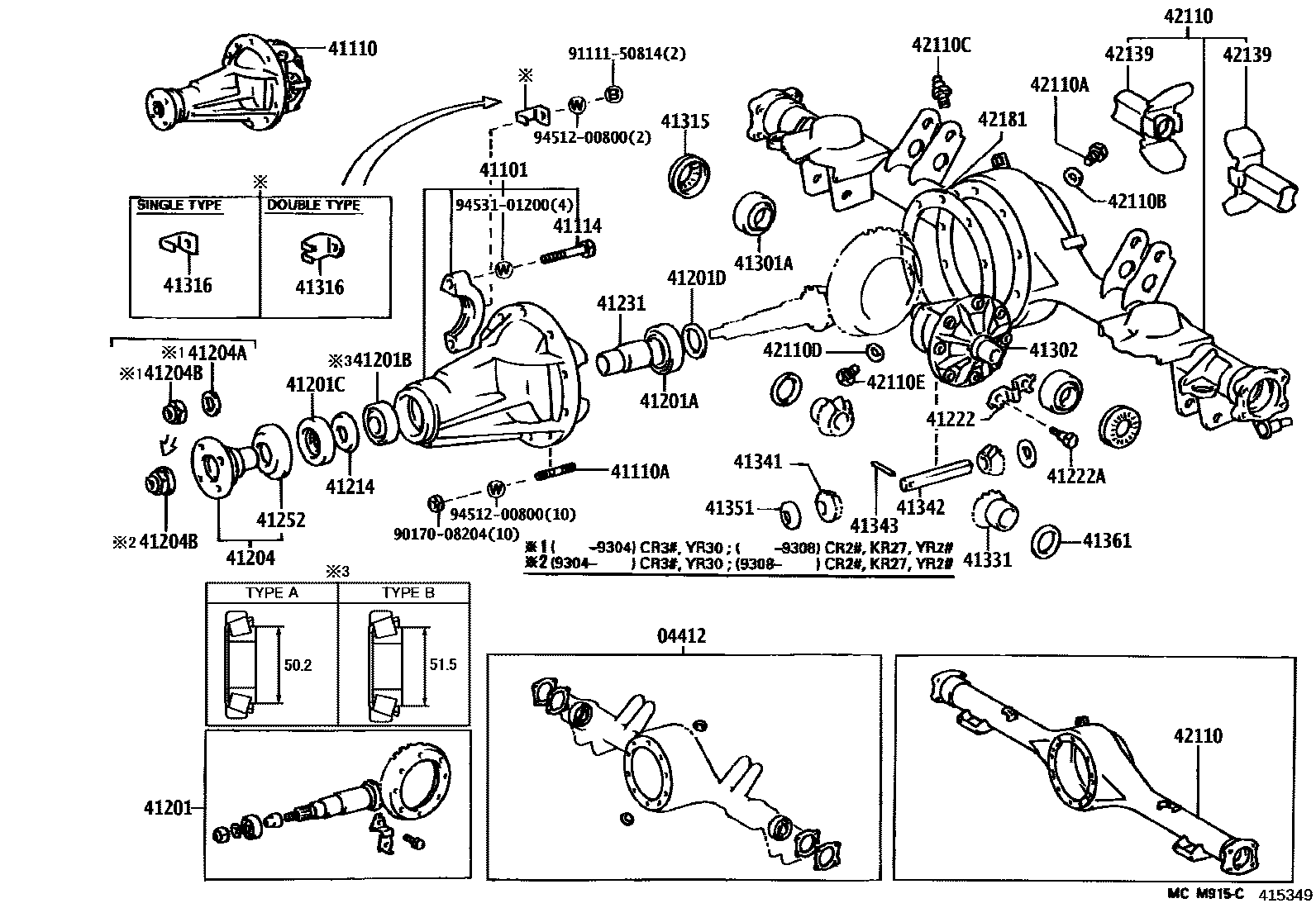

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1LIMITED SLIP DIFFERENTIAL

04412GASKET KIT, REAR DIFFERENTIAL CARRIER

main04412-28020iCR22,29..ATM;CR21,27,28,KR27,YR2#199201-199610

main04412-28040iCR21,22,YR21..E,G,Q,Z199201-199610

main04412-28050iCR3#,YR30;CR22,29..MTM199201-199610

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-30010iCR22,29..ATM;CR21,27,28,KR27,YR2#199201-199610

main41101-30031iCR22..ATM;CR21,YR21..E,Q,Z199201-199610

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-20230iCR21,YR21..MTM..(E,Q)199201-199610

main41110-20241iCR27..ATM..V2;KR27..MTM..V2;CR21,28,YR21..MTM199201-199610

main41110-21020iYR25..V1;KR27..ATM..V2;CR27..MTM..V1;CR21,22,28,29,YR21..ATM199201-199610

main41110-22240iYR25..V2;CR27..MTM..V2199201-199610

main41110-27100iKR27..ATM..V1199201-199610

main41110-27120iCR27..ATM..V1;KR27..MTM..V1199201-199610

main41110-28070iCR31,38..MTM199309-199610

main41110-28080iCR37;CR30..MTM;CR31,38,YR30..ATM199201-199610

main41110-28090iCR36;CR30..ATM199201-199610

main41110-28100iCR31,38..MTM199309-199610

main41110-28110iCR37;CR30..MTM;CR31,38,YR30..ATM199201-199610

main41110-28120iCR36;CR30..ATM199201-199610

main41110-30180iCR21,22,YR21..ATM199201-199610

main41110-30180iCR22,29..MTM199309-199610

41110ABOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)

main90116-08235iCR2#,3#,KR27,YR2#,30199201-199610

sub90116-08418

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main90101-12376iCR28,YR21;CR21,27,KR27,YR25..HRF,SRF199201-199208

main90105-12053iCR22..ATM;CR21,YR21..E,Q,Z199201-199610

main90105-12240iCR22,29..ATM;CR21,27,28,KR27,YR2#199208-199610

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-29217iYR25..V1;KR27..ATM..V2;CR27..MTM..V1;CR21,22,28,29,YR21..ATM199201-199610

main41201-29765iYR25..V2;CR27..MTM..V2199201-199610

main41201-29865iKR27..ATM..V1199201-199610

main41201-39555iCR27..ATM..V2;KR27..MTM..V2;CR21,28,YR21..MTM199201-199610

main41201-80004iCR22,29,31,38..MTM199309-199610

main41201-80004iCR21,22,YR21..ATM199201-199610

main41201-80007iCR21,YR21..MTM..(E,Q)199201-199610

sub41201-80110

main41201-80015iCR37;CR30..MTM;CR31,38,YR30..ATM199201-199610

main41201-80020iCR27..ATM..V1;KR27..MTM..V1199201-199610

main41201-80030iCR36;CR30..ATM199201-199610

41201ABEARING (FOR REAR DRIVE PINION REAR)

main90366-35023iCR22..ATM;YR21..HRF199311-199610

main90366-35023iCR36;CR22,29,31,38..MTM199311-199610

main90366-35031iCR22,29..ATM;CR21,27,28,KR27,YR2#199201-199509

sub90366-35064

main90366-35067iCR22,29..ATM;CR27,KR27,YR2#199509-199610

sub90366-35064

main90366-35073iCR3#,YR30;CR22,29..MTM199201-199311

main90366-35073iCR31,38,YR30..ATM199311-199610

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90366-30022iCR36;CR22,29,31,38..MTM199509-199610

sub90366-30078

main90366-30022iCR22..ATM;YR21..HRF199201-199610

sub90366-30078

main90366-30022iCR31,38,YR30..ATM199311-199610

sub90366-30078

main90366-30055iCR3#,YR30;CR22,29..MTM199201-199610

main90366-30055iCR22..ATM;CR21,YR21..E,Q,Z199201-199311

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90311-38047iCR22..ATM;YR21..HRF199512-199610

main90311-38133iCR2#,3#,KR27,YR2#,30199201-199610

sub90311-38047

41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)

main90201-35396iCR2#,3#,KR27,YR2#,30199201-199610

main90201-35397iCR2#,3#,KR27,YR2#,30199201-199610

main90201-35398iCR2#,3#,KR27,YR2#,30199201-199610

main90201-35399iCR2#,3#,KR27,YR2#,30199201-199610

main90201-35400iCR2#,3#,KR27,YR2#,30199201-199610

main90201-35401iCR2#,3#,KR27,YR2#,30199201-199610

main90201-35402iCR2#,3#,KR27,YR2#,30199201-199610

main90201-35403iCR2#,3#,KR27,YR2#,30199201-199610

main90201-35404iCR2#,3#,KR27,YR2#,30199201-199610

main90201-35434iCR2#,3#,KR27,YR2#,30199201-199309

sub90201-35515

main90201-35435iCR2#,3#,KR27,YR2#,30199201-199309

sub90201-35516

main90201-35436iCR2#,3#,KR27,YR2#,30199201-199309

sub90201-35517

main90201-35437iCR2#,3#,KR27,YR2#,30199201-199309

sub90201-35518

main90201-35438iCR2#,3#,KR27,YR2#,30199201-199610

main90201-35439iCR2#,3#,KR27,YR2#,30199201-199610

main90201-35440iCR2#,3#,KR27,YR2#,30199201-199610

main90201-35441iCR2#,3#,KR27,YR2#,30199201-199610

main90201-35515iCR2#,3#,KR27,YR2#,30199309-199610

main90201-35516iCR2#,3#,KR27,YR2#,30199309-199610

main90201-35517iCR2#,3#,KR27,YR2#,30199309-199610

main90201-35518iCR2#,3#,KR27,YR2#,30199309-199610

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-20030iCR21,YR21..E,Q,Z199304-199308

main41204-20030iCR2#,KR27,YR2#199201-199610

main41204-20050iCR2#,KR27,YR2#199304-199308

sub41204-20030

main41204-35050iCR3#,YR30199201-199610

41204AWASHER, PLATE (FOR REAR DRIVE PINION)

main90201-18485iCR2#,KR27,YR2#199201-199308

41204BNUT (FOR REAR DRIVE PINION)

main90179-18001iCR2#,KR27,YR2#199201-199308

main90179-18020iCR3#,YR30199304-199610

main90179-18020iCR3#,YR30199304-199308

41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

main41214-30021iCR2#,3#,KR27,YR2#,30199201-199610

41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-28010iCR22,29..ATM;CR21,27,28,KR27,YR2#199201-199610

main41222-35030iCR3#,YR30;CR22,29..MTM199201-199610

41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

main90101-11353iCR22,29..ATM;CR21,27,28,KR27,YR2#199201-199610

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-22010iCR22..ATM;CR21,YR21..E,Q,Z199201-199610

main41231-22020iCR22,29..ATM;CR21,27,28,KR27,YR2#199201-199610

41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

main41252-20010iCR2#,KR27,YR2#199304-199308

sub41252-30010

main41252-30010iCR3#,YR30199304-199308

main41252-30010iCR2#,3#,KR27,YR2#,30199201-199610

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90368-45014iCR22,29..ATM;CR21,27,28,KR27,YR2#199201-199610

main90368-45066iCR3#,YR30;CR22,29..MTM199201-199610

main90368-50024iCR37;CR30..MTM;CR31,38,YR30..ATM199201-199610

41302CASE SUB-ASSY, REAR DIFFERENTIAL

main41302-22011iCR36;CR30..ATM199201-199610

main41311-30022iCR22,29..ATM;CR21,27,28,KR27,YR2#199201-199610

main41311-30050iCR22..ATM;CR21,YR21..E,Q,Z199201-199610

sub41311-28010

41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING

main41315-30010iCR22,29..ATM;CR21,27,28,KR27,YR2#199201-199610

main41315-35010iCR22..ATM;CR21,YR21..E,Q,Z199201-199610

41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT

main41316-30010iCR2#,3#,KR27,YR2#,30199201-199308

SINGLE TYPE

main41316-35010iCR2#,3#,KR27,YR2#,30199308-199610

SINGLE TYPE

main41317-30010iCR2#,3#,KR27,YR2#,30199201-199610

DOUBLE TYPE

41331GEAR, REAR DIFFERENTIAL SIDE

main41305-22010iCR37;CR30..MTM;CR31,38,YR30..ATM199201-199610

main41331-22070iCR22,29..ATM;CR21,27,28,KR27,YR2#199201-199610

sub41039-28010

main41331-30030iCR22..ATM;CR21,YR21..E,Q,Z199201-199610

41341PINION, REAR DIFFERENTIAL

main41341-14031iCR37;CR30..MTM;CR31,38,YR30..ATM199201-199610

main41341-22030iCR22,29..ATM;CR21,27,28,KR27,YR2#199201-199610

sub41039-28010

main41341-30020iCR3#,YR30;CR22,29..MTM199201-199610

sub41341-30050

41342SHAFT, REAR DIFFERENTIAL PINION

main41342-22020iCR22..ATM;CR21,YR21..E,Q,Z199201-199610

sub41342-22021

main41342-30011iCR22,29..ATM;CR21,27,28,KR27,YR2#199201-199610

41343PIN, REAR DIFFERENTIAL PINION SHAFT

main90250-06058iCR2#,3#,KR27,YR2#,30199201-199610

41351WASHER, REAR DIFFERENTIAL PINION THRUST

main41351-30032iCR22,29..ATM;CR21,27,28,KR27,YR2#199201-199610

main41351-30060iCR3#,YR30;CR22,29..MTM199201-199610

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-22020iCR22,29..ATM;CR21,27,28,KR27,YR2#199201-199610

main41361-22030iCR22,29..ATM;CR21,27,28,KR27,YR2#199201-199610

main41361-22040iCR22,29..ATM;CR21,27,28,KR27,YR2#199201-199610

main41361-22140iCR22,29..ATM;CR21,27,28,KR27,YR2#199201-199610

main41361-22150iCR22,29..ATM;CR21,27,28,KR27,YR2#199201-199610

main41361-22160iCR22,29..ATM;CR21,27,28,KR27,YR2#199201-199610

main41361-28130iCR37;CR30..MTM;CR31,38,YR30..ATM199201-199610

main41361-28140iCR37;CR30..MTM;CR31,38,YR30..ATM199201-199610

main41361-28150iCR36;CR30..ATM199201-199610

main41361-28160iCR36;CR30..ATM199201-199610

main41361-28170iCR37;CR30..MTM;CR31,38,YR30..ATM199201-199610

main41361-28180iCR37;CR30..MTM;CR31,38,YR30..ATM199201-199610

main41361-28190iCR36;CR30..ATM199201-199610

main41361-28200iCR36;CR30..ATM199201-199610

main41361-28210iCR36;CR30..ATM199201-199610

main41361-28220iCR31,38..MTM199201-199610

main41361-30040iCR22..ATM;CR21,YR21..E,Q,Z199201-199610

main41361-30040iCR22..ATM;CR21,YR21..E,Q,Z199201-199610

main41361-30050iCR3#,YR30;CR22,29..MTM199201-199610

main41361-30050iCR3#,YR30;CR22,29..MTM199201-199610

main41361-30060iCR22..ATM;CR21,YR21..E,Q,Z199201-199610

main41361-30060iCR3#,YR30;CR22,29..MTM199201-199610

main41361-30070iCR22..ATM;CR21,YR21..E,Q,Z199201-199610

main41361-30070iCR22..ATM;CR21,YR21..E,Q,Z199201-199610

42110HOUSING ASSY, REAR AXLE

main42110-28082iCR21,YR21199201-199309

main42110-28091iYR21;CR22..ATM199309-199610

main42110-28151iCR22..MTM199309-199610

main42110-28170iCR29..MTM199309-199610

main42110-28240iCR28;CR29..ATM;CR27,KR27,YR25..V1199201-199610

main42110-28250iCR27,KR27,YR25..V2199201-199610

main42110-28270iCR36,37,38199201-199610

main42110-28280iCR21,22,YR21..E,G,Q,Z199201-199610

main42110-28290iCR30,31,YR30199201-199610

42110APLUG (FOR REAR AXLE HOUSING FILLER)

main90341-18006iCR2#,3#,KR27,YR2#,30199201-199610

42110BGASKET (FOR REAR AXLE HOUSING FILLER PLUG)

main12157-10010iCR2#,3#,KR27,YR2#,30199201-199610

42110CPLUG, BREATHER (FOR REAR AXLE HOUSING)

main90930-03031iCR2#,3#,KR27,YR2#,30199201-199610

42110DGASKET (FOR REAR AXLE HOUSING DRAIN PLUG)

main12157-10010iCR2#,3#,KR27,YR2#,30199201-199610

42110EPLUG (FOR REAR AXLE HOUSING DRAIN)

main90341-18057iCR2#,3#,KR27,YR2#,30199201-199610

42139DEFLECTOR, REAR AXLE HOUSING OIL

main42108-22010iCR22,29..ATM;CR21,27,28,KR27,YR2#199201-199507

main42108-22030iCR22,29..ATM;CR27,KR27,YR2#199507-199610

main42108-30010iCR22..ATM;CR21,YR21..E,Q,Z199201-199610

42181GASKET, REAR DIFFERENTIAL CARRIER

main42181-30010iCR22,29..ATM;CR21,27,28,KR27,YR2#199201-199610

main42181-30020iCR3#,YR30;CR22,29..MTM199201-199610

9017008204

main90170-08204

9111150814

main91111-50814

9451200800

main94512-00800

9453101200

main94531-01200

40 parts on this diagram · 2 diagrams in section
