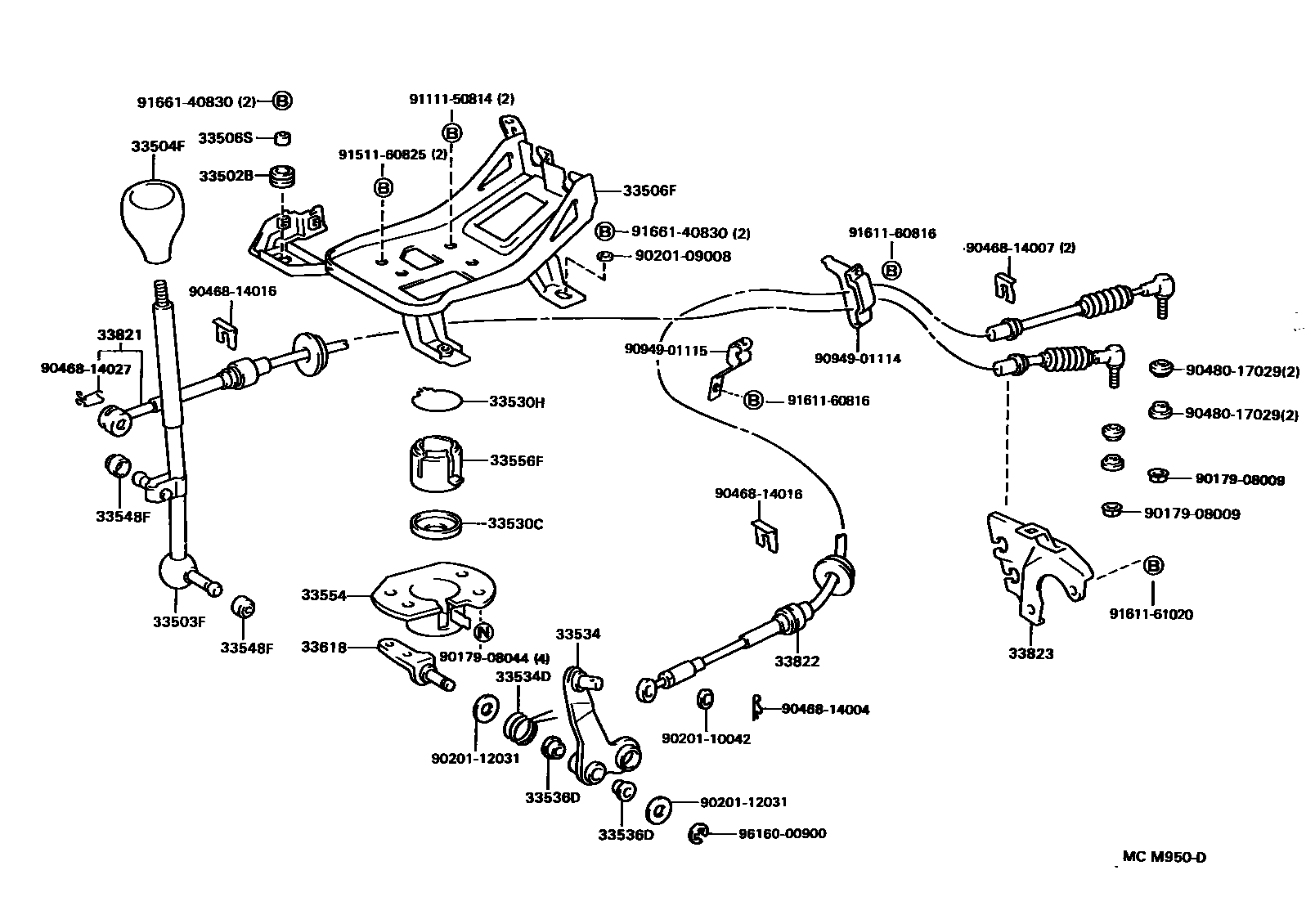

SHIFT LEVER & RETAINER

0001 1 0002 1 0004 1 0005 1

33502PLATE SUB-ASSY, SHIFT LEVER

main33502-28101iCR27,36,KR27,YR2#,30..ATM199201-199610

main33502-28111iCR21,28,30,37..ATM199201-199309

main33502-28112iCR22,29,31,38..ATM199309-199610

33502BGROMMET (FOR SHIFT LEVER PLATE)

main90480-13012iCR2#,3#,KR27,YR2#,30199201-199610

33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)

main33055-28020iCR27,36,KR27,YR2#,30..ATM..(E,N,Q,Z)199201-199610

main33055-28030iCR21,22,28,30,31,37..ATM..(E,F,G,Q,Z)199201-199610

main33055-28030iCR29,38..ATM199309-199610

main33055-28150iKR27,YR25..MTM..D199201-199610

main33501-28070iCR27,36,KR27,YR2#..MTM..(02S,05S,07S,08S)199201-199610

main33501-28080iCR21,22,28,29,30,31,37,38..MTM199201-199610

main33501-28110iCR27,36,KR27,YR25..ATM..D199201-199610

main33503-28180iCR28,29,37,38..ATM..B199201-199610

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-14070-B1iCR2#,3#,KR27,YR2#..MTM..(B,D)199201-199610

GRAY,TRIM1#

sub33504-14070

sub33504-14050

main33504-24010-48iCR2#,3#,KR27,YR2#..MTM..(E,F,N,Q)199201-199309

GRAY,TRIM1#

sub33504-24010

main33504-24010-E5iCR21,30,YR21..MTM..(E,Q)199201-199309

GREIGE,TRIM4#

sub33504-24010

main33504-35030-B1iCR29,38..MTM..HRF199309-199610

sub33504-24010

sub33504-35030

sub33504-60121

main33504-35030-B1iCR22,27,31,36,KR27,YR2#..MTM..(E,G,N,Q)199309-199610

BLUISH GRAY,TRIM1#

sub33504-24010

sub33504-35030

sub33504-60121

main33504-35030-E4iCR22,31,YR21..MTM..(E,Q)199309-199610

GREIGE,TRIM4#

sub33504-24010

sub33504-35030

sub33504-60121

main33542-20080-23iCR21,22,27,28,30,31,36,37,KR27,YR30..ATM..(E,F,G,N,Q,Z)199201-199610

GRAY,TRIM1#

sub33542-20080

sub33542-20081

main33542-20080-23iCR29,38..ATM199309-199610

sub33542-20080

sub33542-20081

main33542-20080-E1iCR21,22,27,28,30,31,36,37,KR27,YR2#,30..ATM..(E,F,G,N,Q,Z)199201-199610

GREIGE,TRIM4#

sub33542-20080

sub33542-20081

main33542-32010-B0iCR27,28,29,36,37,38,KR27,YR25..ATM..(B,D)199201-199610

GRAY,TRIM1#

sub33542-32010

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33506-28062iCR21,22,28,29,30,31,37,38..MTM199201-199610

main33506-28151iCR27,36,KR27,YR2#..MTM..(02S,05S,07S,08S)199201-199610

main33506-28180iKR27,YR25..MTM..D199201-199610

33506SCOLLAR, NO.1(FOR CONTROL SHIFT LEVER RETAINER)

main90387-09011iCR2#,3#,KR27,YR2#..MTM..(02S,05S,07S,08S)199201-199610

main90387-09038iKR27,YR25..MTM..D199201-199211

33530CBUSH (FOR SHIFT LEVER)

main90385-24001iCR2#,3#,KR27,YR2#..MTM..(02S,05S,07S,08S)199201-199610

33530HRING, SNAP (FOR SHIFT LEVER)

main90520-34002iCR2#,3#,KR27,YR2#..MTM..(02S,05S,07S,08S)199201-199202

main90520-36018iCR2#,3#,KR27,YR2#..MTM..(02S,05S,07S,08S)199202-199610

33534BELLCRANK, SELECTING

main33534-28041iCR21,22,28,29,30,31,37,38..MTM199201-199610

main33534-28050iCR27,36,KR27,YR2#..MTM..(02S,05S,07S,08S)199201-199610

main33534-28080iKR27,YR25..MTM..D199201-199610

33534DSPRING, TORSION (FOR SELECTING BELLCRANK NO.1)

main90508-28001iCR27,36,KR27,YR2#..MTM..(02S,05S,07S,08S)199201-199610

main90508-32025iCR21,22,28,29,30,31,37,38..MTM199201-199610

33536DBUSH, CONTROL SELECT LEVER SHAFT (FOR FLOOR SHIFT)

main90386-12013iCR2#,3#,KR27,YR2#..MTM..(02S,05S,07S,08S)199201-199302

main90386-12034iCR2#,3#,KR27,YR2#..MTM..(02S,05S,07S,08S)199302-199610

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-12021iCR2#,3#,KR27,YR2#..MTM199201-199610

33554CAP, SHIFT LEVER

main33554-28031iCR21,22,28,29,30,31,37,38..MTM199201-199610

main33554-28060iCR27,36,KR27,YR2#..MTM..(02S,05S,07S,08S)199201-199610

33556FSEAT, TRANSMISSION SHIFT LEVER BALL

main33556-20020iCR2#,3#,KR27,YR2#..MTM..(02S,05S,07S,08S)199201-199610

33618SUPPORT, SELECTING BELLCRANK, NO.1

main33618-28021iCR21,22,28,29,30,31,37,38..MTM199201-199610

main33618-28030iCR27,36,KR27,YR2#..MTM..(02S,05S,07S,08S)199201-199610

33821CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT)

main33821-28061iCR27,36,YR2#..MTM..(02S,05S,07S,08S)199201-199610

main33821-28072iCR21,22,28,29..MTM199201-199610

main33821-28081iCR30,31,37,38..MTM199201-199610

main33821-28120iKR27..MTM..05S199201-199610

main33821-28140iKR27..MTM..D199201-199610

main33821-28150iYR25..MTM..D199201-199610

33822CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT)

main33822-28061iCR27,36,YR2#..MTM..(02S,05S,07S,08S)199201-199610

main33822-28071iCR21,22,28,29..MTM199201-199610

main33822-28081iCR30,31,37,38..MTM199201-199610

main33822-28120iKR27..MTM..05S199201-199610

main33822-28140iKR27..MTM..D199201-199610

main33822-28150iYR25..MTM..D199201-199610

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-28010iYR2#..ATM199201-199610

main33823-28020iYR2#..MTM..(05S,07S,08S)199201-199610

main33823-28032iCR27,36..MTM199201-199610

main33823-28050iCR21,22,28,29,30,31,37,38..MTM199201-199610

main33823-28060iCR27,36..ATM199201-199610

main33823-28070iCR21,22,28,29,30,31,37,38..ATM199201-199610

main33823-28090iYR30199201-199610

main33823-28140iKR27..MTM..05S199201-199610

main33823-28150iKR27..MTM..D199201-199610

main33823-28160iYR25..MTM..D199201-199610

main33823-28170iKR27..ATM199201-199610

9017908009

main90179-08009

9017908044

main90179-08044

9020109008

main90201-09008

9020110042

main90201-10042

9020112031

main90201-12031

9046814004

main90468-14004

9046814007

main90468-14007

9046814016

main90468-14016

9046814027

main90468-14027

9048017029

main90480-17029

9094901114

main90949-01114

9094901115

main90949-01115

9111150814

main91111-50814

9151160825

main91511-60825

9161160816

main91611-60816

9161161020

main91611-61020

9166140830

main91661-40830

9616000900

main96160-00900

36 parts on this diagram · 4 diagrams in section
