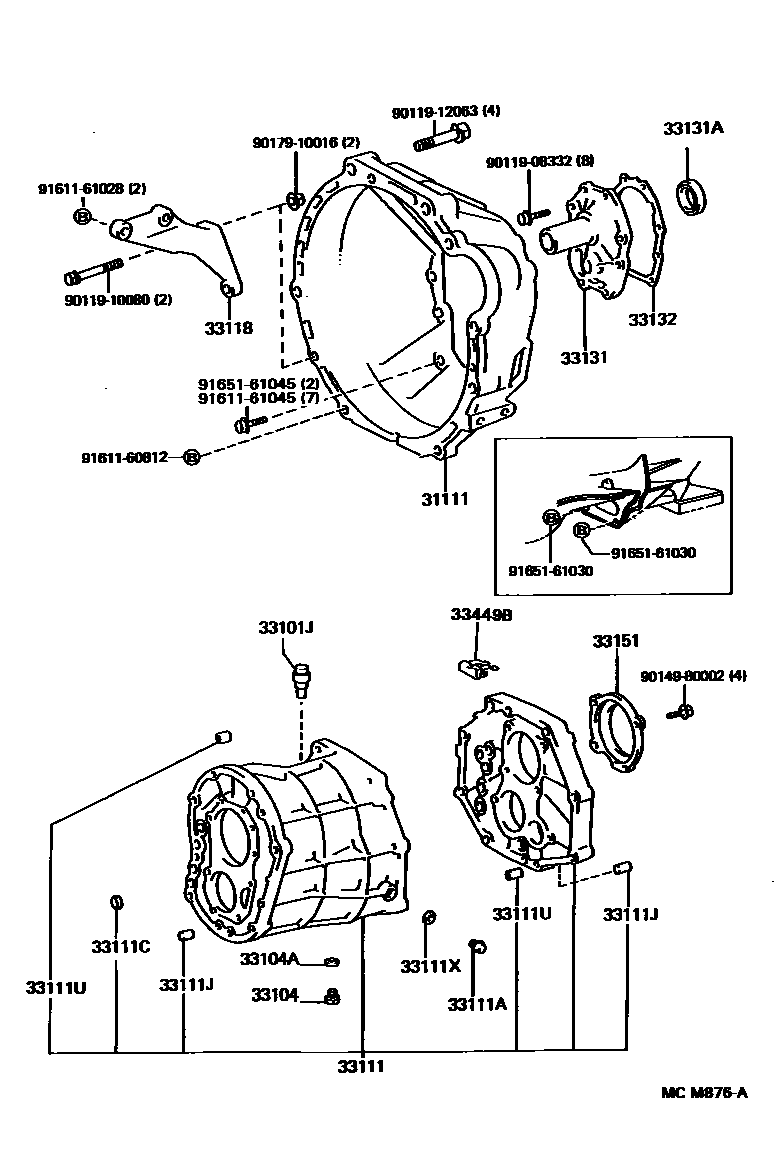

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1G52 0002 1G52,G53 0003 1G52,G53

31111HOUSING, CLUTCH

main31111-27030iKR27..MTM199201-199610

main31111-28020iYR2#..MTM199201-199610

main31111-28030iCR2#,3#..MTM199201-199610

33101JPLUG, BREATHER

main90930-03085iCR2#,3#,KR27,YR2#..MTM199201-199610

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iCR27,36..MTM199503-199610

OD=24

main90341-18021iCR21,27,28,36..MTM199201-199503

OD-26

main90341-18022iCR27,36..MTM199503-199506

OD=26

main90341-18032iCR27,36..MTM199506-199610

OD=26

main90341-18057iCR22,29,31,38,KR27,YR2#..MTM199201-199503

OD=24

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iCR2#,3#,KR27,YR2#..MTM199201-199610

33111CASE, MANUAL TRANSMISSION

main33101-28020iCR2#,3#,KR27,YR2#..MTM199201-199610

main33101-35060iCR21,27,28,30,36,37..MTM199201-199610

sub33101-26060

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18006iCR2#,3#,KR27,YR2#..MTM199201-199610

33111CPLUG(FOR TRANSMISSION CASE)

main90331-14004×4iCR2#,3#,KR27,YR2#..MTM199201-199610

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-12002×4iCR2#,3#,KR27,YR2#..MTM199201-199610

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-11001×2iCR2#,3#,KR27,YR2#..MTM199201-199610

main90253-15001×2iCR2#,3#,KR27,YR2#..MTM199201-199610

33111XGASKET, TRANSMISSION CASE PLUG

main90430-18008iCR2#,3#,KR27,YR2#..MTM199201-199610

33118PLATE, STIFFENER, RH(MTM)

main33118-12080iKR27..MTM199201-199610

main33118-14033iCR2#,3#..MTM199201-199610

main33118-28010iYR21..MTM199201-199610

33131RETAINER, BEARING, FRONT(MTM)

main33131-26020iCR2#,3#,KR27,YR2#..MTM199201-199610

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-30014iCR2#,3#,KR27,YR2#..MTM199201-199610

33132GASKET, FRONT BEARING RETAINER(MTM)

main33132-28010iCR2#,3#,KR27,YR2#..MTM199201-199610

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33151-35030iCR2#,3#,KR27,YR2#..MTM199201-199610

33449BMAGNET, TRANSMISSION

main33449-26010iCR2#,3#,KR27,YR2#..MTM199201-199610

9011908332

main90119-08332

9011910080

main90119-10080

9011912063

main90119-12063

9014980002

main90149-80002

9017910016

main90179-10016

9161160812

main91611-60812

9161161028

main91611-61028

9161161045

main91611-61045

9165161030

main91651-61030

9165161045

main91651-61045

26 parts on this diagram · 3 diagrams in section
