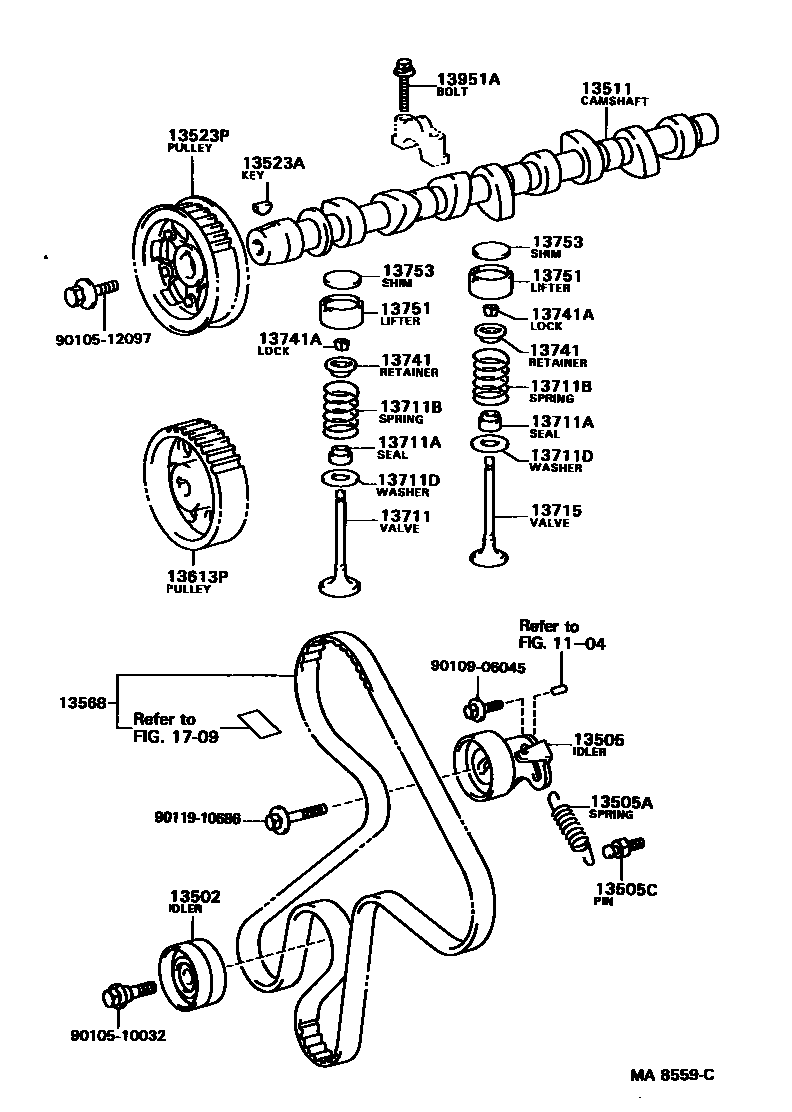

CAMSHAFT & VALVE

0001 1 0002 1 0003 1

1104

13502IDLER SUB-ASSY, TIMING BELT, NO.2

main13503-64020i2C#,3CT..CR2#,3#199201-199610

sub13503-64021

13505IDLER SUB-ASSY, TIMING BELT, NO.1

main13505-64011i2C#,3CT..CR2#,3#199201-199610

sub13505-64012

13505ASPRING, TENSION(FOR IDLER)

main90507-18006i2C#,3CT..CR2#,3#199201-199610

13505CPIN(FOR IDLER SPRING TENSION)

main13575-64010i2C#,3CT..CR2#,3#199201-199610

13511CAMSHAFT

main13501-13040i5KJ..KR27199201-199508

sub13501-13041

sub13501-13042

main13501-13042i5KJ..KR27199508-199610

sub13501-13043

main13511-64050i2C..CR27,36199201-199204

sub13511-64051

main13511-64051i2C..CR27,36199204-199309

main13511-64060i2CT..CR21,28,30,37199201-199204

sub13511-64061

main13511-64061i2CT..CR21,28,30,37199204-199309

main13511-64071i2C..CR27,36199309-199610

main13511-64090i3CT..CR22,29,31,38199309-199610

main13511-73902i2YJ,3YEU..YR2#,30199201-199610

13523GEAR OR SPROCKET, CAMSHAFT TIMING

main13522-33010i2YJ,3YEU..YR2#,30199201-199610

main13523-13030i5KJ..KR27199201-199610

13523AKEY, WOODRUFF(FOR TIMING GEAR)

main90280-05004i2C#,3CT..CR2#,3#199201-199610

main90280-05005i2YJ,3YEU..YR2#,30199209-199610

main90280-05010i2YJ,3YEU..YR2#,30199201-199209

13523PPULLEY, CAMSHAFT TIMING

main13051-64011i2C#..CR2#,3#199201-199205

sub13051-64012

main13051-64012i2C#,3CT..CR2#,3#199205-199610

13568BELT, TIMING

main13568-64011i2C#..CR2#,3#199201-199205

sub13568-69065

main13568-69065i2C#..CR2#,3#199205-199208

sub13568-69066

main13568-69066i2C#,3CT..CR2#,3#199208-199610

13613PPULLEY, INJECTION PUMP DRIVE

main13613-64011i2C#,3CT..CR2#,3#199201-199610

13711VALVE, INTAKE

main13711-24011i5KJ..KR27199201-199610

main13711-64020i2C#,3CT..CR2#,3#199201-199610

main13711-64030i3CT..CR22,29,31,38199502-199610

main13711-71010i2YJ,3YEU..YR2#,30199201-199610

13711ASEAL OR RING, O(FOR VALVE STEM OIL)

main90913-02057i5KJ..KR27199201-199508

sub90913-02094

main90913-02080i2YJ,3YEU..YR2#,30199201-199209

sub90913-02098

main90913-02094i2YJ,3YEU..YR2#,30199201-199610

main90913-02098i2YJ,3YEU..YR2#,30199209-199609

sub90913-02094

main90913-02110i2C,3CT..CR2#,3#199511-199610

13711BSPRING, COMPRESSION(FOR INNER)

main90501-42010i5KJ..KR27199201-199610

main90501-43003i2C#,3CT..CR2#,3#199201-199610

sub90501-43002

main90501-46001i2YJ,3YEU..YR2#,30199309-199610

main90501-47005i2YJ,3YEU..YR2#,30199201-199309

sub90501-46001

13711DWASHER, PLATE(FOR VALVE SPRING SEAT)

main90201-16002i5KJ..KR27199201-199610

main90201-16010i2C#,3CT..CR2#,3#199201-199610

main90201-21002i2YJ,3YEU..YR2#,30199201-199610

13715VALVE, EXHAUST

main13715-24013i5KJ..KR27199201-199610

main13715-64030i2C..CR27,36199201-199610

main13715-64040i2CT,3CT..CR21,22,28,29,30,31,37,38199201-199610

main13715-71010i2YJ,3YEU..YR2#,30199201-199610

13741RETAINER, VALVE SPRING

main13741-24020i5KJ..KR27199201-199610

main13741-43010i2C#,3CT..CR2#,3#199201-199610

main13741-63010i2YJ,3YEU..YR2#,30199201-199610

13741ALOCK, VALVE SPRING RETAINER

main90913-03005i5KJ..KR27199201-199610

main90913-03014i2C#,3CT..CR2#,3#199201-199610

13751LIFTER, VALVE

main13750-13020i5KJ..KR27199201-199610

sub13750-0W020

main13750-71010i2YJ,3YEU..YR2#,30199201-199608

sub13750-71020

main13750-71020i2YJ,3YEU..YR2#,30199608-199610

main13751-64011i2C#,3CT..CR2#,3#199201-199610

13753SHIM, VALVE ADJUSTING

main13753-64010i2C#,3CT..CR2#,3#199201-199610

main13753-64030i2C#,3CT..CR2#,3#199201-199610

main13753-64050i2C#,3CT..CR2#,3#199201-199610

main13753-64070i2C#,3CT..CR2#,3#199201-199610

main13753-64090i2C#,3CT..CR2#,3#199201-199610

main13753-64110i2C#,3CT..CR2#,3#199201-199610

main13753-64130i2C#,3CT..CR2#,3#199201-199610

main13753-64150i2C#,3CT..CR2#,3#199201-199610

main13753-64170i2C#,3CT..CR2#,3#199201-199610

main13753-64190i2C#,3CT..CR2#,3#199201-199610

main13753-64210i2C#,3CT..CR2#,3#199201-199610

main13753-64230i2C#,3CT..CR2#,3#199201-199610

main13753-64250i2C#,3CT..CR2#,3#199201-199610

main13753-64270i2C#,3CT..CR2#,3#199201-199610

main13753-64290i2C#,3CT..CR2#,3#199201-199610

main13753-64310i2C#,3CT..CR2#,3#199201-199610

main13753-64330i2C#,3CT..CR2#,3#199201-199610

main13753-64350i2C#,3CT..CR2#,3#199201-199610

main13753-64370i2C#,3CT..CR2#,3#199201-199610

main13753-64390i2C#,3CT..CR2#,3#199201-199610

main13753-64410i2C#,3CT..CR2#,3#199201-199610

main13753-64430i2C#,3CT..CR2#,3#199201-199610

main13753-64450i2C#,3CT..CR2#,3#199201-199610

main13753-64470i2C#,3CT..CR2#,3#199201-199610

main13753-64490i2C#,3CT..CR2#,3#199201-199610

13951SUPPORT, VALVE ROCKER, NO.1

main13952-24012i5KJ..KR27199201-199610

13951ABOLT(FOR ROCKER SUPPORT SET)

main90105-08028i5KJ..KR27199201-199610

main91621-60840i2C#,3CT..CR2#,3#199201-199610

1709

9010510032

main90105-10032

9010512097

main90105-12097

9010906045

main90109-06045

9011910686

main90119-10686
