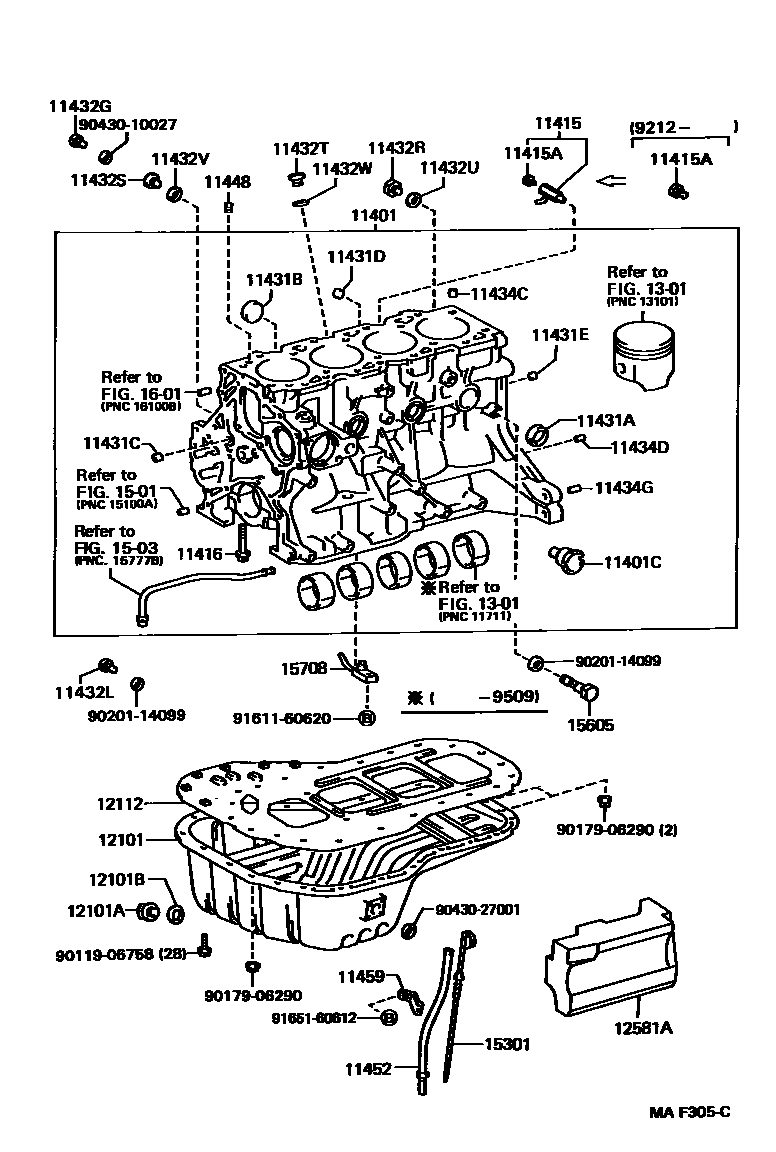

CYLINDER BLOCK

0001 1 0002 1 0003 1

11401BLOCK SUB-ASSY, CYLINDER

main11401-19335i5KJ..KR27199201-199504

sub11011-11010

main11401-19336i5KJ..KR27199504-199610

main11401-69355i2CT..CR21,28,30,37199201-199209

sub11401-69357

sub11115-64122

main11401-69356i2CT..CR21,28,30,37199209-199309

sub11401-69358

sub11115-64122

main11401-69425i2C..CR27,36199201-199209

sub11401-69427

sub11115-64122

main11401-69426i2C..CR27,36199209-199309

sub11401-69428

sub11115-64122

main11401-69466i2C..CR27,36199309-199504

sub11401-69468

sub11115-64122

main11401-69565i3CT..CR22,29,31,38199309-199504

sub11401-69567

sub11381-64020

sub15703-27010

main11401-69625i2C..CR27,36199504-199509

sub11701-64071

main11401-69626i2C..CR27,36199509-199610

sub11401-69627

sub11115-64170

main11401-69675i3CT..CR22,29,31,38199504-199506

sub11401-69678

sub11381-64020

sub15703-27010

main11401-69676i3CT..CR22,29,31,38199506-199509

sub11701-64071

main11401-69677i3CT..CR22,29,31,38199509-199610

sub11401-69679

sub11381-64020

sub11701-27011

sub15703-27010

main11401-79066i2YJ..YR25199201-199610

main11401-79088i3YEU..YR21,30199201-199308

main11401-79735i3YEU..YR21,30199308-199512

main11401-79736i3YEU..YR21,30199512-199610

11401CFLANGE(FOR WATER BY-PASS)

main16353-64010i2C#..CR2#,3#199201-199204

main16353-64011i2C#,3CT..CR2#,3#199204-199610

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09088i2C#..CR2#,3#199201-199212

main90910-09091i5KJ..KR27199504-199610

main96431-53828i5KJ..KR27199201-199504

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90345-52003i2C#,3CT..CR2#,3#199212-199610

main90910-09087i5KJ..KR27199504-199610

main96432-23814i2YJ,3YEU..YR2#,30199201-199504

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02019×10i5KJ..KR27199201-199610

main90910-02032×10i2YJ,3YEU..YR2#,30199201-199610

main90910-02061×10i2C#,3CT..CR2#,3#199201-199610

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main90331-47025i5KJ..KR27199201-199610

main96411-01800i2YJ,3YEU..YR2#,30199201-199610

main96411-43500×4i2C#,3CT..CR2#,3#199201-199610

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main96411-43000×4i2C#,3CT..CR2#,3#199201-199610

main96411-43500×4i2YJ,3YEU..YR2#,30199201-199610

main96411-44500i5KJ..KR27199201-199610

11431CPLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)

main96411-41800i2C#,3CT..CR2#,3#199201-199610

main96411-43500×3i5KJ..KR27199201-199610

main96411-45000i2YJ,3YEU..YR2#,30199201-199610

11431DPLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)

main96411-41800i2C#,3CT..CR2#,3#199201-199610

main96411-45000i2YJ,3YEU..YR2#,30199201-199610

11431EPLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)

main96411-41800×3i2C#,3CT..CR2#,3#199201-199610

main96412-01800i5KJ..KR27199201-199610

11432GPLUG, W/HEAD STRAIGHT SCREW, NO.5

main90341-10002i2C,3CT..CR2#,3#199309-199610

11432LPLUG, W/HEAD STRAIGHT SCREW, NO.4(FOR CYLINDER BLOCK)

main90341-14032i2C,3CT..CR2#,3#199309-199610

11432RPLUG, W/HEAD STRAIGHT SCREW, NO.1(FOR CYLINDER BLOCK)

main90341-18006×2i2CT,3CT..CR21,22,28,29,30,31,37,38199201-199610

11432SPLUG, W/HEAD STRAIGHT SCREW, NO.2(FOR CYLINDER BLOCK)

main90341-27002i2CT..CR21,28,30,37199201-199301

main90341-27006i2CT..CR21,28,30,37199301-199309

11432TPLUG, W/HEAD STRAIGHT SCREW, NO.3(FOR CYLINDER BLOCK)

main90341-22001i2CT,3CT..CR21,22,28,29,30,31,37,38199201-199610

11432UGASKET, STRAIGHT SCREW PLUG NO.1(FOR CYLINDER BLOCK)

main90430-18001×2i2CT,3CT..CR21,22,28,29,30,31,37,38199201-199610

11432VGASKET, STRAIGHT SCREW PLUG NO.2(FOR CYLINDER BLOCK)

main90210-27001i2CT..CR21,28,30,37199201-199309

11432WGASKET, STRAIGHT SCREW PLUG NO.3(FOR CYLINDER BLOCK)

main90430-22003i2CT,3CT..CR21,22,28,29,30,31,37,38199201-199610

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90250-08120×2i5KJ..KR27199201-199610

main90253-14001×2i2C#..CR2#,3#199201-199208

main90253-14002×2i2C#,3CT..CR2#,3#199208-199610

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-06068×2i2C#,3CT..CR2#,3#199201-199610

main90250-08120×2i5KJ..KR27199201-199610

11434GPIN, STRAIGHT(FOR END PLATE)

main90250-10113×2i2C#,3CT..CR2#,3#199201-199610

11448ORIFICE, CYLINDER BLOCK OIL

main11448-54020i2C#..CR2#,3#199201-199209

main11448-64020i2C#,3CT..CR2#,3#199209-199610

11452GUIDE, OIL LEVEL GAGE

main11452-13030i5KJ..KR27199201-199610

main11452-64020i2C#,3CT..CR2#,3#199201-199408

main11452-64021i2C,3CT..CR2#,3#199408-199610

main11452-71020i2YJ,3YEU..YR2#,30199201-199610

11459SUPPORT, OIL LEVEL GAGE GUIDE

main11459-71011i2YJ,3YEU..YR2#,30199201-199610

main90929-01026i2C#,3CT..CR2#,3#199201-199610

12101PAN SUB-ASSY, OIL

main12101-13070i5KJ..KR27199201-199610

main12101-64070i2C..CR27,36199201-199309

main12101-64071i2C..CR27,36199309-199408

main12101-64072i2C..CR27,36199408-199610

main12101-64090i2CT..CR21,28,30,37199201-199309

main12101-64150i3CT..CR22,29,31,38199309-199410

main12101-64151i3CT..CR22,29,31,38199410-199610

main12101-71031i2YJ,3YEU..YR2#,30199201-199610

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i5KJ..KR27199201-199208

main90341-12026i2C#,3CT..CR2#,3#199208-199610

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12027i5KJ..KR27199201-199304

main90430-12031i5KJ..KR27199312-199610

12112PAN, OIL NO.2

main12112-64050i2C#..CR2#,3#199201-199306

main12112-64051i2C#,3CT..CR2#,3#199306-199610

12581AINSULATOR, CYLINDER BLOCK, NO.1

main12581-64010i2CT,3CT..CR30,31,37,38..ATM199201-199402

1301

1501

1503

15301GAGE SUB-ASSY, OIL LEVEL

main15301-13040i5KJ..KR27199201-199610

main15301-64051i2C#..CR21,27,28,30,36,37199201-199408

main15301-64052i2C..CR27,36199408-199610

main15301-64070i3CT..CR22,29,31,38199309-199408

main15301-64071i3CT..CR22,29,31,38199408-199610

main15301-71020i3YEU..YR21,30199201-199610

main15301-72020i2YJ..YR25199201-199610

15605VALVE SUB-ASSY, OIL CHECK

main15605-64020i2C#,3CT..CR2#,3#199201-199610

15708NOZZLE SUB-ASSY, OIL, NO.1

main15790-64021×4i2C#,3CT..CR2#,3#199201-199610

sub15790-64030

sub90110-06034

1601

9011906758

main90119-06758

9017906290

main90179-06290

9020114099

main90201-14099

9043010027

main90430-10027

9043027001

main90430-27001

9161160620

main91611-60620

9165160612

main91651-60612

43 parts on this diagram · 3 diagrams in section
