HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-22030iKR2#,YR25198808-199201

main88412-28020iCR27,36,37198808-199201

sub88412-22230

main88412-28030iYR20..G198808-199201

88301ABEARING (FOR MAGNET CLUTCH)

main90099-10133iKR2#,YR25198808-199201

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-14050iKR26198808-199008

main88411-22151iCR27,36,37,YR36198808-199201

sub88411-30510

main88411-60040iKR27199008-199201

88320COMPRESSOR ASSY, COOLER

main88320-28031iYR20,25,28..B,D,N198808-199201

main88320-28101iKR2#198808-199201

main88320-28120iYR20,21,3#..4FC,5F198808-199201

sub88320-35H91

main88320-28130iCR27;CR36..5F;CR21..E,G,Q198808-199008

sub88320-60H90

main88320-28140iCR30198808-199201

88330AWASHER (FOR MAGNET CLUTCH)

main88335-12050iKR2#,YR25198808-199201

main88335-14020iYR20..08S198808-199201

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-12030iKR2#,YR25198808-199201

main88403-16011iYR20..08S198808-199201

88410CLUTCH ASSY, MAGNET

main88410-22080iKR26,YR25198808-199008

main88410-28020iCR27;CR36..5F;CR21,30..E,G,Q198808-199008

sub88410-28050

main88410-28030iYR20,21,3#..4FC,5F198808-199008

main88410-28040iYR21..Q199102-199109

main88410-28060iCR2#,3#199008-199201

main88410-60140iYR25..N;KR27,YR20,28..B,D199008-199201

sub88410-36390

88899JCASE, OIL

main88899-87011iCR21..E,G,Q198808-199201

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9009904349

main90099-04349

9009907087

main90099-07087

9009907094

main90099-07094

9009907114

main90099-07114

9009907125

main90099-07125

9411040800

main94110-40800

9451100800

main94511-00800

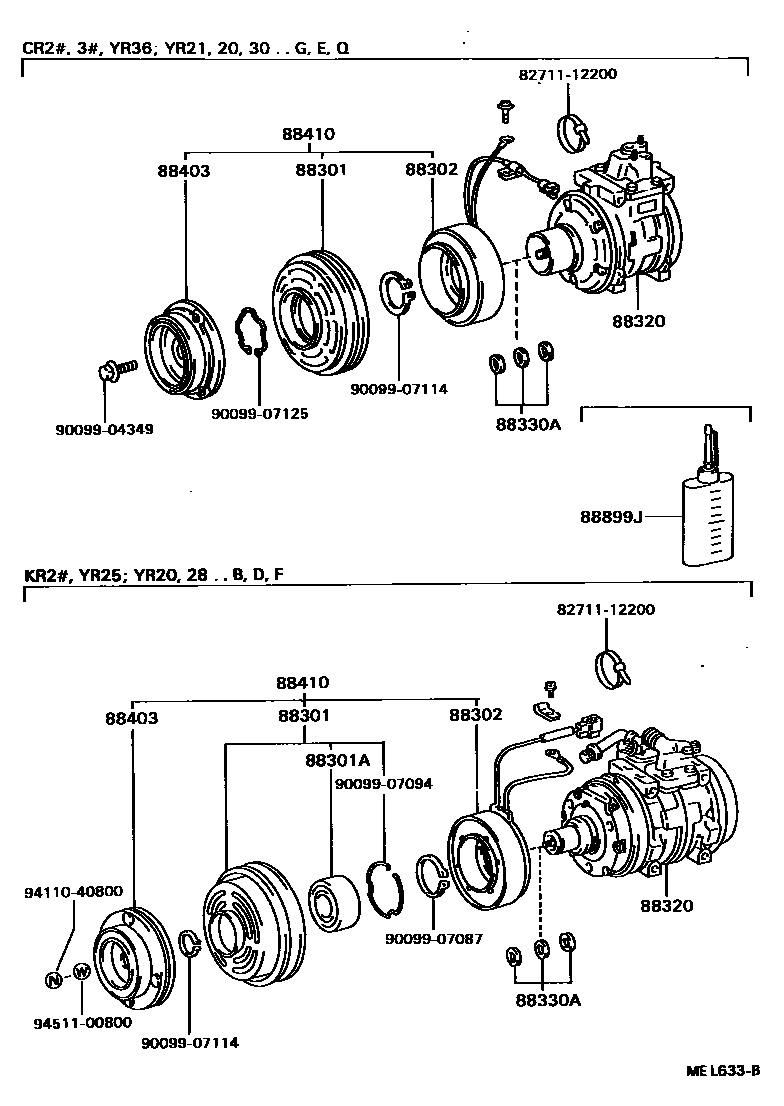

16 parts on this diagram · 3 diagrams in section
