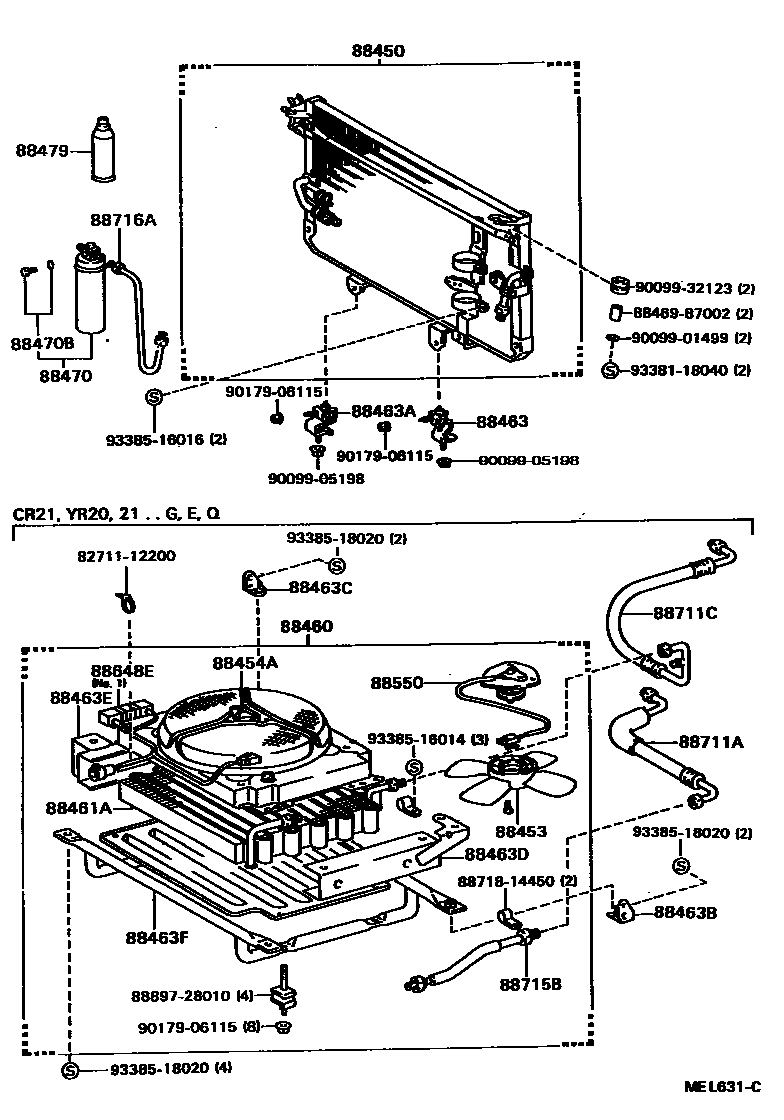

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1CONDENSER 0002 1CONDENSER 0003 1CONDENSER 0004 1CONDENSER 0005 1CONDENSER 0006 1PIPING 0007 1PIPING(1) 0008 1PIPING(2) 0009 1PIPING(1) 0010 1PIPING(2) 0011 1PIPING 0012 1PIPING 0013 1PIPING 0014 1PIPING(1) 0015 1PIPING(2) 0016 1PIPING(1) 0017 1PIPING(2) 0018 1PIPING(1) 0019 1PIPING(2) 0020 1PIPING 0021 1RADIATOR PACKING & CAUTION PL0022 1COOL BOX

88450CONDENSER ASSY, W/RECEIVER

main88450-87005iYR21..Q198808-199201

main88450-87007iYR21..Q198808-199201

sub88450-87005

main88450-87007iYR2#..B,D,E,G,N198808-199201

sub88450-87005

main88460-87010iCR2#,KR27199008-199201

88453FAN, COOLING (FOR CONDENSER)

main88453-28010iCR37198808-199201

88454ASHROUD, FAN

main88454-28010iCR37198808-199201

88460CONDENSER ASSY, COOLER

main88460-87008iCR21,YR20,21..E,G,Q198808-199201

main88460-87009iYR3#198808-199201

main88460-95D01iCR30..5F198808-199201

main88460-95D03iCR36..5F198808-199201

main88460-95D04iCR30..4FC198808-199201

main88460-95D05iCR30..4FC198808-199201

88461ACORE, COOLER CONDENSER

main88461-28010iCR37198808-199201

main88461-95D02iCR30..4FC198808-199201

main88461-95D03iCR30..4FC198808-199201

88463BRACKET, COOLER CONDENSER, NO.1

main88463-87010iCR27,KR26,YR20,25;CR21,YR21,28..B,E,G,Q198808-199201

main88688-95D05iYR3#198808-199201

88463ABRACKET, COOLER CONDENSER, NO.2

main88463-87009iCR27,KR26,YR20,25;CR21,YR21,28..B,E,G,Q198808-199201

main88688-95D12iYR36;YR30..5F198808-199201

88463BBRACKET, COOLER CONDENSER, NO.3

main88463-87014iCR21,YR20,21..E,G,Q198808-199201

main88688-95D03iCR30;YR30..4FC198808-199201

88463CBRACKET, COOLER CONDENSER, NO.4

main88463-87015iCR30,36..5F;CR21,YR20,21,3#..B,E,G,Q198808-199201

88463DBRACKET, COOLER CONDENSER, NO.5

main88463-28030iCR36;YR30..5F;CR21,37,YR20,21,36..B,E,G,Q198808-199201

main88463-95D09iCR30..4FC198808-199201

88463EBRACKET, COOLER CONDENSER, NO.6

main88463-28040iCR36..5F;CR21,YR20,21,3#..B,E,G,Q198808-199201

main88463-95D10iCR30..4FC198808-199201

88463FBRACKET, COOLER CONDENSER, NO.7

main88463-28050iYR30..5F;CR36,37,YR36198808-199201

main88463-95D08iCR30..4FC198808-199201

88470RECEIVER & DRYER ASSY, COOLER

main88470-14010iCR27,YR25..MTM198808-199201

sub04884-33110

main88471-16010iCR30,37,YR3#198808-199201

88470BBOLT, FUSE

main88475-12020iCR2#,3#,KR27,YR2#,3#198808-199201

88479FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)

main90986-02001iCR27,KR26,YR25,36198808-198910

sub90986-02004

sub90986-02005

main90986-02002iCR27,28,KR27;CR21,30..4FC;CR21..5F..(D,E,Q)199008-199201

sub90986-02004

main90986-02004iYR28;CR36,YR20..MTM..(D,N)198808-199201

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main88550-87002iCR30198808-199201

88648EWIRING, COOLER

main88648-28071iCR27198808-199201

NO.3

main88648-28090iCR30..5F..Q199102-199201

main88648-87004iKR26,YR20,25,28..B,D,N198808-199201

main88648-87012iCR36..5F;CR21,YR20,21,3#..B,E,G,Q198808-199201

main88648-87018iYR3#;CR30,36..5F198808-199201

main88648-87021iCR30198808-199201

main88648-87022iCR30..4FC198808-199201

main88648-87023iYR25..N;YR20,28..B,D198808-199201

main88648-87024iCR21,28..B,D,F199008-199201

NO.3

main88648-87024iCR21,28..B,D,F198808-199201

main88648-95D01iCR30198808-199201

main88648-95D02iCR30198808-199201

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-28050iCR2#199012-199201

sub88711-28610

main88711-87027iYR21..Q198808-199201

sub88711-28660

main88711-87028iKR2#198808-199201

sub88711-28740

main88711-87029iYR20,25,28..B,D,N198808-199201

sub88711-28730

main88711-87031iCR28198808-199012

main88711-87033iCR3#198808-199201

sub88711-28780

main88711-95D01iYR3#198808-199201

sub88711-28690

88711AHOSE, COOLER REFRIGERANT DISCHARGE, NO.2

main88711-87026iCR21,YR20,21..E,G,Q198808-199201

sub88711-28630

main88711-87034iYR21..Q198808-199201

sub88711-28800

main88711-95D03iCR30..5F198808-199201

sub88711-28700

main88711-95D04iYR3#198808-199201

sub88711-28680

main88711-95D07iCR36,37198808-199201

sub88711-28720

main88711-95D09iCR30..4FC198808-199201

sub88711-28750

88711CHOSE, COOLER REFRIGERANT DISCHARGE, NO.3

main88711-87025iCR21,YR20,21..E,G,Q198808-199201

sub88711-28640

main88711-87035iYR21..Q198808-199201

sub88711-28790

main88711-95D05iYR3#198808-199201

sub88711-28710

88715BPIPE, COOLER REFRIGERANT DISCHARGE, B

main88715-28020iCR36;YR30..5F;CR21,37,YR20,21,36..B,E,G,Q198808-199201

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-87055iCR21..E,G,Q198808-199201

main88716-95D05iCR3#,YR3#198808-199201

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8846987002SWITCH, PRESSURE CONTROL

main88469-87002

8871814450PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-14450

8889728010VALVE, COOLER MAGNET

main88897-28010

9009901499

main90099-01499

9009905198

main90099-05198

9009932123

main90099-32123

9017906115

main90179-06115

9338118040

main93381-18040

9338516014

main93385-16014

9338516016

main93385-16016

9338518020

main93385-18020

34 parts on this diagram · 22 diagrams in section
