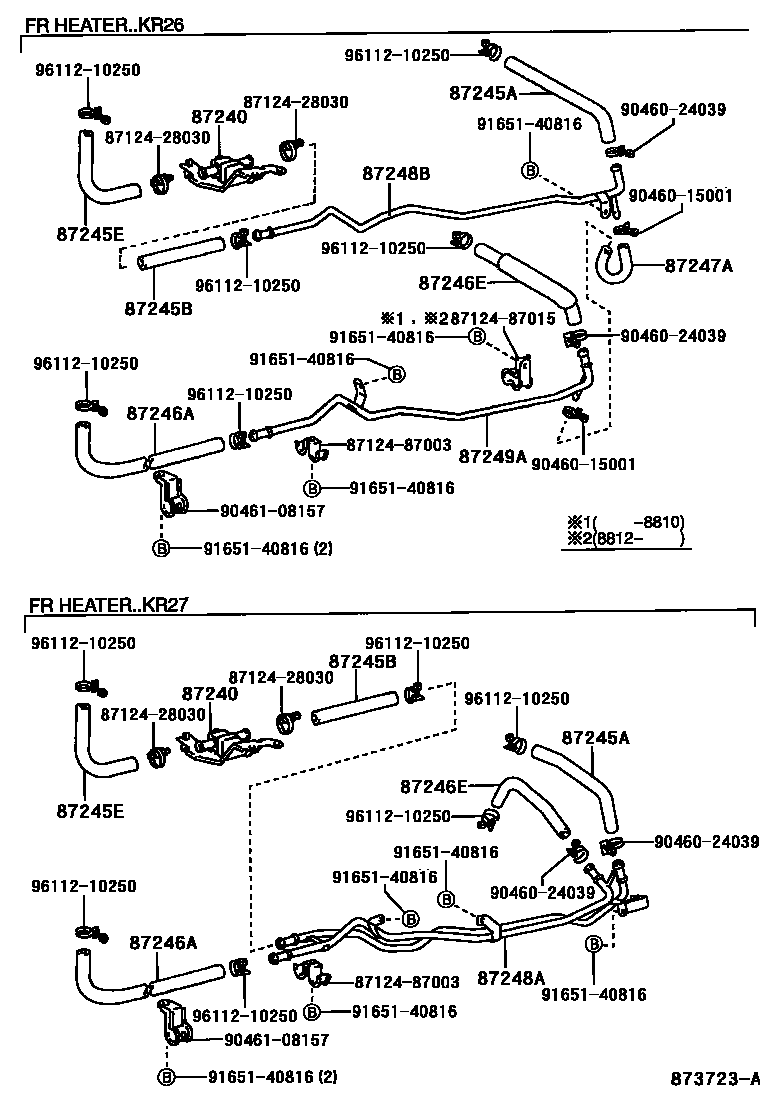

HEATING & AIR CONDITIONING - WATER PIPING

0001 1���� �-� 0002 1���� �-� 0003 1���� �-� 0004 1�� �-�

87240VALVE ASSY, HEATER WATER

main87240-87010iCR2#,30,37,KR2#,YR2#,3#198808-199201

87245AHOSE, HEATER WATER, INLET A

main87245-87014iYR2#198808-199201

main87245-87020iKR2#198808-199201

main87245-87030iCR2#198808-198907

main87245-95D09iYR3#198808-199201

main87245-95D11iCR2#,30,37198808-199201

87245BHOSE, HEATER WATER, INLET B

main99556-30400iCR2#,30,37,KR2#,YR2#,3#198808-199201

sub99556-30500

87245EHOSE, HEATER WATER, INLET E

main99556-30165iCR36198808-199201

sub99556-30200

87246AHOSE, HEATER WATER, OUTLET A

main99556-30590iCR27,YR25..MTM..D198808-198908

sub99556-30700

main99556-30700iCR36198908-199201

sub99556-31000

87246EHOSE, HEATER WATER, OUTLET E

main87245-87016iYR2#198808-199201

main87245-87017iCR2#198808-199201

main87245-87021iKR2#198808-199201

main87245-95D08iYR3#198808-199201

main87245-95D10iCR36198808-199201

87247AHOSE, HEATER WATER, A

main87245-87022iKR26198808-199008

87248APIPE, HEATER WATER INLET, A

main87208-28010iYR2#,3#198808-199201

main87208-87013iKR26198808-199008

main87208-87054iKR27199008-199201

87248BPIPE, HEATER WATER INLET, B

main87208-87018iCR2#..B,D,F,N198808-199201

main87208-87019iYR20,21..08S198808-199201

main87208-87020iYR20,25,28..B,D,N198808-199201

main87208-87023iCR21..D198808-199201

main87208-87045iYR21..E;YR20..HRF..4FC198908-199008

main87208-87045iYR21..E;YR20..HRF..4FC198908-199201

main87208-87045iYR20..MRF..4FC..E198808-199201

main87208-87045iYR21..Q198808-199201

main87208-87047iCR21..E198808-198908

main87208-87047iCR21..Q198808-199201

main87208-87047iCR21..E198908-199201

main87208-87049iYR30..E198808-198908

main87208-87049iYR30..E198908-199201

main87208-87049iYR30..Q198808-199201

main87208-87051iCR30..Q198808-199201

main87208-87051iCR30..E198908-199201

main87208-87051iCR30..E198808-198908

main87208-95D04iYR36198808-199201

main87208-95D05iYR36198808-199201

main87208-95D06iCR36,37198808-199201

main87208-95D07iCR36..V4D..05S198808-199201

87249APIPE, HEATER WATER OUTLET, A

main87208-87005iCR28;CR27..V4D..05S198808-199201

main87208-87007iCR2#,YR20,25,28..B,D,F,N198808-199201

main87208-87014iKR26198808-199008

main87208-87041iYR36198808-199201

main87208-87042iCR36..V4D..05S198808-199201

main87208-87043iYR36198808-199201

main87208-87044iCR36,37198808-199201

main87208-87046iYR21..E;YR20..HRF..4FC198908-199201

main87208-87046iYR20..MRF..E198808-199201

main87208-87046iYR20..MRF..4FC..E198908-199008

main87208-87046iYR21..Q198808-199201

main87208-87050iYR30..E198908-199201

main87208-87050iYR30..E198808-198908

main87208-87050iYR30..Q198808-199201

main87208-87052iCR30..E198808-198908

main87208-87052iCR30..Q198808-199201

main87208-87052iCR30..E198908-199201

main87208-87053iKR26198810-198812

8712428030CLAMP, HEATER

main87124-28030

8712487003CLAMP, HEATER

main87124-87003

8712487015CLAMP, HEATER

main87124-87015

9046015001

main90460-15001

9046024039

main90460-24039

9046108157

main90461-08157

9165140816

main91651-40816

9611210250

main96112-10250

18 parts on this diagram · 4 diagrams in section
