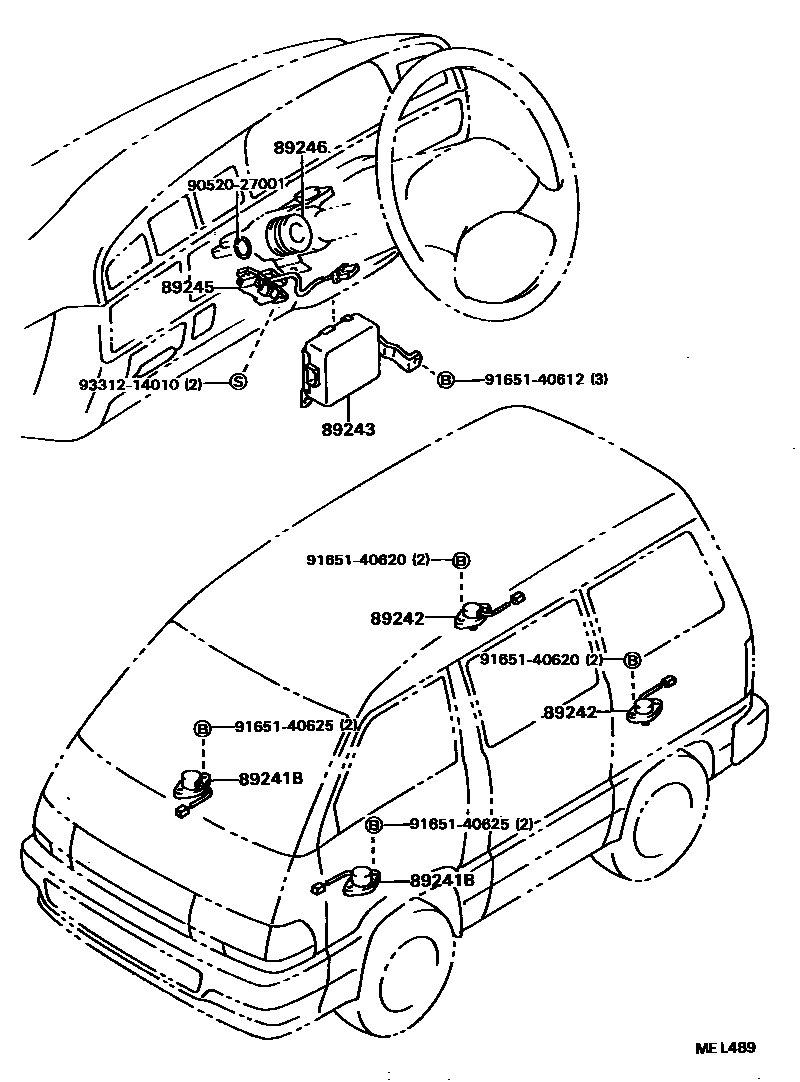

ELECTRONIC MODULATED SUSPENSION

89241BACTUATOR, ABSORBER CONTROL

main89241-27010×2iCR21,30,YR20,21,30..E,Q198808-199201

89242ACTUATOR, ABSORBER CONTROL, RR

main89242-27010×2iCR21,30,YR20,21,30..E,Q198808-199201

89243COMPUTER, ABSORBER CONTROL

main89243-28010iCR21,30,YR20,21,30..E,Q198808-199201

89245SENSOR, STEERING

main89245-22010iCR21,30,YR20,21,30..E,Q198808-199201

89246DISC, SENSOR STEERING

main89246-22010iCR21,30,YR20,21,30..E,Q198808-199201

9052027001

main90520-27001

9165140612

main91651-40612

9165140620

main91651-40620

9165140625

main91651-40625

9331214010

main93312-14010

10 parts on this diagram · 1 diagram in section
