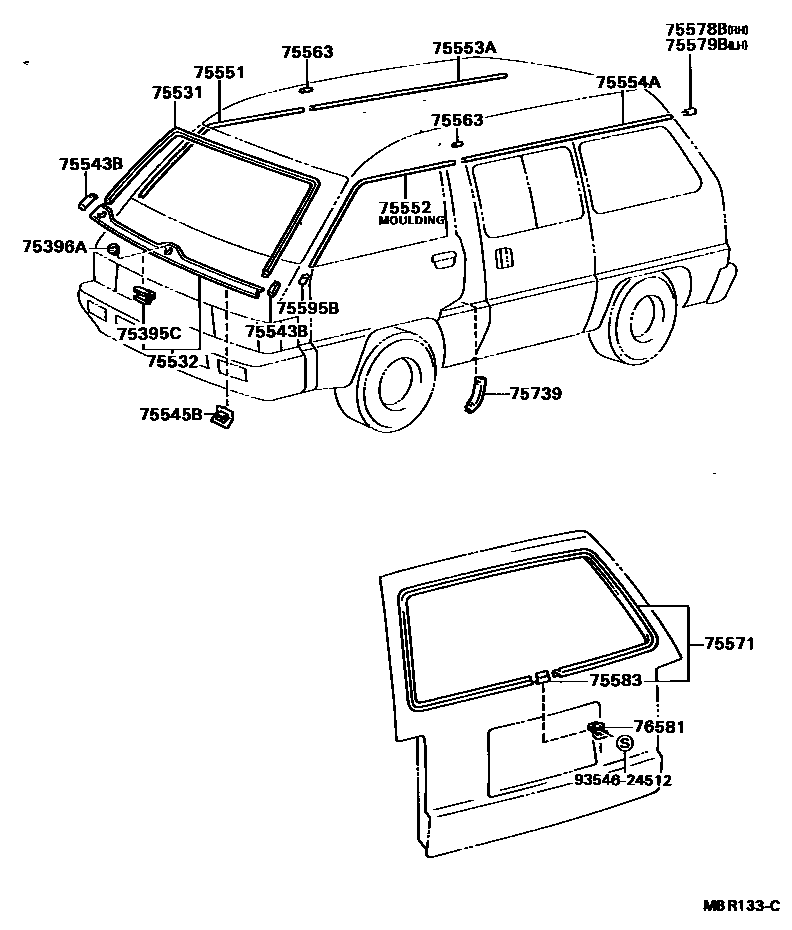

MOULDING

0001 1 0002 1 0003 1MASTER ACE(LARGE TYPE)

75395CCLIP, OUTSIDE MOULDING, NO.1

main75395-87004×4iCR2#,3#,KR2#,YR2#,3#198812-199201

75396CLIP, OUTSIDE MOULDING, NO.2

main76519-87001×6iCR21,30,YR20,21,30..E,Q198808-199201

75396ACLIP, OUTSIDE MOULDING, NO.2

main75396-87003×2iCR2#,3#,KR2#,YR2#,3#198808-199201

75531MOULDING, WINDSHIELD, OUTER UPPER

main75531-87003iCR2#,3#,KR2#,YR2#,3#198808-199201

75532MOULDING, WINDSHIELD, LOWER

main75504-87001iCR2#,3#,KR2#,YR2#,3#198808-199201

75543BCOVER, WINDSHIELD MOULDING JOINT, LOWER

main75543-87002iCR2#,3#,KR2#,YR2#,3#198808-199201

main75544-87002iCR2#,3#,KR2#,YR2#,3#198808-199201

75545BCLIP, WINDSHIELD OUTSIDE MOULDING, NO.1

main75545-87002×4iCR2#,3#,KR2#,YR2#,3#198808-199201

75551MOULDING, ROOF DRIP SIDE FINISH, RH

main75551-87006iCR2#,30,36,YR20,21,25,30..E,F,G,N,Q198808-199201

75552MOULDING, ROOF DRIP SIDE FINISH, LH

main75552-87006iCR2#,30,36,YR20,21,25,30..E,F,G,N,Q198808-199201

75553AMOULDING, ROOF DRIP SIDE FINISH, REAR RH

main75553-87005iCR2#,30,36,YR20,21,25,30..E,F,G,N,Q198808-199201

75554AMOULDING, ROOF DRIP SIDE FINISH, REAR LH

main75554-87005iCR2#,30,36,YR20,21,25,30..E,F,G,N,Q198808-199201

75563RETAINER, ROOF DRIP SIDE FINISH MOULDING, NO.1

main75563-87001iCR2#,30,36,YR20,21,25,30..E,F,G,N,Q198808-199201

main75563-87002iCR2#,30,36,YR20,21,25,30..E,F,G,N,Q198808-199201

75571MOULDING, BACK WINDOW, OUTSIDE UPPER

main75571-87001iCR21,30,YR20,21,30198808-199201

75578BCOVER, ROOF DRIP MOULDING END, REAR RH

main75578-87001iCR2#,36,37,KR2#,YR20,25,28,36..B,D198808-199201

75579BCOVER, ROOF DRIP MOULDING END, REAR LH

main75579-87001iCR2#,36,37,KR2#,YR20,25,28,36..B,D198808-199201

75583COVER, BACK WINDOW MOULDING JOINT, LOWER

main75583-87001iCR21,30,YR20,21,30198808-199201

75595BCOVER, ROOF DRIP SIDE MOULDING END, FRONT

main75595-95J00iCR2#,36,37,KR2#,YR20,25,28,36..B,D198808-199201

main75596-95J00iCR2#,36,37,KR2#,YR20,25,28,36..B,D198808-199201

75739MOULDING, DOOR EDGE PROTECTION

main75739-30030iCR2#,3#,KR2#,YR2#,3#198808-199201

sub75739-12011

76581RETAINER, BACK WINDOW OUTSIDE MOULDING

main76581-87001iCR21,30,YR20,21,30198808-199201

9354624512

main93546-24512

20 parts on this diagram · 3 diagrams in section
