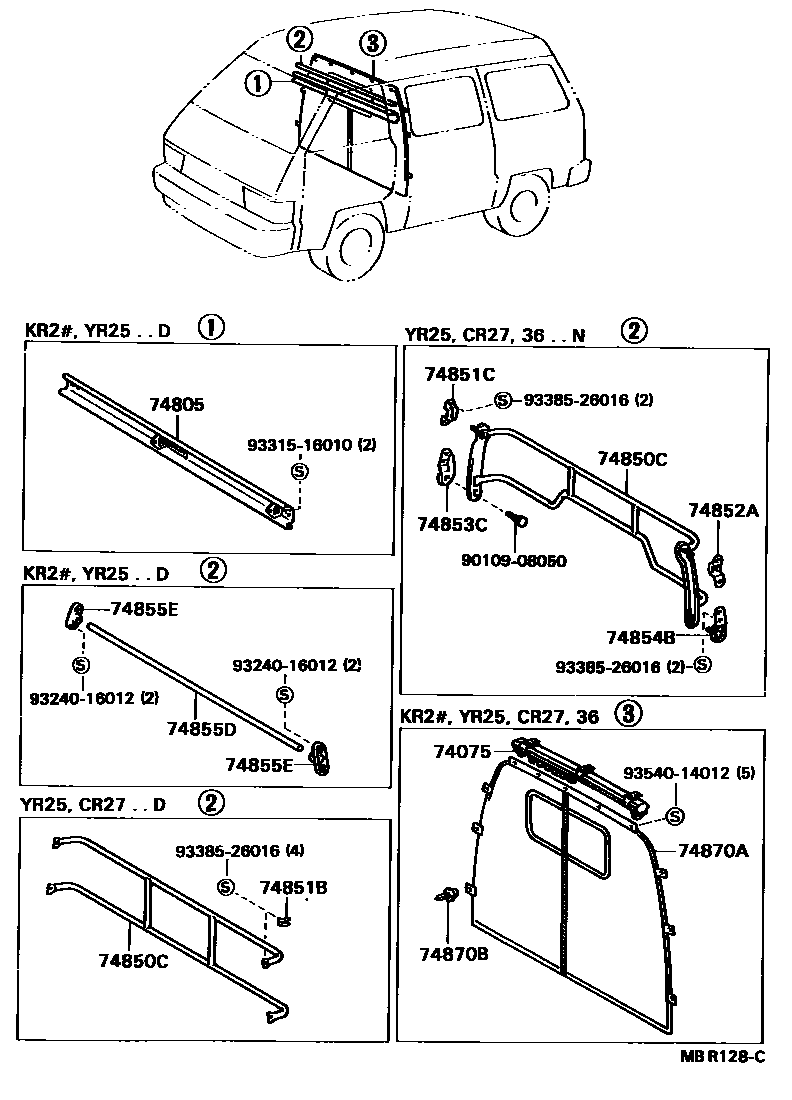

SEPARATOR & SEPARATOR CURTAIN

74075RAIL SET, SEPARATOR CURTAIN

main74075-87003iCR27,36,YR25..HRF..N198809-199201

74805SEPARATOR SUB-ASSY

main74805-87004iKR2#,YR25..MTM..D198808-199201

74850CBAR ASSY, SEPARATOR

main74850-87003iCR27,36,YR25..(02S,05S)..D198808-199201

main74850-87004iCR27,36,YR25..N198808-199201

74851BSHIM, SEPARATOR BAR

main90565-07005iCR27,36,YR25..(02S,05S)..D198808-199201

74851CBRACKET, SEPARATOR, UPPER RH

main74851-87003iCR27,36,YR25..N198808-199201

74852ABRACKET, SEPARATOR, UPPER LH

main74852-87002iCR27,36,YR25..N198808-199201

74853CBRACKET, SEPARATOR, LOWER RH

main74853-87001iCR27,36,YR25..N198808-199201

74854BBRACKET, SEPARATOR, LOWER LH

main74854-87002iCR27,36,YR25..N198808-199201

74855DBAR, SEPARATOR, UPPER

main74855-87004iKR2#,YR25..MTM..D198808-199201

74855EBRACKET, SEPARATOR BAR

main74855-95700×2iKR2#,YR25..MTM..D198808-199201

74870ACURTAIN ASSY, SEPARATOR

main74870-87003iCR27,36,KR2#,YR25..SRF..D198809-199201

main74870-87007iCR27,36,KR2#,YR25..HRF..D198809-199201

main74870-87008iCR27,YR25..SRF..N198808-198809

main74870-87009iCR27,36,YR25..HRF..N198808-198809

main74870-87011iCR27,YR25..SRF..N198810-199201

74870BHOOK, MALE(FOR SEPARATOR CURTAIN SET)

main58521-87202×13iCR27,36,KR26,YR25..SRF198808-198809

9010908050

main90109-08050

9324016012

main93240-16012

9331516010

main93315-16010

9338526016

main93385-26016

9354014012

main93540-14012

17 parts on this diagram · 1 diagram in section
