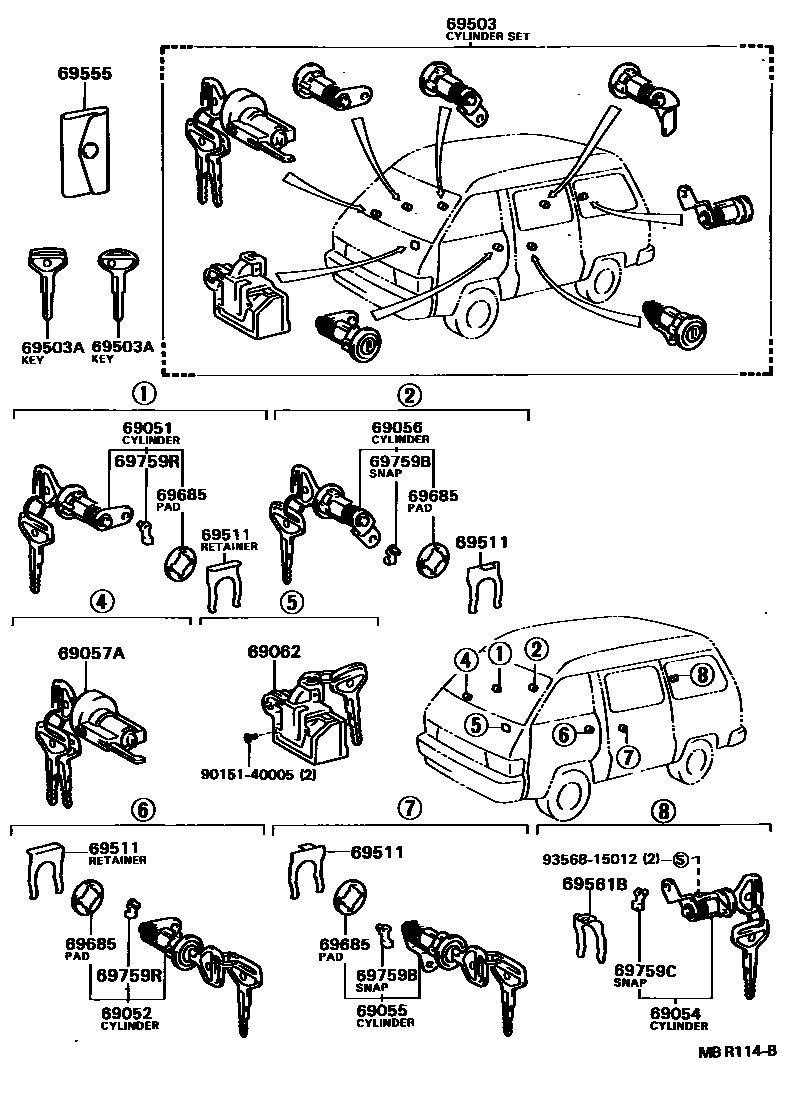

LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-87007iCR2#,3#,KR2#,YR2#,3#198808-199201

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-87007iCR2#,3#,KR2#,YR2#,3#198808-199201

69054CYLINDER & KEY SET, BACK DOOR LOCK

main69055-87009iCR21,30,YR20,21,30..E,Q198808-199201

sub69055-28012

main69055-87011iCR2#,3#,KR26,YR20,25,28,36..B,D,G,N198808-198902

main69055-87014iCR2#,3#,KR2#,YR20,25,28,36..B,D,F,G,N198902-199201

69055CYLINDER & KEY SET, REAR DOOR LOCK, LH

main69054-87005iCR2#,3#,KR2#,YR2#,3#198808-199201

69056CYLINDER & KEY SET, REAR DOOR LOCK, RH

main69053-87007iCR27,36,KR2#,YR25..V5D198808-199201

sub69053-28012

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-87003iCR2#,3#,KR2#,YR2#,3#198808-199201

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-87003-03iYR20..4FC..E;CR21,30,YR21,30..Q198808-199201

SHADOW GRAY,TRIM1#

sub69056-87003

main69056-87003-06iYR20..4FC..E;CR21,30,YR21,30..Q198808-199201

SABLE,TRIM4#

sub69056-87003

69503CYLINDER SET, LOCK

main69005-87039iCR21,30,YR20,21,30..E198808-199201

main69005-87046iCR27,36,KR26,YR25..V5D198808-198902

main69005-87047iCR27,36,KR26,YR25..V4D;CR21,28,30,37,YR20,28,36..B,D,G198808-198902

main69005-87048-03iCR21,30,YR21,30..Q198808-199201

SHADOW GRAY,TRIM1#

sub69005-87048

main69005-87048-06iCR21,30,YR21,30..Q198808-199201

SABLE,TRIM4#

sub69005-87048

main69005-87052iCR27,36,KR2#,YR25..V4D;CR21,28,30,37,YR20,28,36..B,D,F,G198902-199201

main69005-87053iCR27,36,KR2#,YR25..V5D198902-199201

69503AKEY, BLANK

main90999-00067iCR2#,3#,KR2#,YR2#,3#198808-199201

main90999-00071iCR21,30,YR21,30..Q198808-199201

main90999-00124iCR2#,3#,KR2#,YR2#,3#198808-199201

69511RETAINER, FRONT DOOR LOCK CYLINDER

main69512-87001iCR27,36,KR2#,YR25..V4D;CR21,28,30,37,YR20,21,28,3#198808-199201

69555COVER, KEY

main69555-20010iCR21,28,30,37,YR20,21,28,3#198808-199201

69561BRETAINER, BACK DOOR LOCK CYLINDER

main69511-32010iCR2#,3#,KR2#,YR20,25,28,36..B,D,F,G,N198808-199201

69685PAD, LOCK CYLINDER

main69513-87001iCR27,36,KR2#,YR25..V5D198808-199201

sub69513-32010

69759BSNAP, REAR DOOR LOCK CYLINDER

main69759-20090iCR27,36,KR26,YR25..V4D;CR21,28,30,37,YR20,21,28,3#198808-198809

main69759-30050iCR27,36,KR2#,YR25..V4D;CR21,28,30,37,YR20,21,28,3#198809-199201

69759CSNAP, BACK DOOR LOCK CYLINDER

main69759-20090iCR2#,3#,KR26,YR2#,3#198808-198809

main69759-30050iCR2#,3#,KR2#,YR2#,3#198809-199201

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-20080iYR20..5F..G;YR20..4FC,5H;CR2#,3#,KR26,YR21,25,28,3#..B,D,G,N,Q198808-198809

main69759-20090iCR2#,3#,KR26,YR2#,3#198808-198809

main69759-30040iCR2#,3#,KR2#,YR2#,3#198809-199201

main69759-30050iCR2#,3#,KR2#,YR2#,3#198809-199201

9015140005

main90151-40005

9356815012

main93568-15012

18 parts on this diagram · 1 diagram in section
