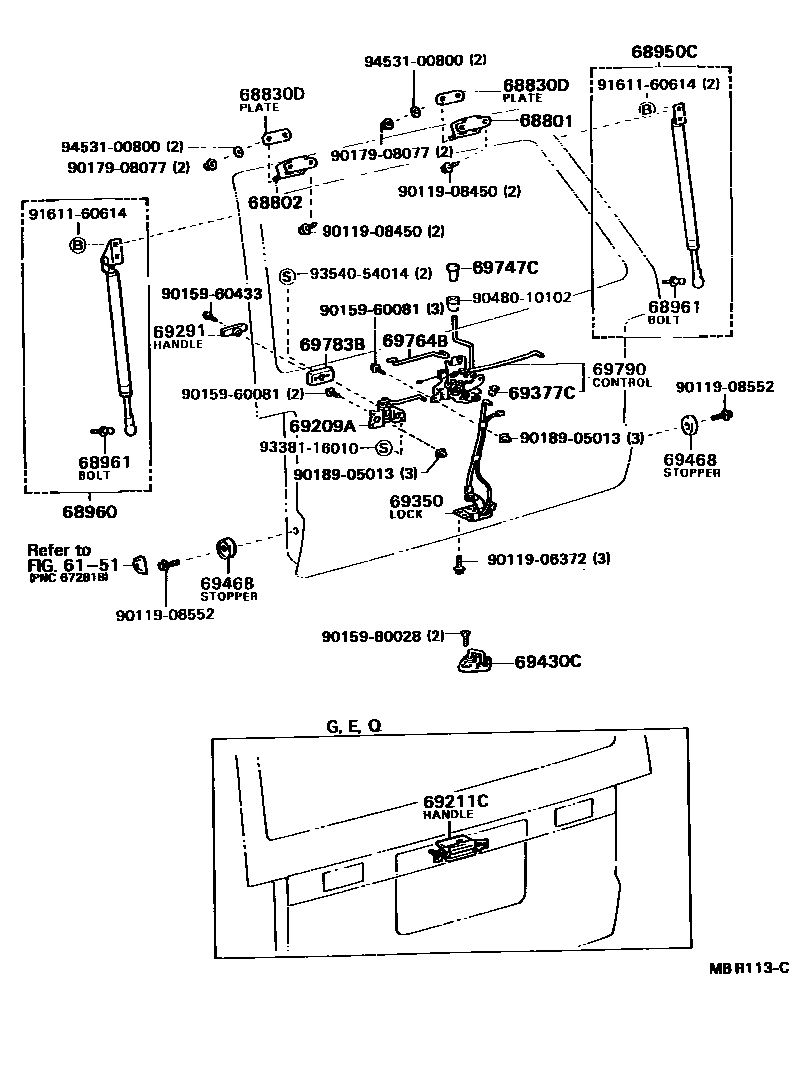

BACK DOOR LOCK & HINGE

6151

68801HINGE SUB-ASSY, BACK DOOR, UPPER RH

main68801-87003iCR2#,36,37,KR2#,YR20,25,28,36..B,D198808-199201

main68801-87004iCR2#,30,36,YR20,21,25,30..E,F,G,N,Q198808-199201

68802HINGE SUB-ASSY, BACK DOOR, UPPER LH

main68801-87003iCR2#,3#,KR2#,YR2#,3#198808-199201

68830DPLATE, BACK DOOR HINGE

main68715-87001×2iCR2#,3#,KR2#,YR2#,3#..B,D,E,F,G,N198808-199201

68950CSTAY ASSY, BACK DOOR, RH

main68950-29685iCR21,30,YR20,21,30..HRF..(E,Q)198808-199201

main68950-29695iCR27,28,36,YR25..HRF..(F,N)198808-199201

main68950-29705iCR27,28,36,37,KR2#,YR25,28,36..HRF198808-199201

main68950-29715iCR21,YR20..MRF..G198808-199201

main68950-29725iCR27,YR25..SRF..N;CR21,YR20..MRF..(D,G)198808-199201

main68950-29735iCR28,YR28..SRF198808-199201

main68950-29855iCR27,36,KR2#,YR25..SRF..D198808-199201

68960STAY ASSY, BACK DOOR, LH

main68960-29495iCR21,30,YR20,21,30..HRF..E198808-198908

main68960-29505iCR30,YR20..HRF..G198808-199201

main68960-29515iCR27,28,36,37,KR2#,YR25,28,36..HRF..(B,D)198808-199201

main68960-29525iCR27,28,36,37,KR2#,YR25,28,36..HRF..(B,D)198808-199201

main68960-29535iYR20..MRF..E198808-199201

main68960-29545iCR27,28,36,KR2#,YR25,28..SRF..(B,D)198808-199201

main68960-29555iCR27,YR25..SRF..N198808-199201

main68960-29565iCR27,28,36,KR2#,YR25,28..SRF..(B,D)198808-199201

68961BOLT, BACK DOOR STAY

main68961-87003×2iCR2#,3#,KR2#,YR2#,3#198808-199201

69209AHANDLE SUB-ASSY, BACK DOOR, INSIDE

main69209-87002iCR2#,30,36,YR20,21,25,30..E,F,N,Q198808-199201

69211CHANDLE, BACK DOOR OUTSIDE

main69230-87006iCR2#,3#,KR2#,YR2#,3#198808-199201

69291HANDLE ASSY, BACK DOOR INSIDE

main69291-95J00-13iCR2#,30,36,YR20,21,25,30..E,F,N,Q198808-199201

GRAY,TRIM1#

main69291-95J00-56iCR21,30,YR20,21,30..E,Q198808-199201

LIGHT SABLE,TRIM4#

69350LOCK ASSY, BACK DOOR

main69350-87007iCR2#,3#,KR2#,YR2#,3#198808-199201

69377CSNAP, DOOR LOCK CONTROL ROD

main69377-13020iCR2#,3#,KR2#,YR2#,3#198808-199201

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-87002iCR2#,3#,KR2#,YR2#,3#198808-199201

sub69430-95702

69468STOPPER, BACK DOOR SIDE MALE

main69463-87002×2iCR2#,3#,KR2#,YR2#,3#198808-199201

69747CBUTTON, DOOR LOCKING(FOR BACK DOOR)

main69743-87001iCR2#,30,36,YR20,21,25,30..E,F,N,Q199007-199201

main69747-87701iCR36..SRF..5F;CR27,KR26..V4D..(02S,03S)198808-199007

69764BLINK, BACK DOOR LOCK CONTROL, RH

main69764-87006iCR2#,30,36,YR20,21,25,30..E,F,N,Q198808-199201

69783BBEZEL, BACK DOOR INSIDE HANDLE

main69783-95J00-13iCR2#,30,36,YR20,21,25,30..E,F,N,Q198808-199201

GRAY,TRIM1#

main69783-95J00-46iCR21,30,YR20,21,30..E,Q198808-199201

LIGHT SABLE,TRIM4#

69790CONTROL ASSY, BACK DOOR LOCK

main69790-87009iCR2#,3#,KR26,YR20,25,28,36..B,D,G198808-198902

main69790-87010iCR21,30,YR21,30..Q198808-199201

main69790-87011iCR36..SRF;CR27,KR26..V4D..(02S,03S)198808-198902

main69790-87012iCR21,30,YR20,21,30..E198808-199201

main69790-87013iCR2#,3#,KR2#,YR20,25,28,36..B,D,G198902-199201

main69790-87014iCR27,28,36,YR25..F,N198902-199201

9011906372

main90119-06372

9011908450

main90119-08450

9011908552

main90119-08552

9015960081

main90159-60081

9015960433

main90159-60433

9015980028

main90159-80028

9017908077

main90179-08077

9018905013

main90189-05013

9048010102

main90480-10102

9161160614

main91611-60614

9338116010

main93381-16010

9354054014

main93540-54014

9453100800

main94531-00800

31 parts on this diagram · 1 diagram in section
