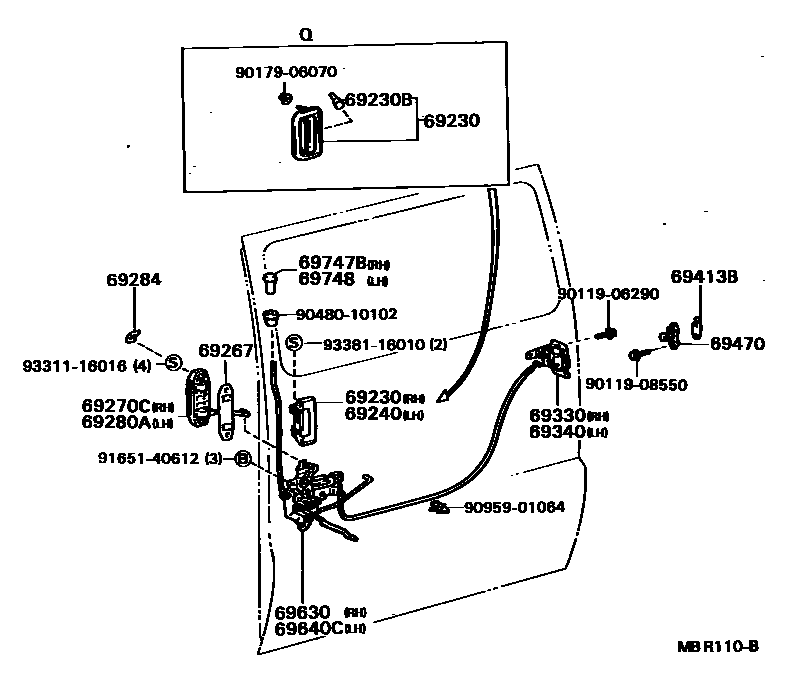

REAR DOOR LOCK & HANDLE

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-87003iCR27,36,KR2#,YR25..V5D198808-199201

69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)

main90541-03021iCR21,30,YR21,30..Q198808-199201

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69230-28010iCR21,30,YR21,30..Q198808-199201

main69240-87002iCR2#,3#,KR2#,YR2#,3#..B,D,E,F,G,N198808-199201

69267SEAL, SLIDE DOOR INSIDE HANDLE, NO.1

main69267-87001×2iCR27,36,KR2#,YR25..V4D;CR21,28,30,37,YR20,21,28,3#198812-199201

69270CHANDLE ASSY, FRONT SLIDE DOOR, INSIDE RH

main69270-87001-13iCR27,36,KR2#,YR25..V5D198808-199201

GRAY,TRIM1#

69280AHANDLE ASSY, SLIDE DOOR, INSIDE LH

main69280-87001-06iCR21,30,YR20,21,30..E,G,Q198808-199201

LIGHT SABLE,TRIM4#

main69280-87001-13iCR2#,3#,KR2#,YR2#,3#198808-199201

GRAY,TRIM1#

69284PLUG, SLIDE DOOR INSIDE HANDLE

main69284-87001-13×4iCR27,36,KR2#,YR25..V4D;CR21,28,30,37,YR20,21,28,3#198808-199201

GRAY,TRIM1#

main69284-87001-16×2iCR21,30,YR20,21,30..E,G,Q198808-199201

LIGHT SABLE,TRIM4#

69330LOCK ASSY, REAR DOOR, RH

main69330-87001iCR27,36,KR2#,YR25..V5D198808-199201

69340LOCK ASSY, REAR DOOR, LH

main69340-87001iCR2#,3#,KR2#,YR2#,3#198808-199201

69413BSHIM, DOOR LOCK STRIKER

main69413-87002iCR2#,3#,KR2#,YR2#,3#198808-199201

sub69413-28020

69470PLATE ASSY, SLIDE DOOR LOCK STRIKER

main69470-87001iCR27,36,KR2#,YR25..V4D;CR21,28,30,37,YR20,21,28,3#198808-199201

sub69470-95D00

69630CONTROL ASSY, SLIDE DOOR LOCK REMOTE

main69630-87003iCR27,36,KR26,YR25..V5D..D198808-198909

main69630-87004iCR27,YR25..V5D..N198808-198909

main69630-87005iCR27,36,KR2#,YR25..V5D..D198909-199201

main69630-87006iCR27,YR25..V5D..N198909-199201

69640CCONTROL ASSY, SLIDE DOOR LOCK REMOTE, LH

main69640-87003iCR2#,36,37,KR2#,YR20,25,28,36..B,D198808-199201

main69640-87004iCR2#,30,36,YR20,21,25,30..E,F,G,N198808-199201

main69640-87005iCR21,30,YR21,30..Q198808-199201

69747BBUTTON, DOOR LOCKING(FOR REAR DOOR)

main69743-87001iCR27,36,KR2#,YR25..V5D199007-199201

main69747-87701iCR27,36,KR26,YR25..V5D198808-199007

69748BUTTON, DOOR LOCKING

main69743-87001iCR2#,3#,KR2#,YR2#,3#199007-199201

main69747-87701iCR2#,3#,KR26,YR2#,3#198808-199007

9011906290

main90119-06290

9011908550

main90119-08550

9017906070

main90179-06070

9048010102

main90480-10102

9095901064

main90959-01064

9165140612

main91651-40612

9331116016

main93311-16016

9338116010

main93381-16010

23 parts on this diagram · 1 diagram in section
