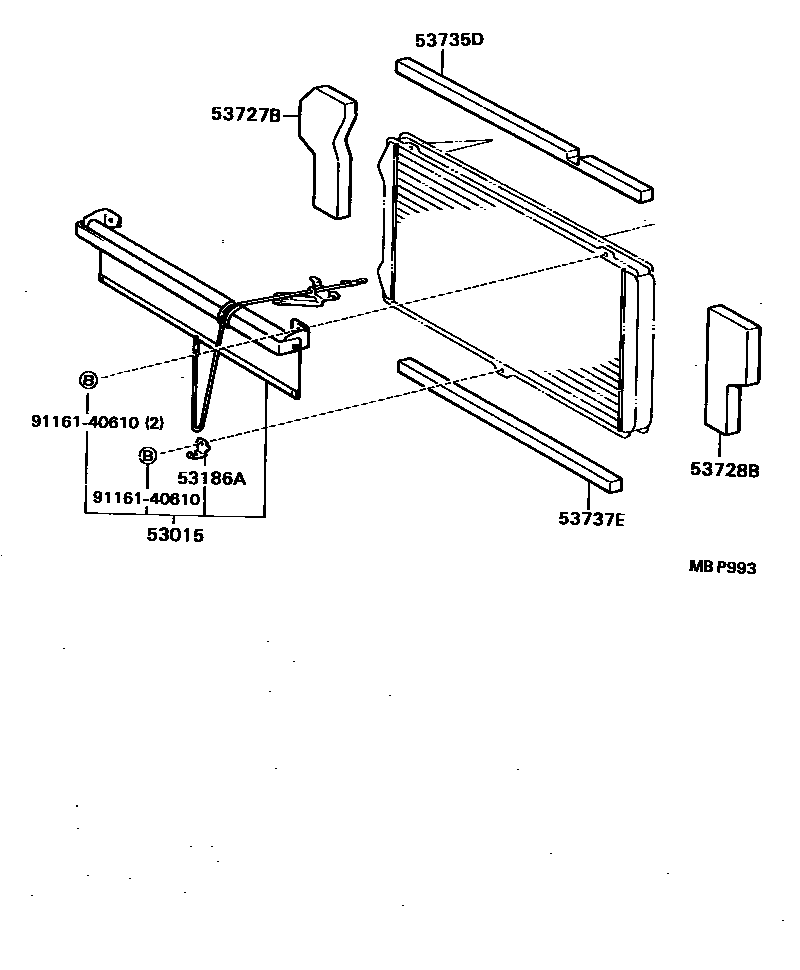

RADIATOR SUPPORT & WIND GUIDE

53015RADIATOR SHUTTER SET

main53015-95D00iCR30198808-199201

***

53186AHOOK, RADIATOR SHUTTER

main53186-95D00iCR30198808-199201

53727BSHUTTER, HOT AIR SIDE, RH

main53727-95D02iCR30,37198808-199201

53728BSHUTTER, HOT AIR SIDE, LH

main53728-95D02iCR30,37198808-199201

sub88578-95D01

53735DSHUTTER, HOT AIR, UPPER

main53735-95D00iCR30,37..5F198808-199201

main53735-95D01iCR30..4FC198808-199201

53737ESHUTTER, HOT AIR, LOWER

main53737-95D00iCR30,37198808-199201

9116140610

main91161-40610

7 parts on this diagram · 1 diagram in section
