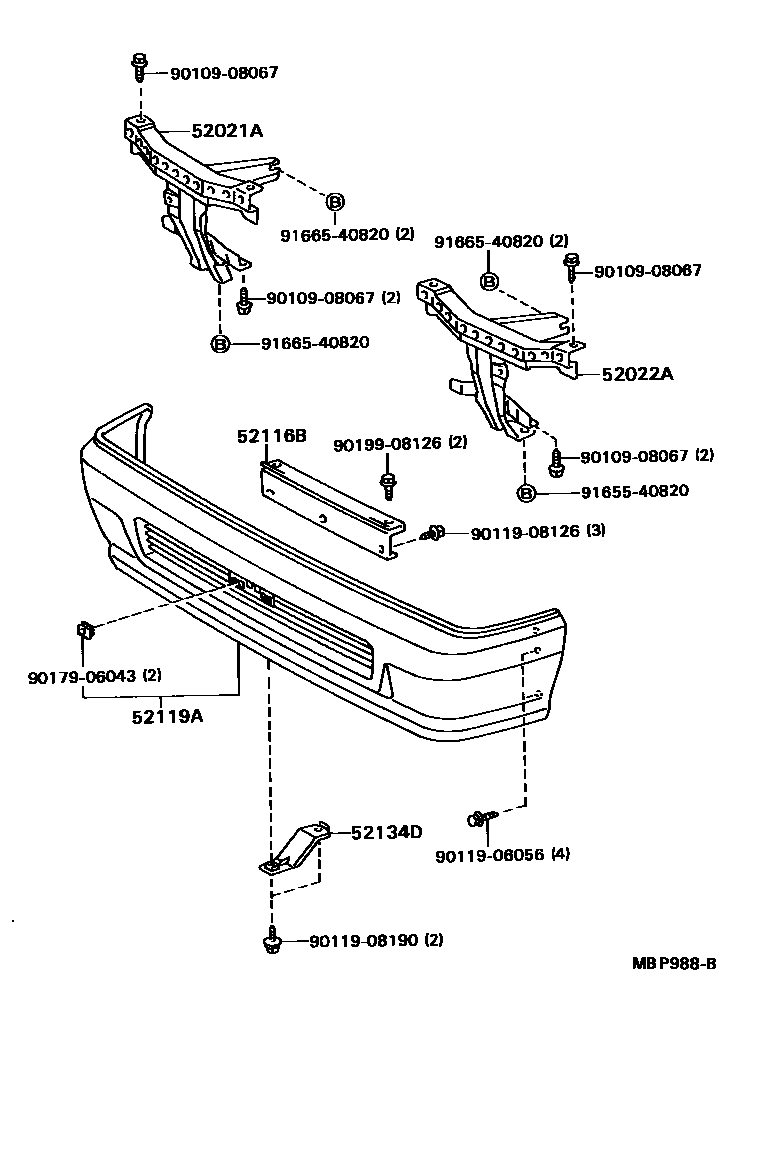

FRONT BUMPER & BUMPER STAY

0001 1TOWNACE 0002 1MASTER ACE

52021AREINFORCEMENT SUB-ASSY, FRONT BUMPER, RH

main52021-87003iCR2#,3#,KR2#,YR2#,3#198808-199201

main52021-87004iCR21,28,30,37,YR20,21,28,3#198808-199201

52022AREINFORCEMENT SUB-ASSY, FRONT BUMPER, LH

main52022-87003iCR2#,3#,KR2#,YR2#,3#198808-199201

main52022-87004iCR21,28,30,37,YR20,21,28,3#198808-199201

52116BRETAINER, FRONT BUMPER

main52116-87002iCR2#,3#,KR2#,YR2#,3#198808-199201

52119ACOVER, FRONT BUMPER

main52119-87010iCR2#,3#,KR2#,YR20,25,28,36..B,D,F,G,N198808-199201

main52119-87014-02iCR21,30,YR20,21,30..E,Q198808-199201

RED MICA,3H4

main52119-87014-03iCR21,30,YR20,21,30..E,Q198808-199201

SILVER M.,148

main52119-87014-04iCR21,30,YR20,21,30..E,Q198808-199201

LIGHT BLUE M.,8D8

main52119-87014-06iCR21,30,YR20,21,30..E,Q198808-199201

REDDISH BROWN M.,21L ,4K6

main52119-87014-08iCR21,30,YR20,21,30..E,Q198908-199201

WHITE,045

main52119-87014-13iCR21,30,YR20,21,30..E,Q198808-199201

GRAY M.,168 ,20L

main52119-87014-16iCR21,30,YR20,21,30..E,Q198808-199201

L. REDDISH BROWN M.,4K7

main52119-87015iCR21,28,30,37,YR20,28,36..B,D,F,G198808-199201

main52119-87016-02iCR21,30,YR20,21,30..E,Q198808-199201

main52119-87016-03iCR21,30,YR20,21,30..E,Q198808-199201

main52119-87016-04iCR21,30,YR20,21,30..E,Q198808-199201

main52119-87016-08iCR21,30,YR20,21,30..E,Q198908-199201

main52119-87016-16iCR21,30,YR20,21,30..E,Q198808-199201

main52119-87017-06iCR21,30,YR20,21,30..E,Q198808-199201

main52119-87017-13iCR21,30,YR20,21,30..E,Q198808-199201

main52119-87019iCR21,30,YR21,30..E198903-198903

main52119-87020iCR21,30,YR21,30..E198903-198903

main52119-87021iCR21,30,YR21,30..E198909-198910

main52119-87022-06iCR21,30,YR21,30..E198912-199001

52134DREINFORCEMENT, FRONT BUMPER STAY

main52134-87001iCR2#,3#,KR2#,YR2#,3#198808-199201

main52134-87002iCR21,28,30,37,YR20,21,28,3#198808-199201

9010908067

main90109-08067

9011906056

main90119-06056

9011908126

main90119-08126

9011908190

main90119-08190

9017906043

main90179-06043

9019908126

main90199-08126

9165540820

main91655-40820

9166540820

main91665-40820

13 parts on this diagram · 2 diagrams in section
