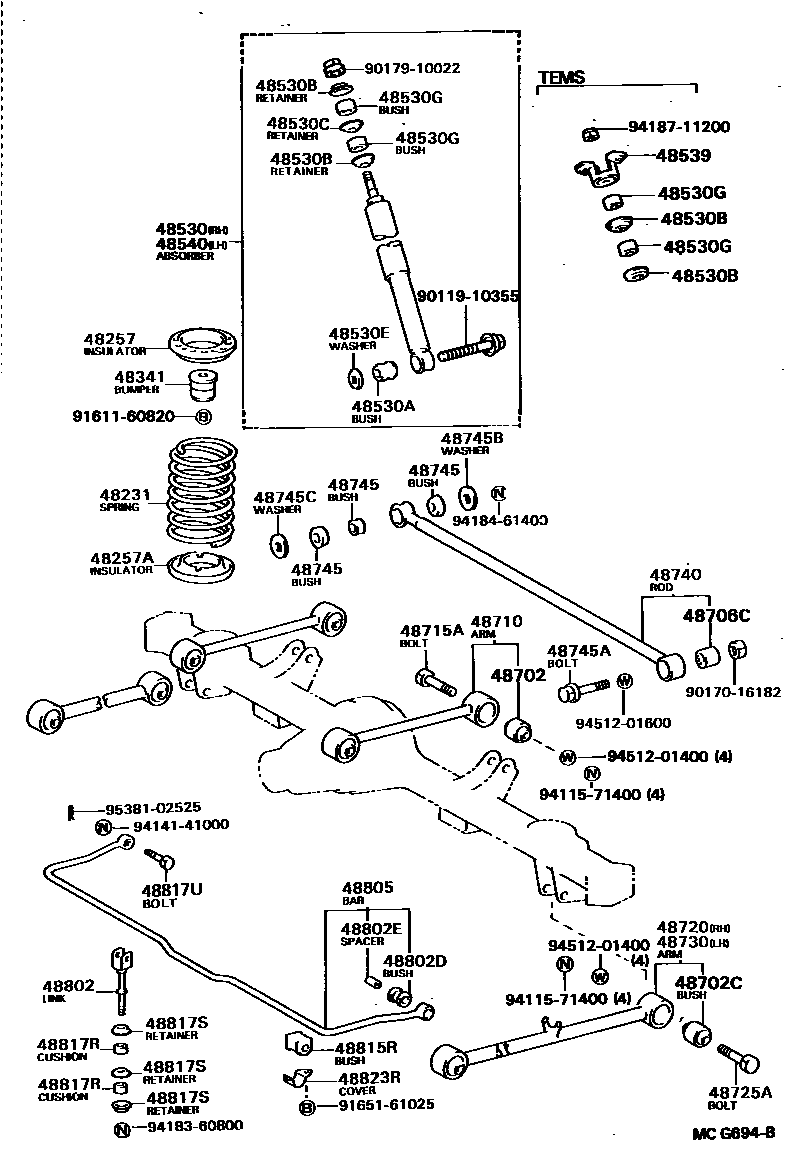

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0004 1 0005 1

48231SPRING, COIL, REAR

main48231-28120iCR21,YR20..D,G198808-199201

main48231-28130iCR21,YR20,21..E,Q198808-199201

main48231-28140iCR21,YR20,21..E,Q198808-199201

main48231-28150iCR30,YR30..E,Q198808-199201

main48231-28200iCR30..G198808-199201

48257INSULATOR, REAR COIL SPRING

main48257-28011iCR21,30,YR20,21,30198808-199201

48257AINSULATOR, REAR COIL SPRING, LOWER

main48258-28010iCR21,30,YR20,21,30198808-199201

48341BUMPER, REAR SPRING

main48341-28040iCR21,30,YR20,21,30198808-199201

main48341-35020iCR27,36,37,KR2#,YR25,28,36198808-199201

main48341-35030iCR28198808-199201

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-80018iCR27,28,KR2#,YR25,28198808-199201

sub48531-80594

main48531-80067iCR21,YR20,21..E198808-199201

sub48531-80601

main48531-80068iCR21,YR20,21..E198808-199201

sub48531-80602

main48531-80068iCR21,YR21..Q198808-199201

sub48531-80602

main48531-80069iCR30,YR30..E198808-199201

sub48531-80603

main48531-80210iCR21,YR20..D,G198808-199201

sub48531-80617

main48531-80215iCR21,YR20..D,G198808-199201

sub48531-80618

main48531-80215iCR21,YR20,21..E198808-199201

sub48531-80618

main48531-80220iCR21,YR20,21..E198808-199201

sub48531-80619

main48531-80235iCR30,YR30..E198808-199201

sub48531-80250

main48531-80240iCR36198808-199102

sub48531-80241

main48531-80241iCR36199102-199201

sub48531-80613

main48531-80250iCR30..G198808-199201

sub48531-80621

main48531-80255iCR37,YR36198808-199102

sub48531-80256

main48531-80256iCR37,YR36199102-199201

sub48531-80612

sub90948-03004

sub90948-03007

sub91611-61016

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-16004iCR21,YR20,21198808-199201

main90385-16009iCR27,28,36,37,KR26,YR25,28,36198904-199201

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-02002iCR21,30,YR20,21,30..08S,09S198808-199201

main90948-02045iCR21,30,YR20,21,30..08S,09S198808-199201

main90948-02070iCR21,30,YR21,30..Q198808-199201

main90948-02070iCR21,30,YR21,30..Q198808-199201

main90948-02101iCR21,30,YR21,30..Q198808-199201

main90948-02101iCR21,30,YR21,30..Q198808-199201

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-02050iCR21,30,YR20,21,30..08S,09S198808-199201

48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4

main90948-03004iCR21,YR20,21198808-199201

48530GCUSHION, REAR SHOCK ABSORBER, NO.1

main90540-10002iCR21,30,YR20,21,30..08S,09S198808-199201

main90540-10005iCR21,30,YR20,21,30..08S,09S198808-199201

main90948-01026iCR21,30,YR21,30..Q198808-199201

main90948-01026iCR21,30,YR20,21,30..E198808-199201

main90948-01032iCR21,30,YR20,21,30..E198808-199201

main90948-01032iCR21,30,YR21,30..Q198808-199201

48539BRACKET, ACTUATOR SUPPORT, RR

main48539-28010iCR21,30,YR20,21,30..E,Q198808-199201

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-80018iCR27,28,KR2#,YR25,28198808-199201

sub48531-80594

main48531-80067iCR21,YR21..Q198808-199201

sub48531-80601

main48531-80068iCR21,YR20,21..E198808-199201

sub48531-80602

main48531-80068iCR21,YR21..Q198808-199201

sub48531-80602

main48531-80069iCR30,YR30..E198808-199201

sub48531-80603

main48531-80210iCR21,YR20..D,G198808-199201

sub48531-80617

main48531-80215iCR21,YR20..D,G198808-199201

sub48531-80618

main48531-80215iCR21,YR20..D,G198808-199201

sub48531-80618

main48531-80220iCR21,YR20,21..E198808-199201

sub48531-80619

main48531-80235iCR30,YR30..E198808-199201

sub48531-80250

main48531-80240iCR36198808-199102

sub48531-80241

main48531-80241iCR36199102-199201

sub48531-80613

main48531-80250iCR30..G198808-199201

sub48531-80621

main48531-80255iCR37,YR36198808-199102

sub48531-80256

main48531-80256iCR37,YR36199102-199201

sub48531-80612

sub90948-03004

sub90948-03007

sub91611-61016

48702BUSH SUB-ASSY, UPPER CONTROL ARM

main48702-28050iCR21,30,YR20,21,30198808-199201

48702CBUSH SUB-ASSY, LOWER CONTROL ARM

main48704-28010iCR21,30,YR20,21,30198808-199201

48706CBUSH SUB-ASSY, LATERAL CONTROL ROD

main48706-28010iCR21,30,YR20,21,30198808-199201

48710ARM ASSY, UPPER CONTROL

main48710-28050iCR21,YR20,21198808-199201

main48710-28060iCR30,YR30198808-199201

48715ABOLT, HEXAGON(FOR UPPER CONTROL ARM)

main90105-14016iCR21,30,YR20,21,30198808-199201

48720ARM ASSY, LOWER CONTROL, RH

main48720-28040iCR21,YR20,21198808-199201

main48720-28050iCR30,YR30198808-199201

48725ABOLT(FOR LOWER CONTROL ARM)

main90105-14017iCR21,30,YR20,21,30198808-199201

48730ARM ASSY, LOWER CONTROL, LH

main48730-28040iCR21,YR20,21198808-199201

main48730-28050iCR30,YR30198808-199201

48740ROD ASSY, REAR LATERAL CONTROL

main48740-28010iCR21,YR20,21198808-199201

main48740-28020iCR30,YR30198808-199201

main48740-28030iCR30,YR30..5F198908-199201

sub48740-28020

main48740-28040iCR21,YR20,21..MTM198908-199201

sub48740-28010

48745BUSH, LATERAL CONTROL ROD

main90385-20001iCR21,30,YR20,21,30198808-199201

ROD X HOUSING, L=15

main90386-20001iCR21,30,YR20,21,30198808-199201

ROD X HOUSING, L=12

48745ABOLT, HEXAGON(FOR LATERAL CONTROL ROD)

main90105-16006iCR21,30,YR20,21,30198808-198908

main90105-16015iCR21,30,YR20,21,30198908-199201

48745BWASHER, LATERAL CONTROL ROD CUSHION

main90201-15019iCR21,30,YR20,21,30198808-199201

48745CWASHER, LATERAL CONTROL ROD CUSHION

main94612-12000iCR21,30,YR20,21,30198808-199201

48802LINK SUB-ASSY, STABILIZER

main48802-28010iCR21,YR20,21198808-199201

main48802-28020iCR30,YR30198808-199201

48802DBUSH, STABILIZER LINK

main90385-11021iCR21,30,YR20,21,30198808-199201

48802ESPACER(FOR REAR STABILIZER BAR)

main90560-10275iCR21,30,YR20,21,30198808-199201

48805BAR SUB-ASSY, REAR STABILIZER

main48805-28010iCR30,YR30198808-199201

main48805-28040iCR21,YR20,21198808-199201

48815RBUSH, STABILIZER(FOR REAR)

main48815-30040iCR21,YR20,21198808-199201

main48815-30060iCR30,YR30198808-199201

48817RCUSHION, STABILIZER(FOR REAR)

main48817-12010iCR21,30,YR20,21,30198808-199201

48817SRETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)

main90948-02024iCR21,30,YR20,21,30198808-199201

main90948-02025iCR21,30,YR20,21,30198808-199201

48817UBOLT(FOR REAR STABILIZER)

main90102-10015iCR21,30,YR20,21,30198808-199201

48823RCOVER, STABILIZER LINK(FOR REAR)

main48823-28020iCR21,30,YR20,21,30198808-199201

9011910355

main90119-10355

9017016182

main90170-16182

9017910022

main90179-10022

9161160820

main91611-60820

9165161025

main91651-61025

9411571400

main94115-71400

9414141000

main94141-41000

9418360800

main94183-60800

9418461400

main94184-61400

9418711200

main94187-11200

9451201400

main94512-01400

9451201600

main94512-01600

9538102525

main95381-02525

47 parts on this diagram · 5 diagrams in section
