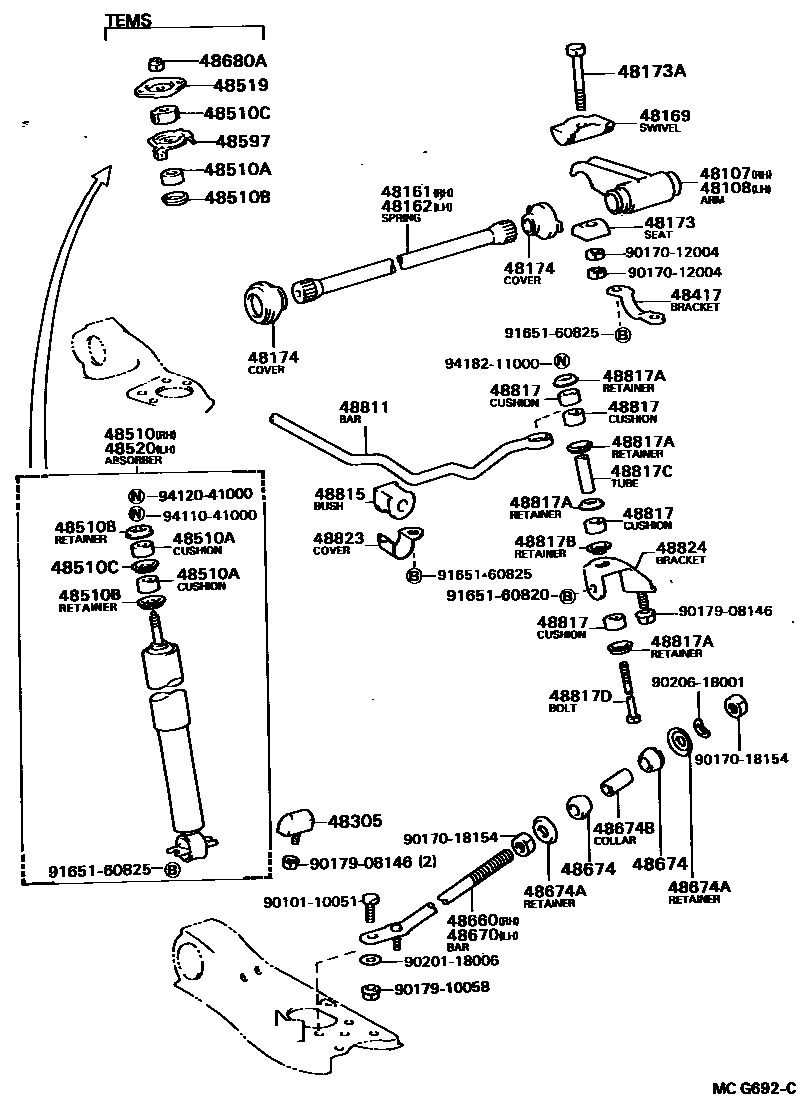

FRONT SPRING & SHOCK ABSORBER

0001 1 0003 1

48107ARM SUB-ASSY, ANCHOR, RH

main48107-28010iCR2#,3#,KR2#,YR2#,3#198808-199201

sub48107-27060

sub48175-27030

48108ARM SUB-ASSY, ANCHOR, LH

main48108-28010iCR2#,3#,KR2#,YR2#,3#198808-199201

sub48108-27060

sub48175-27030

48161SPRING, TORSION BAR, RH

main48161-28010iCR27,28,YR25,28..B,F,N198808-199201

main48161-28020iCR21,KR26,YR20,21198808-199201

main48161-28030iCR27,KR27,YR25..D198808-199201

main48161-28040iCR3#,YR3#198808-199201

48162SPRING, TORSION BAR, LH

main48162-28010iCR27,28,YR25,28..B,F,N198808-199201

main48162-28020iCR21,KR26,YR20,21198808-199201

main48162-28030iCR27,KR27,YR25..D198808-199201

main48162-28040iCR3#,YR3#198808-199201

48169SWIVEL, ANCHOR ARM

main48169-28010iCR2#,KR2#,YR2#198808-199201

main48169-28020iCR3#,YR3#198808-199201

48173SEAT, ANCHOR ARM ADJUSTER

main48173-27010iCR2#,3#,KR2#,YR2#,3#198808-199201

48173ABOLT, HEXAGON(FOR ANCHOR ARM ADJUSTING)

main90101-12096iCR2#,3#,KR2#,YR2#,3#198808-199201

48174COVER, TORSION BAR DUST

main48174-27010iCR2#,3#,KR2#,YR2#,3#198808-199201

main48175-27010iCR2#,3#,KR2#,YR2#,3#198808-199201

48305BUMPER SUB-ASSY, FRONT SPRING, NO.2

main48305-30030iCR2#,3#,KR2#,YR2#,3#198808-199201

48417BRACKET, SPRING

main48417-28030iCR2#,3#,KR2#,YR2#,3#198808-199201

48510ABSORBER ASSY, SHOCK, FRONT RH

main48500-29385iCR2#,KR2#,YR2#..B,D,E,F,G198808-199201

sub48500-29546

main48500-29395iCR27,YR25..N198808-199201

sub48500-29556

main48500-29405iCR21,YR21..Q198808-199201

sub48500-29406

main48500-29415iCR30,YR30..Q198808-199201

sub48500-29416

main48500-29425iCR3#,YR3#..02S,05S,08S198808-199201

sub48500-29606

48510ACUSHION, FRONT SHOCK ABSORBER

main90948-01003iCR3#,YR3#..02S,05S,08S198808-199201

UWR

main90948-01003iCR3#,YR3#..02S,05S,08S198808-199201

main90948-01029iCR2#,3#,KR2#,YR2#,3#..B,D,E,F,G,N198808-199201

main90948-01032iCR21,30,YR20,21,30..E,Q198808-199201

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90948-02002iCR2#,3#,KR2#,YR2#,3#..B,D,E,F,G,N198808-199201

main90948-02070iCR21,30,YR20,21,30..E,Q198808-199201

main90948-02076iCR2#,3#,KR2#,YR2#,3#..B,D,E,F,G,N198808-199201

48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)

main90948-01039iCR30,YR30..E198808-199201

main90948-02105iCR2#,KR2#,YR2#..B,D,E,F,G,N198808-199201

main90948-02123iCR3#,YR3#..02S,05S,08S198808-199201

48519BRACKET, ACTUATOR SUPPORT, FRONT

main48519-28010iCR21,30,YR20,21,30..E,Q198808-199201

48520ABSORBER ASSY, SHOCK, FRONT LH

main48500-29385iCR2#,KR2#,YR2#..B,D,E,F,G198808-199201

sub48500-29546

main48500-29395iCR27,YR25..N198808-199201

sub48500-29556

main48500-29405iCR21,YR21..Q198808-199201

sub48500-29406

main48500-29415iCR30,YR30..Q198808-199201

sub48500-29416

main48500-29425iCR3#,YR3#..02S,05S,08S198808-199201

sub48500-29606

48597RETAINER, SHOCK ABSORBER CUSHION

main48597-28010iCR21,YR20,21..E,Q198808-199201

main48597-28020iCR30,YR30..E,Q198808-199201

main48597-28030iCR30,YR30..E,Q198808-199201

48660BAR ASSY, STRUT, RH

main48660-28020iCR2#,KR2#,YR2#198808-199201

48670BAR ASSY, STRUT, LH

main48670-28020iCR2#,KR2#,YR2#198808-199201

48674CUSHION, STRUT BAR

main48674-22021iCR2#,KR2#,YR2#198808-199201

48674ARETAINER, CUSHION(FOR STRUT BAR CUSHION)

main90948-02030iCR2#,KR2#,YR2#198808-199201

48674BCOLLAR(FOR STRUT BAR CUSHION)

main90387-18002iCR2#,KR2#,YR2#198808-199201

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main94187-11200iCR21,30,YR20,21,30..E,Q198808-199201

sub90177-12002

48811BAR, STABILIZER, FRONT

main48804-28011iCR3#,YR3#198808-199201

sub48811-28061

sub48815-28030

sub48827-28011

sub48828-28011

sub48836-28011

sub48837-28021

main48811-28080iCR27,YR25..N;CR21,28,YR20,21,28198808-199201

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-30100iCR27,YR25..N;CR21,28,3#,YR20,21,28,3#198808-199201

48817CUSHION, FRONT STABILIZER

main90948-01002iCR3#,YR3#198808-199201

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main90948-02004iCR3#,YR3#198808-199201

48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)

main90948-02005iCR27,YR25..N;CR21,28,3#,YR20,21,28,3#198808-199201

48817CCOLLAR(FOR STABILIZER BAR)

main90440-14004iCR27,YR25..N;CR21,28,YR20,21,28198808-199201

48817DBOLT(FOR FRONT STABILIZER)

main90101-10090iCR27,YR25..N;CR21,28,YR20,21,28198808-199201

48823COVER, STABILIZER LINK(FOR FRONT)

main48824-28061iCR27,YR25..N;CR21,28,YR20,21,28198808-199201

48824BRACKET, STABILIZER, FRONT

main48824-27030iCR27,YR25..N;CR21,28,YR20,21,28198808-199201

main48824-28030iCR3#,YR3#198808-199201

main48829-27030iCR27,YR25..N;CR21,28,YR20,21,28198808-199201

9010110051

main90101-10051

9017012004

main90170-12004

9017018154

main90170-18154

9017908146

main90179-08146

9017910058

main90179-10058

9020118006

main90201-18006

9020618001

main90206-18001

9165160820

main91651-60820

9165160825

main91651-60825

9411041000

main94110-41000

9412041000

main94120-41000

9418211000

main94182-11000

44 parts on this diagram · 2 diagrams in section
