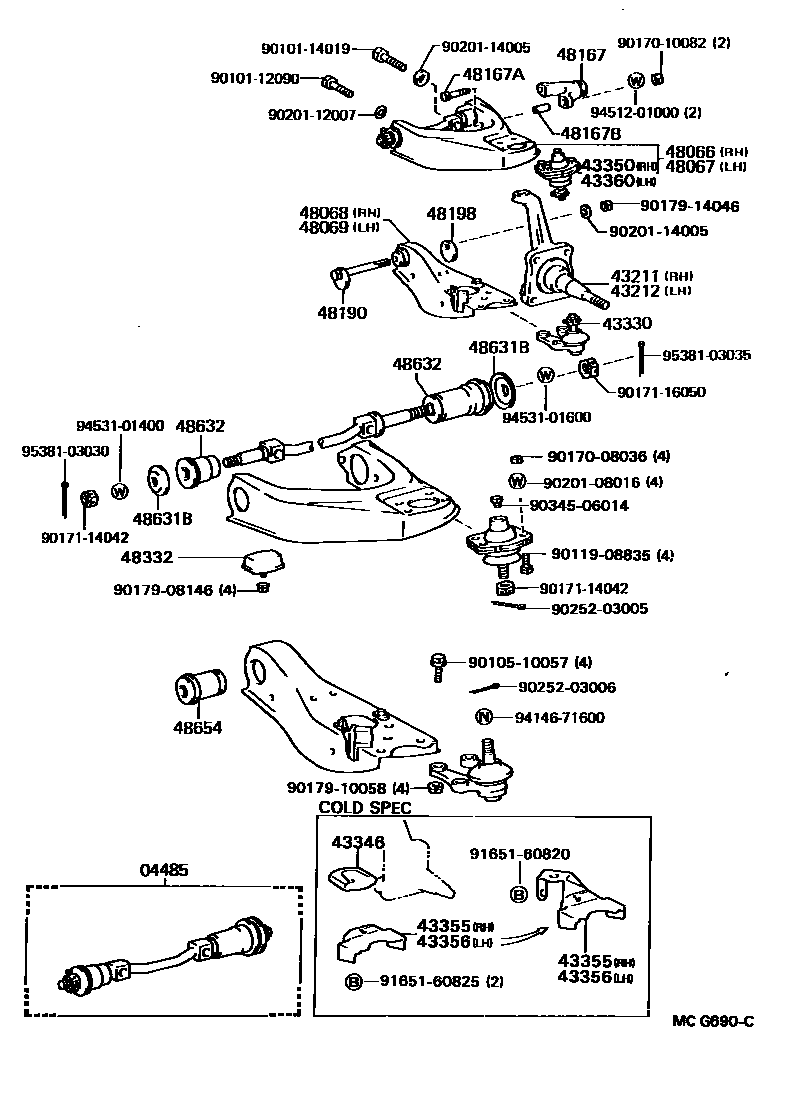

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0003 1

04485SHAFT KIT, UPPER SUSPENSION ARM

main04485-28020iCR27,28,KR2#,YR25,28198808-199201

main04485-28040iCR21,YR20,21198808-199201

sub04485-28022

43211KNUCKLE, STEERING, RH

main43201-28010iCR3#,YR3#198808-199201

main43211-28021iCR2#,KR2#,YR2#198808-199201

43212KNUCKLE, STEERING, LH

main43202-28010iCR3#,YR3#198808-199201

main43211-28021iCR2#,KR2#,YR2#198808-199201

43330JOINT ASSY, LOWER BALL, FRONT

main43330-29165iCR3#,YR3#198808-199201

sub43330-29166

main43330-29175iCR2#,KR2#,YR2#198808-199201

sub43330-29545

main43340-29115iCR3#,YR3#198808-199201

sub43340-29116

43346PROTECTOR, LOWER BALL JOINT DUST COVER

main43346-28011iCR2#,KR2#,YR2#198808-199102

sub43346-28012

main43346-28012iCR2#,KR27,YR2#199102-199201

43350JOINT ASSY, FRONT UPPER BALL, RH

main43350-29036iCR2#,KR26,YR2#198808-199008

sub43350-29076

main43350-29076iCR2#,KR27,YR2#199008-199201

43355DEFLECTOR, LOWER ARM ICE, RH

main43355-27031iCR27,YR25..N;CR21,28,YR20,21,28198808-199201

main43355-28021iCR27,KR2#,YR25..D198808-199201

main43355-28030iCR3#,YR3#198808-199201

main43355-28060iCR36..5F;CR30,37,YR3#198808-199201

main43355-28060iCR36..4FC198908-199201

43356DEFLECTOR, LOWER ARM ICE, LH

main43355-28021iCR27,KR2#,YR25..D198808-199201

main43355-28060iCR36..4FC198908-199201

main43355-28060iCR36..5F;CR30,37,YR3#198808-199201

main43356-27021iCR27,YR25..N;CR21,28,YR20,21,28198808-199201

main43356-28020iCR3#,YR3#198808-199201

43360JOINT ASSY, FRONT UPPER BALL, LH

main43350-29076iCR2#,KR27,YR2#199008-199201

main43360-29056iCR2#,KR26,YR2#198808-199008

sub43350-29076

48066ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH

main48066-28030iCR3#,YR3#198808-199201

sub48066-28050

main48610-28012iCR27,28,KR26,YR25,28198808-199008

sub48610-28013

main48610-28013iCR27,28,KR27,YR25,28199008-199201

main48610-28020iCR21,YR20,21198808-199008

sub48610-28021

main48610-28021iCR21,YR20,21199008-199201

48067ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH

main48067-28030iCR3#,YR3#198808-199201

sub48067-28050

main48630-28012iCR27,28,KR26,YR25,28198808-199008

sub48630-28013

main48630-28013iCR27,28,KR27,YR25,28199008-199201

main48630-28020iCR21,YR20,21198808-199008

sub48630-28021

main48630-28021iCR21,YR20,21199008-199201

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-28031iCR3#,YR3#198808-199201

main48068-28040iCR2#,KR2#,YR2#198808-199201

sub48068-28080

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-28031iCR3#,YR3#198808-199201

main48069-28040iCR2#,KR2#,YR2#198808-199201

sub48069-28080

48167ARM, TORQUE

main48106-28010iCR2#,KR2#,YR2#198808-199201

main48106-28020iCR3#,YR3#198808-199201

48167ABOLT(FOR TORQUE ARM SETTING)

main90101-10177iCR2#,KR2#,YR2#198808-199201

48167BTUBE(FOR TORQUE ARM SETTING BOLT)

main90440-17029iCR2#,KR2#,YR2#198808-199201

48190CAM ASSY, CAMBER ADJUST

main48190-27010iCR3#,YR3#198808-199002

sub48190-27020

sub90179-14046

main48190-27020iCR2#,KR2#,YR2#199002-199201

48198CAM, CAMBER ADJUST, NO.2

main48198-27010iCR2#,KR2#,YR2#198808-199201

48332BUMPER, FRONT SPRING, NO.2

main48331-27060iCR2#,KR2#,YR2#198808-199201

sub48331-29055

main48331-28020iCR3#,YR3#198808-199201

48631BRETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM)

main90948-02048iCR27,28,KR2#,YR25,28198808-199201

main90948-02049iCR27,28,KR2#,YR25,28198808-199201

48632BUSH, UPPER ARM

main48632-27010iCR27,28,KR2#,YR25,28198808-199201

main48632-28030iCR21,YR20,21198808-199201

main48635-28010iCR27,28,KR2#,YR25,28198808-199201

main48635-28040iCR21,YR20,21198808-199201

48654BUSH, LOWER ARM

main48061-27011iCR2#,KR2#,YR2#198808-199201

main48061-28021iCR3#,YR3#198808-199201

9010112090

main90101-12090

9010114019

main90101-14019

9010510057

main90105-10057

9011908835

main90119-08835

9017008036

main90170-08036

9017010082

main90170-10082

9017114042

main90171-14042

9017116050

main90171-16050

9017908146

main90179-08146

9017910058

main90179-10058

9017914046

main90179-14046

9020108016

main90201-08016

9020112007

main90201-12007

9020114005

main90201-14005

9025203005

main90252-03005

9025203006

main90252-03006

9034506014

main90345-06014

9165160820

main91651-60820

9165160825

main91651-60825

9414671600

main94146-71600

9451201000

main94512-01000

9453101400

main94531-01400

9453101600

main94531-01600

9538103030

main95381-03030

9538103035

main95381-03035

47 parts on this diagram · 2 diagrams in section
