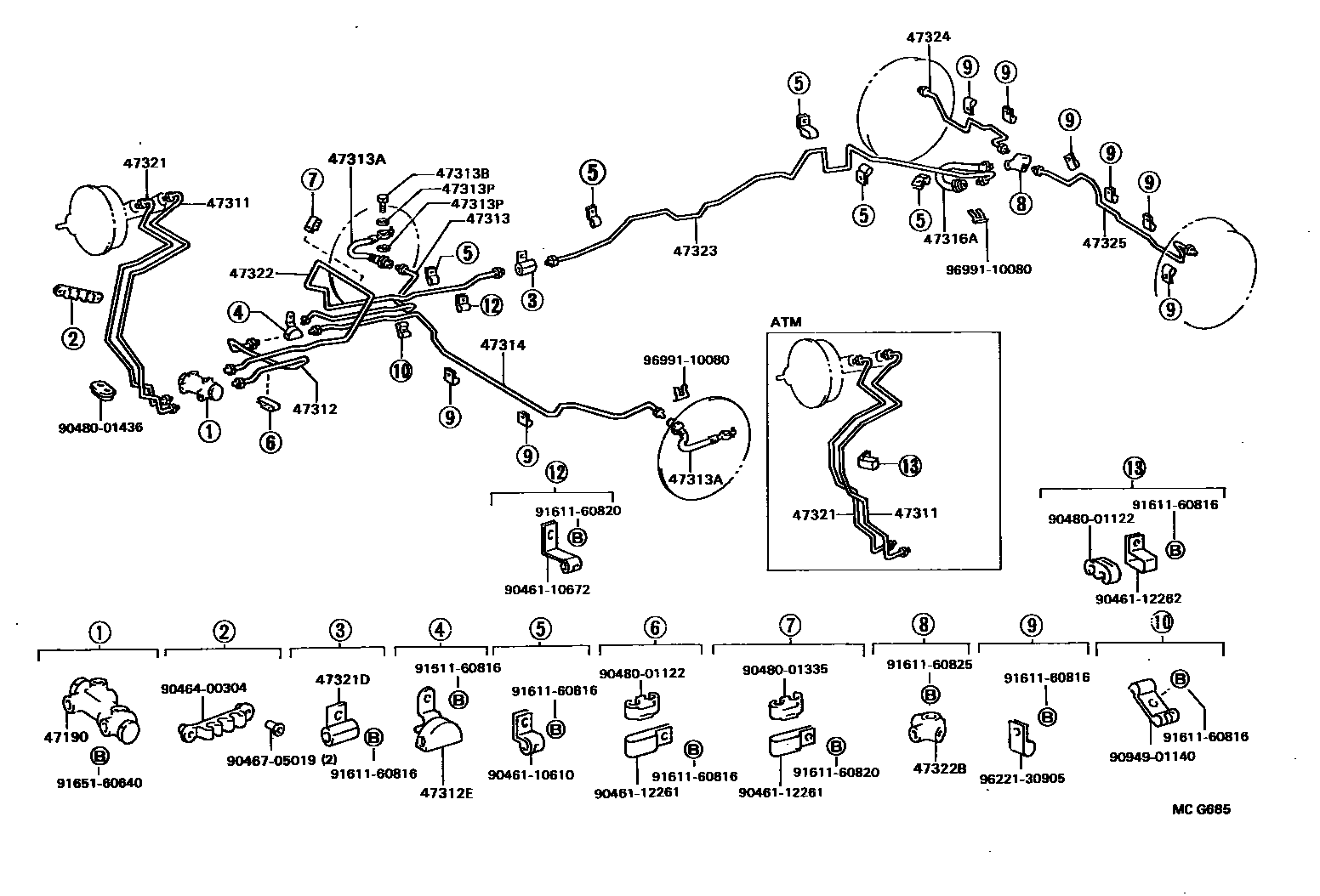

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1

47190VALVE ASSY, PROPORTIONING & BY-PASS

main47190-28060iCR21,YR20,21198808-199201

47311TUBE, FRONT BRAKE, NO.1

main47311-28120iCR21,YR20,21..MTM198808-199201

main47311-28130iCR21,YR20,21..4FC198808-199201

main47311-28160iCR27,28,KR2#,YR25,28..MTM198808-199201

main47311-28170iCR27,28,YR25,28..4FC198808-199201

main47311-28180iCR3#,YR3#..5F198808-199201

main47311-28190iCR30,36,YR3#..4FC198808-199201

47312TUBE, FRONT BRAKE, NO.2

main47312-28110iCR2#,3#,KR2#,YR2#,3#198808-199201

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90413-10183iCR21,YR20,21198808-199201

main90414-10014iCR27,28,3#,KR2#,YR25,28,3#198808-199201

47313TUBE, FRONT BRAKE, NO.3

main47313-28070iCR3#,YR3#198808-199201

main47313-28110iCR2#,KR2#,YR2#198808-199201

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02575×2iCR2#,KR2#,YR2#198808-199201

sub90947-02505

main96940-33056×2iCR3#,YR3#198808-199201

sub96940-33055

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015×2iCR2#,KR2#,YR2#198808-199201

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main90430-10074×4iCR2#,KR2#,YR2#198808-199201

47314TUBE, FRONT BRAKE, NO.4

main47314-28070iCR3#,YR3#198808-199201

main47314-28120iCR2#,KR2#,YR2#198808-199201

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02513iCR36,37,YR36198902-199201

sub90947-02749

main90947-02523iCR30,YR30198904-199201

sub90947-02492

main90947-02576iCR27,28,36,37,KR26,YR25,28,36198808-198902

main96940-33106iCR21,YR20,21198808-199201

sub96940-33107

main96940-33606iCR30,YR30198808-198904

sub90947-02492

47321TUBE, REAR BRAKE, NO.1

main47321-28120iCR21,YR20,21..MTM198808-199201

main47321-28130iCR21,YR20,21..4FC198808-199201

main47321-28160iCR27,28,KR2#,YR25,28..MTM198808-199201

main47321-28170iCR27,28,YR25,28..4FC198808-199201

main47321-28180iCR3#,YR3#..5F198808-199201

main47321-28190iCR30,36,YR3#..4FC198808-199201

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90412-10063iCR2#,KR2#,YR2#198808-199201

main90412-10133iCR3#,YR3#198808-199201

47322TUBE, REAR BRAKE, NO.2

main47322-28120iCR2#,YR20,21198808-199201

main47322-28130iKR2#,YR25,28198808-199201

main47322-28140iCR3#,YR3#198808-199201

47322BWAY, NO.2(FOR REAR BRAKE TUBE)

main90413-10098iCR27,28,36,37,KR2#,YR25,28,36198808-199201

main90413-10130iCR21,30,YR20,21,30198808-199201

47323TUBE, REAR BRAKE, NO.3

main47323-28120iCR27,28,KR2#,YR25,28198808-199201

main47323-28140iCR21,YR20,21198808-199201

main47323-28170iCR30,YR30198808-199201

main47323-28180iCR36,37,YR36198808-199201

47324TUBE, REAR BRAKE, NO.4

main47324-28031iCR21,YR20,21198808-199201

sub47324-28032

main47324-28050iCR27,28,KR2#,YR25,28198808-199201

sub47324-28051

main47324-28080iCR36,37,YR36198808-199201

sub47324-28081

main47324-28110iCR30,YR30198808-199201

47325TUBE, REAR BRAKE, NO.5

main47325-28050iCR21,YR20,21198808-199201

main47325-28070iCR27,28,KR2#,YR25,28198808-199201

sub47325-28071

main47325-28100iCR36,37,YR36198808-199201

main47325-28110iCR30,YR30198808-199201

9046110610

main90461-10610

9046110672

main90461-10672

9046112261

main90461-12261

9046112262

main90461-12262

9046400304

main90464-00304

9046705019

main90467-05019

9048001122

main90480-01122

9048001335

main90480-01335

9048001436

main90480-01436

9094901140

main90949-01140

9161160816

main91611-60816

9161160820

main91611-60820

9161160825

main91611-60825

9165160640

main91651-60640

9622130905

main96221-30905

9699110080

main96991-10080

33 parts on this diagram · 4 diagrams in section
