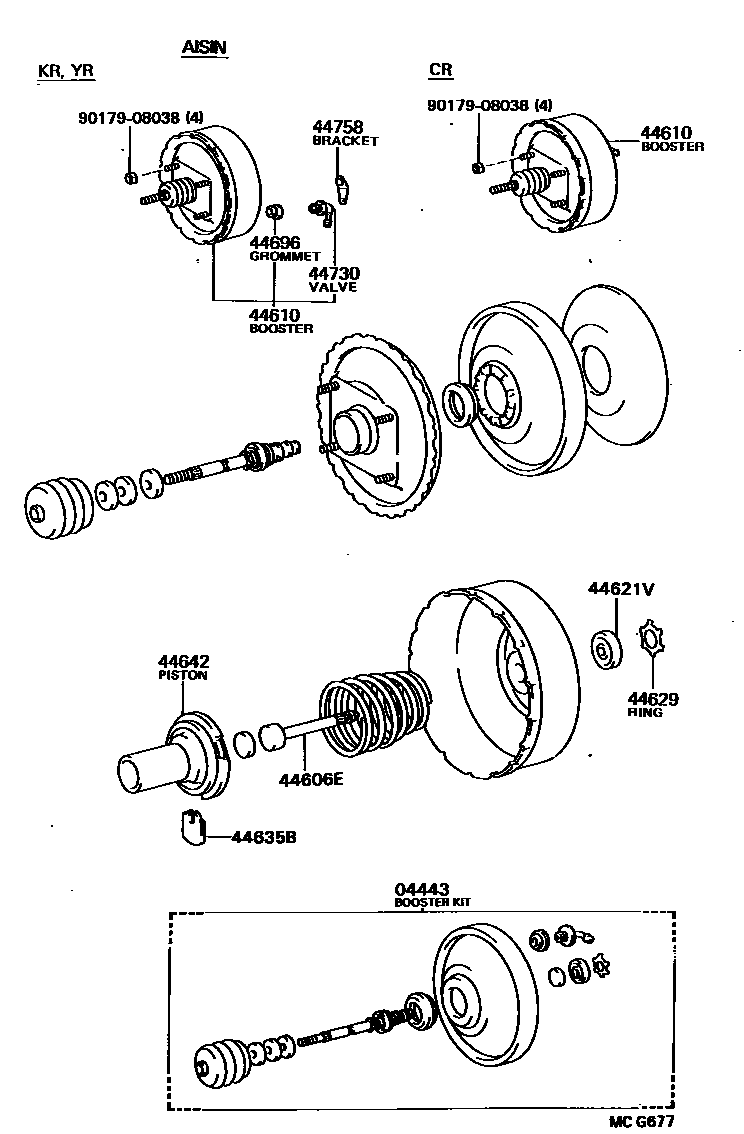

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1

04443BOOSTER KIT, BRAKE

main04443-28370iYR20198808-199201

main04443-28380iYR21,30198808-199201

main04443-28410iKR2#,YR25,28198808-199201

main04443-28420iCR27,28198808-199201

main04443-28430iCR36,37198808-199201

main04443-28440iCR21,30198808-199201

main04443-28450iYR36198808-199201

44606EROD SUB-ASSY, BRAKE BOOSTER PISTON

main44606-12520iCR27,28,KR2#,YR25,28198808-199201

main44606-20800iCR21,3#,YR20,21,3#198808-199201

44610BOOSTER ASSY, BRAKE

main44610-28400iYR21,30198808-199201

main44610-28420iYR36198808-199201

main44610-28430iCR36,37198808-199201

main44610-28620iKR2#,YR25,28198808-199201

main44610-28630iCR27,28198808-199201

main44610-28650iCR21,30198808-199201

main44610-28670iYR20198808-199201

44621VSEAL, BOOSTER BODY

main44621-14030iCR21,3#,YR20,21,3#198808-199201

main44621-28120iCR27,28,KR2#,YR25,28198808-199201

44629RING, CIRCULAR INTERNAL

main44628-28120iCR27,28,KR2#,YR25,28198808-199201

main44628-60010iCR21,3#,YR20,21,3#198808-199201

44635BKEY, VALVE STOPPER

main44635-12630iCR27,28,KR2#,YR25,28198808-199201

main44635-20800iCR21,3#,YR20,21,3#198808-199201

44642PISTON, BRAKE BOOSTER

main44642-20800iCR21,3#,YR20,21,3#198808-199201

main44642-32010iCR27,28,KR2#,YR25,28198808-199201

44696GROMMET, CHECK VALVE

main90480-24015iYR21,3#198808-199201

main90480-24439iYR21,3#198808-199201

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-14050iKR2#,YR21,25,28,3#198808-199201

main44730-24020iYR20198808-199201

main44730-60040iCR2#,3#198808-199008

main44730-60050iCR2#,3#199008-199201

44758BRACKET, VACUUM CHECK VALVE

main44758-28050iKR2#,YR25,28198808-199201

main44758-28060×2iYR21,3#198808-199201

main44758-28090iYR20198808-199201

9017908038

main90179-08038

11 parts on this diagram · 5 diagrams in section
