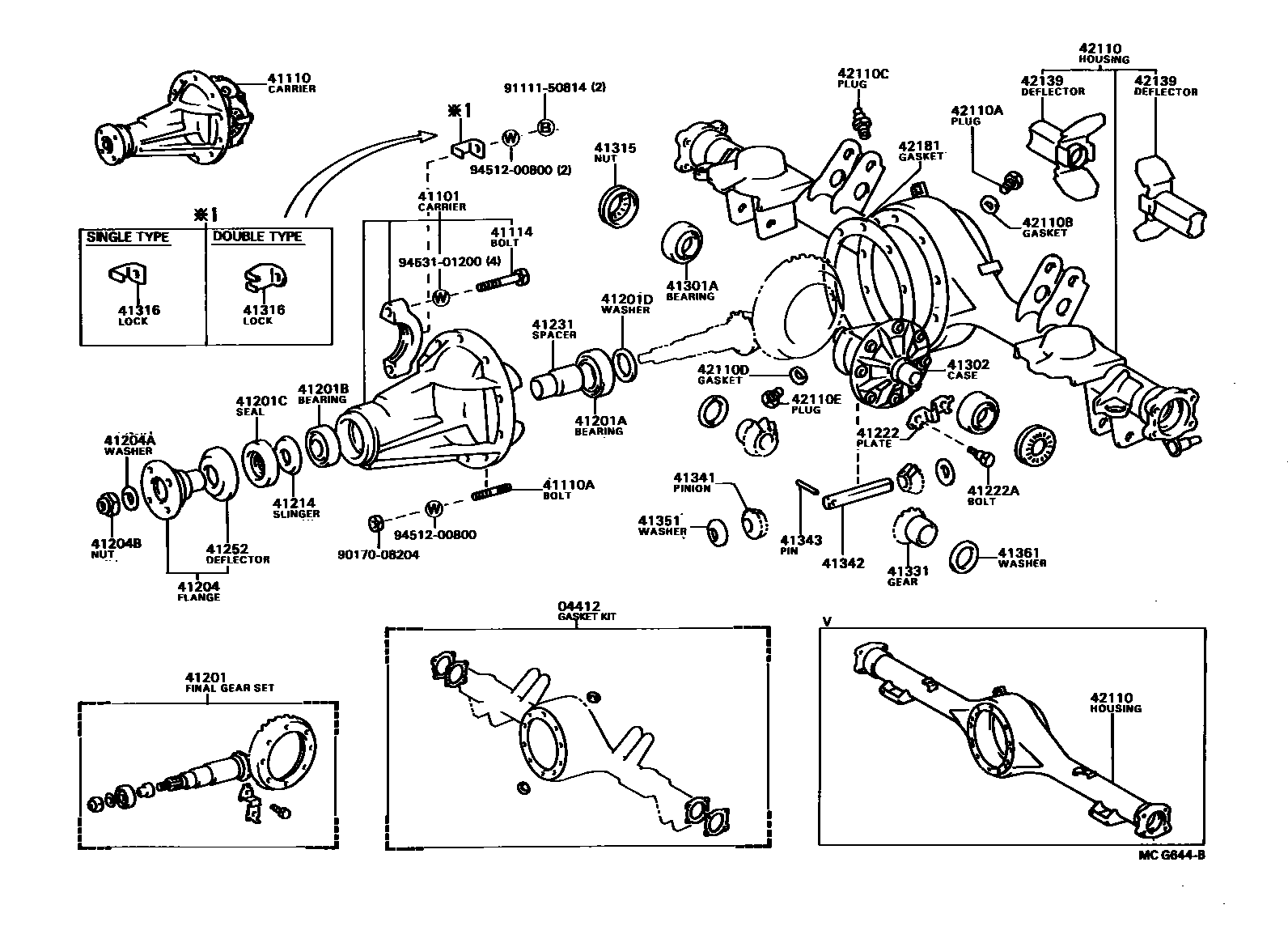

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1

04412GASKET KIT, REAR DIFFERENTIAL CARRIER

main04412-28010iCR2#,KR2#,YR2#198808-199201

main04412-30020iCR3#,YR3#198808-199201

sub04412-30060

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-30010iCR2#,KR2#,YR2#198808-199201

main41101-30031iCR3#,YR3#198808-199201

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-20241iCR21..4FC..G;YR20..MTM..(D,G);CR21,28,YR21,28..(HRF,SRF)..MTM198808-199201

main41110-21020iYR25;YR20..4FC..G;CR27,YR20..5F..(D,E,N);CR21,28,YR21,28..HRF..4FC198808-199201

main41110-22110iCR27,KR27,YR20..(4FC,5H)..(03S,05S,06S,08S)..(D,E,N)198808-199101

sub41110-27120

main41110-22240iCR21..MRF..5F198808-199201

main41110-27030iKR26198808-199008

sub41110-27100

main41110-27120iCR27,KR27,YR20..(4FC,5H)..(03S,05S,06S,08S)..(D,E,N)199101-199201

main41110-28070iYR3#..5F198808-199201

main41110-28080iCR30,37;YR3#..4FC198808-199201

main41110-28090iCR36198808-199201

main41110-28100iYR3#..5F198808-199201

main41110-28110iCR30,37;YR3#..4FC198808-199201

main41110-28120iCR36198808-199201

41110ABOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)

main90116-08235iCR2#,3#,KR2#,YR2#,3#198808-199201

sub90116-08418

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main90101-12376iCR2#,3#,KR2#,YR2#,3#198808-199201

main90105-12053iCR3#,YR3#199102-199201

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-29217iYR25;YR20..4FC..G;CR27,YR20..5F..(D,E,N);CR21,28,YR21,28..HRF..4FC198808-199201

main41201-29307iKR26198808-199008

sub41201-29865

main41201-29765iCR21..MRF..5F198808-199201

main41201-39287iCR27,KR27,YR20..(4FC,5H)..(03S,05S,06S,08S)..(D,E,N)198808-199101

sub41201-80020

main41201-39298iCR36198808-198908

sub41201-80017

main41201-39555iCR21..4FC..G;YR20..MTM..(D,G);CR21,28,YR21,28..(HRF,SRF)..MTM198808-199201

main41201-39875iCR30,37;YR3#..4FC198808-198908

sub41201-39876

main41201-39876iCR30,37;YR3#..4FC198908-199201

sub41201-80015

main41201-80004iYR3#..5F198808-199201

main41201-80017iCR36198908-199201

sub41201-80030

main41201-80020iCR27,KR27,YR20..(4FC,5H)..(03S,05S,06S,08S)..(D,E,N)199101-199201

41201ABEARING (FOR REAR DRIVE PINION REAR)

main90366-35023iCR3#,YR3#198808-199008

main90366-35031iCR2#,KR2#,YR2#198808-199201

sub90366-35064

main90366-35073iCR3#,YR3#199008-199201

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90366-30022iCR2#,KR27,YR2#198808-199201

sub90366-30078

main90366-30055iCR3#,YR3#199008-199201

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90311-38133iCR2#,3#,KR2#,YR2#,3#198808-199201

sub90311-38047

41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)

main90201-35396iCR2#,3#,KR2#,YR2#,3#198808-199201

main90201-35397iCR2#,3#,KR2#,YR2#,3#198808-199201

main90201-35398iCR2#,3#,KR2#,YR2#,3#198808-199201

main90201-35399iCR2#,3#,KR2#,YR2#,3#198808-199201

main90201-35400iCR2#,3#,KR2#,YR2#,3#198808-199201

main90201-35401iCR2#,3#,KR2#,YR2#,3#198808-199201

main90201-35402iCR2#,3#,KR2#,YR2#,3#198808-199201

main90201-35403iCR2#,3#,KR2#,YR2#,3#198808-199201

main90201-35404iCR2#,3#,KR2#,YR2#,3#198808-199201

main90201-35434iCR2#,3#,KR2#,YR2#,3#198808-199201

sub90201-35515

main90201-35435iCR2#,3#,KR2#,YR2#,3#198808-199201

sub90201-35516

main90201-35436iCR2#,3#,KR2#,YR2#,3#198808-199201

sub90201-35517

main90201-35437iCR2#,3#,KR2#,YR2#,3#198808-199201

sub90201-35518

main90201-35438iCR2#,3#,KR2#,YR2#,3#198808-199201

main90201-35439iCR2#,3#,KR2#,YR2#,3#198808-199201

main90201-35440iCR2#,3#,KR2#,YR2#,3#198808-199201

main90201-35441iCR2#,3#,KR2#,YR2#,3#198808-199201

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-20030iCR2#,KR2#,YR2#198808-199201

main41204-35050iCR3#,YR3#198808-199201

41204AWASHER, PLATE (FOR REAR DRIVE PINION)

main90201-18485iCR2#,3#,KR2#,YR2#,3#198808-199201

41204BNUT (FOR REAR DRIVE PINION)

main90179-18001iCR2#,3#,KR2#,YR2#,3#198808-199201

41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

main41214-30021iCR2#,3#,KR2#,YR2#,3#198808-199201

41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-28010iCR2#,KR2#,YR2#198808-199201

main41222-35030iCR3#,YR3#198808-199201

41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

main90101-11353iCR3#,YR3#198808-199201

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-22010iCR3#,YR3#198808-199201

main41231-22020iCR2#,KR2#,YR2#198808-199201

41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

main41252-30010iCR2#,3#,KR2#,YR2#,3#198808-199201

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90368-45011iCR2#,KR2#,YR2#198808-199104

sub90368-45014

main90368-45014iCR2#,KR27,YR2#199104-199201

main90368-45066iCR3#,YR3#198808-199201

main90368-50024iCR36198808-199201

41302CASE SUB-ASSY, REAR DIFFERENTIAL

main41302-22011iCR36198808-199201

main41311-30022iCR2#,KR2#,YR2#198808-199201

main41311-30050iCR3#,YR3#198808-199201

sub41311-28010

41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING

main41315-30010iCR2#,KR2#,YR2#198808-199201

main41315-35010iCR3#,YR3#198808-199201

41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT

main41316-30010iCR2#,3#,KR2#,YR2#,3#198808-199201

SINGLE TYPE

main41317-30010iCR2#,3#,KR2#,YR2#,3#198808-199201

DOUBLE TYPE

41331GEAR, REAR DIFFERENTIAL SIDE

main41305-22010iYR3#..5F198808-199201

main41331-22070iCR2#,KR27,YR2#199008-199201

sub41039-28010

main41331-30021iCR2#,KR26,YR2#198808-199008

sub41331-22070

main41331-30030iCR3#,YR3#198808-199201

41341PINION, REAR DIFFERENTIAL

main41341-14031iYR3#..5F198808-199201

main41341-22030iCR2#,KR27,YR2#199008-199201

sub41039-28010

main41341-30011iCR2#,KR26,YR2#198808-199008

main41341-30020iCR3#,YR3#198808-199201

sub41341-30050

41342SHAFT, REAR DIFFERENTIAL PINION

main41342-22020iCR3#,YR3#198808-199201

sub41342-22021

main41342-30011iCR2#,KR2#,YR2#198808-199201

41343PIN, REAR DIFFERENTIAL PINION SHAFT

main90250-06058iCR2#,3#,KR2#,YR2#,3#198808-199201

41351WASHER, REAR DIFFERENTIAL PINION THRUST

main41351-30032iCR2#,KR2#,YR2#198808-199201

main41351-30060iCR3#,YR3#198808-199201

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-22020iCR2#,KR2#,YR2#198808-199201

main41361-22030iCR2#,KR2#,YR2#198808-199201

main41361-22040iCR2#,KR2#,YR2#198808-199201

main41361-22140iCR2#,KR2#,YR2#198808-199201

main41361-22150iCR2#,KR2#,YR2#198808-199201

main41361-22160iCR2#,KR2#,YR2#198808-199201

main41361-28130iCR3#,YR3#198808-199201

main41361-28140iCR3#,YR3#198808-199201

main41361-28150iCR3#,YR3#198808-199201

main41361-28160iCR3#,YR3#198808-199201

main41361-28170iCR3#,YR3#198808-199201

main41361-28180iCR3#,YR3#198808-199201

main41361-28190iCR3#,YR3#198808-199201

main41361-28200iCR3#,YR3#198808-199201

main41361-28210iCR3#,YR3#198808-199201

main41361-28220iCR3#,YR3#198808-199201

main41361-30040iCR3#,YR3#198808-199201

main41361-30050iCR3#,YR3#198808-199201

main41361-30060iCR3#,YR3#198808-199201

main41361-30070iCR3#,YR3#198808-199201

42110HOUSING ASSY, REAR AXLE

main42110-28082iCR21,YR20,21198808-199201

main42110-28120iCR36,37,YR36198808-199201

main42110-28130iCR27,28,KR2#,YR25,28198808-199201

main42110-28160iCR30,YR30198808-199201

42110APLUG (FOR REAR AXLE HOUSING FILLER)

main90341-18006iCR2#,3#,KR2#,YR2#,3#198808-199201

42110BGASKET (FOR REAR AXLE HOUSING FILLER PLUG)

main12157-10010iCR2#,3#,KR2#,YR2#,3#198808-199201

42110CPLUG, BREATHER (FOR REAR AXLE HOUSING)

main90930-03031iCR2#,3#,KR2#,YR2#,3#198808-199201

42110DGASKET (FOR REAR AXLE HOUSING DRAIN PLUG)

main12157-10010iCR2#,3#,KR2#,YR2#,3#198808-199201

42110EPLUG (FOR REAR AXLE HOUSING DRAIN)

main90341-18057iCR2#,3#,KR2#,YR2#,3#198808-199201

42139DEFLECTOR, REAR AXLE HOUSING OIL

main42108-22010iCR2#,KR2#,YR2#198808-199201

main42108-30010iCR3#,YR3#198808-199201

42181GASKET, REAR DIFFERENTIAL CARRIER

main42181-30010iCR2#,KR2#,YR2#198808-199201

main42181-30020iCR3#,YR3#198808-199201

9017008204

main90170-08204

9111150814

main91111-50814

9451200800

main94512-00800

9453101200

main94531-01200

40 parts on this diagram · 2 diagrams in section
