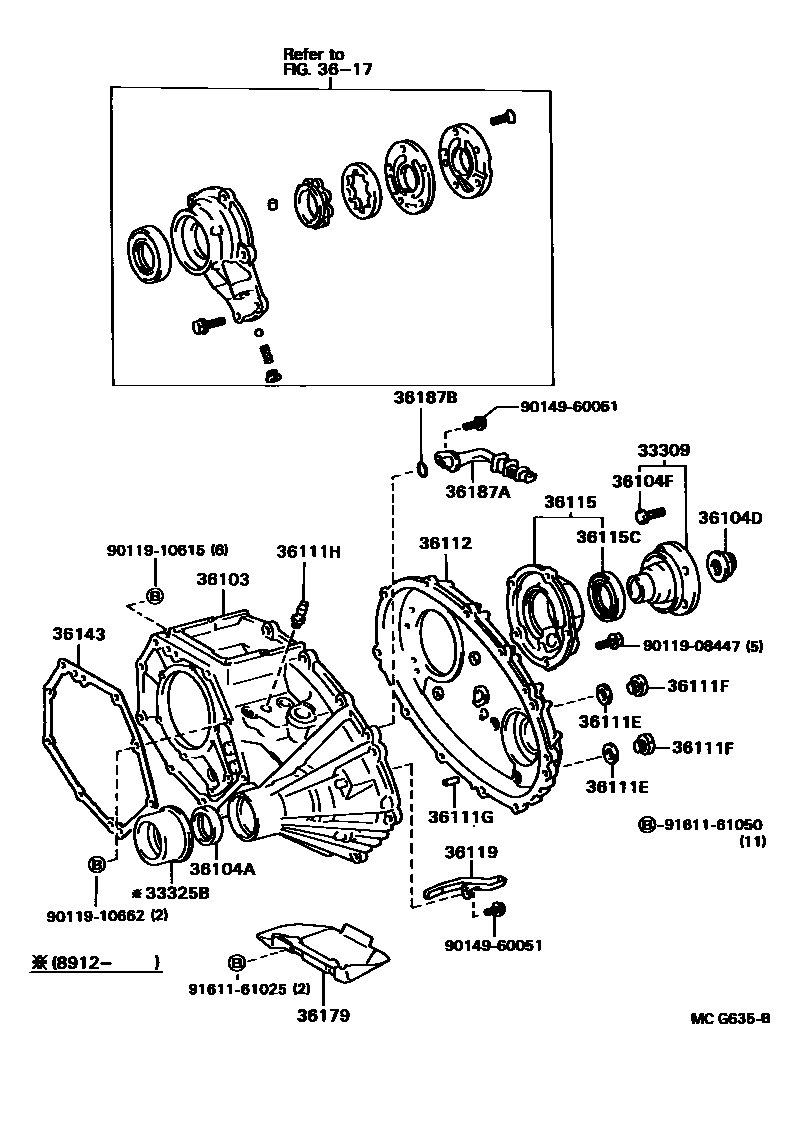

TRANSFER CASE & EXTENSION HOUSING
33325BDEFLECTOR, DUST (FOR TRANSFER EXTENSION FRONT HOUSING)
36103CASE SUB-ASSY, TRANSFER
sub37331-26010
36104DNUT (FOR TRANSFER OUTPUT SHAFT)
36104FBOLT (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)
36111EGASKET (FOR TRANSFER CASE)
36111FPLUG (FOR TRANSFER CASE)
36111GPIN, STRAIGHT (FOR TRANSFER CASE)
36111HPLUG, BREATHER (FOR TRANSFER CASE)
36112CASE, TRANSFER, REAR
36115HOUSING, TRANSFER EXTENSION
sub36105-28020
36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)
sub90311-52021
36119RECEIVER, TRANSFER OIL, NO.1
36143GASKET, TRANSFER CASE, FRONT
3617
36187ASTRAINR, TRANSFER OIL, NO.1
36187BRING, O (FOR TRANSFER OIL STRAINER)
9011908447
main90119-08447
9011910615
main90119-10615
9011910662
main90119-10662
9014960051
main90149-60051
9161161025
main91611-61025
9161161050
main91611-61050
25 parts on this diagram · 1 diagram in section
