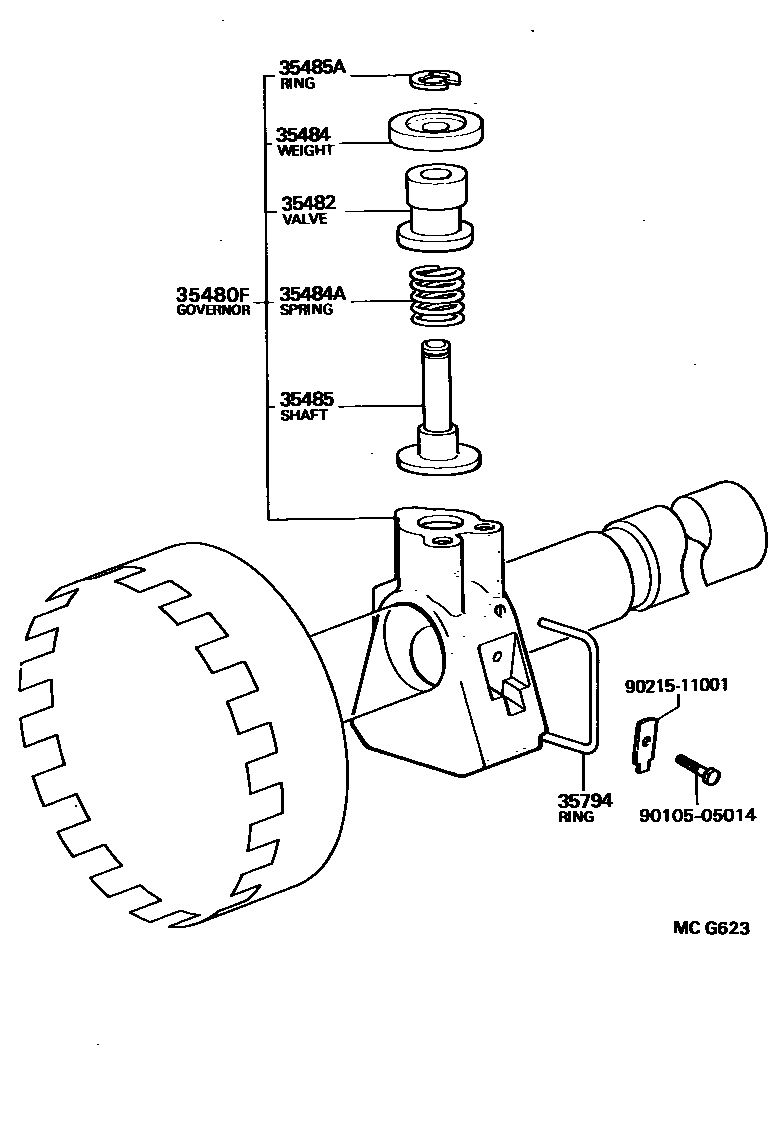

REAR OIL PUMP & GOVERNOR (ATM)

0001 1 0002 1

35480FBODY ASSY, GOVERNOR

main35480-26030iCR21,28,30,36..4FC198808-199201

main35480-28020iYR3#..4FC198808-199201

main35480-28030iYR2#..4FC198808-199201

main35480-30080iCR27..4FC198808-199201

35482VALVE, GOVERNOR

main35482-20010iCR27..4FC198808-199201

main35482-28010iCR21,28,30,36..4FC198808-199201

main35482-28020iYR3#..4FC198808-199201

main35482-30030iYR2#..4FC198808-199201

35484WEIGHT, GOVERNOR, OUTER

main35484-20020iCR27..4FC198808-199201

main35484-22010iCR21,28,30,36,YR2#,3#..4FC198808-199201

35484ASPRING, COMPRESSION (FOR GOVERNOR WEIGHT)

main90501-07033iCR21,28,30,36..4FC198808-199201

main90501-08059iCR21,28,30,36..4FC198808-199201

main90501-09030iCR27..4FC198808-199201

main90501-09049iYR3#..4FC198808-199201

main90501-09065iYR3#..4FC198808-199201

main90501-09070iYR2#..4FC198808-199201

35485SHAFT, GOVERNOR VALVE

main35485-14010iCR21,28,30,36,YR3#..4FC198808-199201

main35485-22010iCR27,YR2#..4FC198808-199201

35485ARING, E (FOR GOVERNOR VALVE SHAFT)

main90523-05020iCR2#,30,36,YR2#,3#..4FC198808-199201

35794RING, GOVERNOR RETAINING

main35794-22010iCR2#,30,36,YR2#,3#..4FC198808-199201

9010505014

main90105-05014

9021511001

main90215-11001

9 parts on this diagram · 2 diagrams in section
