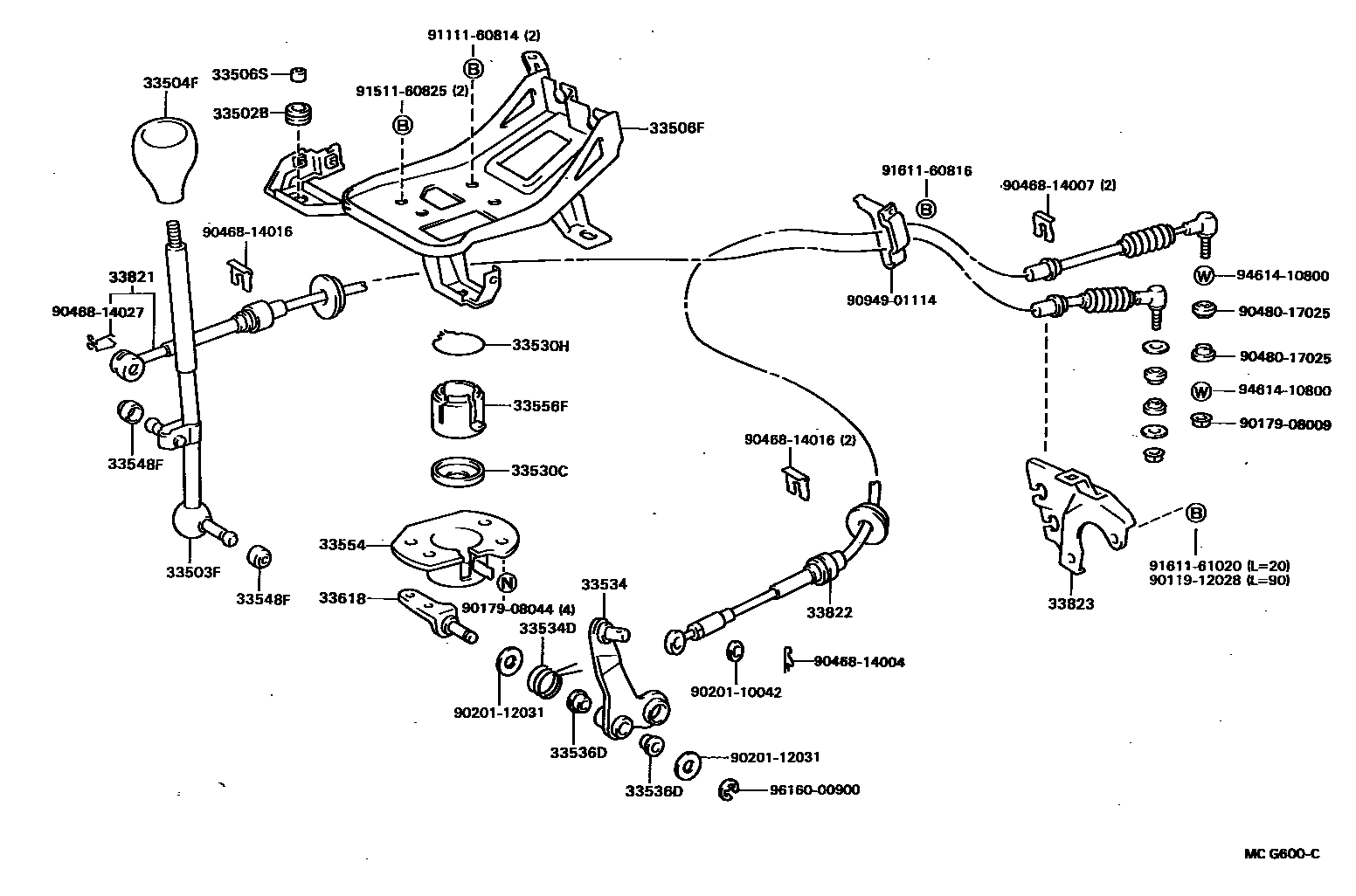

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1

33502PLATE SUB-ASSY, SHIFT LEVER

main33502-28100iCR27,36,YR2#,3#..4FC198808-199201

main33502-28110iCR21,28,30..4FC198808-199201

33502BGROMMET (FOR SHIFT LEVER PLATE)

main90480-13012iCR2#,3#,YR2#,3#..4FC,5F198808-199201

33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)

main33055-28020iYR20,21,3#..4FC..(B,E,Q)198808-199201

main33055-28030iCR21,30..HRF..4FC198808-199201

main33501-28070iCR27,36,YR20,21,25,3#..5F198808-199201

main33501-28080iCR21,28,30,37..5F198808-199201

main33501-28110iCR27,36,YR20,25,28..4FC..(B,D,G,N)198808-199201

main33503-28180iCR21,28..4FC..(B,F,G)198808-199201

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-14070-43iCR2#,3#,YR20,25,36..5F..(B,D,G,N)198808-199201

GRAY,TRIM1#

sub33504-14070

sub33504-14050

main33504-14070-46iCR21,30,YR20..5F..G198808-199201

SABLE,TRIM4#

sub33504-14070

sub33504-14050

main33504-24010-20iCR21,30,YR20,21,30..5F..(E,Q)198808-199201

GRAY,TRIM1#

sub33504-24010

main33504-24010-59iCR21,30,YR20,21,30..5F..(E,Q)198808-199201

SABLE,TRIM4#

sub33504-24010

main33542-20080-03iCR21,30,YR20,21,3#..4FC..(B,E,Q)198808-199201

GRAY,TRIM1#

sub33542-20080

sub33542-20081

main33542-20080-06iCR21,30,YR20,21,30..4FC..(E,Q)198808-199201

SABLE,TRIM4#

sub33542-20080

sub33542-20081

main33542-32010-03iCR2#,YR20,25,28..4FC..(B,D,G,N)198808-198904

GRAY,TRIM1#

sub33542-32010

main33542-32010-33iCR2#,36,YR20,25,28..4FC..(B,D,F,G,N)198904-199201

GRAY,TRIM1#

sub33542-32010

main33542-32010-46iCR21,YR20..4FC..G198808-199201

SABLE,TRIM4#

sub33542-32010

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33506-28061iCR21,28,30,37..5F198808-199201

main33506-28120iCR27,36,YR20,21,25,3#..5F198808-198812

main33506-28150iCR27,36,YR20,21,25,3#..5F198812-199201

33506SCOLLAR, NO.1(FOR CONTROL SHIFT LEVER RETAINER)

main90387-09011iCR2#,3#,YR20,21,25,3#..5F198808-199201

33530CBUSH (FOR SHIFT LEVER)

main90385-24001iCR2#,3#,YR20,21,25,3#..5F198808-199201

33530HRING, SNAP (FOR SHIFT LEVER)

main90520-34002iCR2#,3#,YR20,21,25,3#..5F198808-199201

33534BELLCRANK, SELECTING

main33534-28041iCR21,28,30,37..5F198808-199201

main33534-28050iCR27,36,YR20,21,25,3#..5F198808-199201

33534DSPRING, TORSION (FOR SELECTING BELLCRANK NO.1)

main90508-28001iCR27,36,YR20,21,25,3#..5F198808-199201

main90508-32025iCR21,28,30,37..5F198808-199201

33536DBUSH, CONTROL SELECT LEVER SHAFT (FOR FLOOR SHIFT)

main90386-12013iCR2#,3#,YR20,21,25,3#..5F198808-199201

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-12021iCR2#,3#,YR20,21,25,3#..5F198808-199201

33554CAP, SHIFT LEVER

main33554-28031iCR21,28,30,37..5F198808-199201

main33554-28060iCR27,36,YR20,21,25,3#..5F198808-199201

33556FSEAT, TRANSMISSION SHIFT LEVER BALL

main33556-20020iCR2#,3#,YR20,21,25,3#..5F198808-199201

33618SUPPORT, SELECTING BELLCRANK, NO.1

main33618-28021iCR21,28,30,37..5F198808-199201

main33618-28030iCR27,36,YR20,21,25,3#..5F198808-199201

33821CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT)

main33821-28060iCR27,36,YR20,21,25,3#..5F198808-199201

sub33821-28061

main33821-28070iCR21,28..5F198808-198901

sub33821-28071

main33821-28071iCR21,28..5F198903-199201

main33821-28080iCR30,37..5F198808-199108

sub33821-28081

main33821-28081iCR30,37..5F199108-199201

33822CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT)

main33822-28060iCR27,36,YR20,21,25,3#..5F198808-199201

sub33822-28061

main33822-28070iCR21,28..5F198808-199201

main33822-28080iCR30,37..5F198808-199108

sub33822-28081

main33822-28081iCR30,37..5F199108-199201

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-28010iYR2#..4FC198808-199201

main33823-28020iYR20,21,25..5F198808-199201

main33823-28031iCR27,36..5F198808-199107

sub33823-28032

main33823-28032iCR27,36..5F199107-199201

main33823-28050iCR21,28,30,37..5F198808-199201

main33823-28060iCR27,36..4FC198808-199201

main33823-28070iCR21,28,30..4FC198808-199201

main33823-28080iYR3#..5F198808-199201

main33823-28090iYR3#..4FC198808-199201

9011912028

main90119-12028

9017908009

main90179-08009

9017908044

main90179-08044

9020110042

main90201-10042

9020112031

main90201-12031

9046814004

main90468-14004

9046814007

main90468-14007

9046814016

main90468-14016

9046814027

main90468-14027

9048017025

main90480-17025

9094901114

main90949-01114

9111160814

main91111-60814

9151160825

main91511-60825

9161160816

main91611-60816

9161161020

main91611-61020

9461410800

main94614-10800

9616000900

main96160-00900

35 parts on this diagram · 4 diagrams in section
