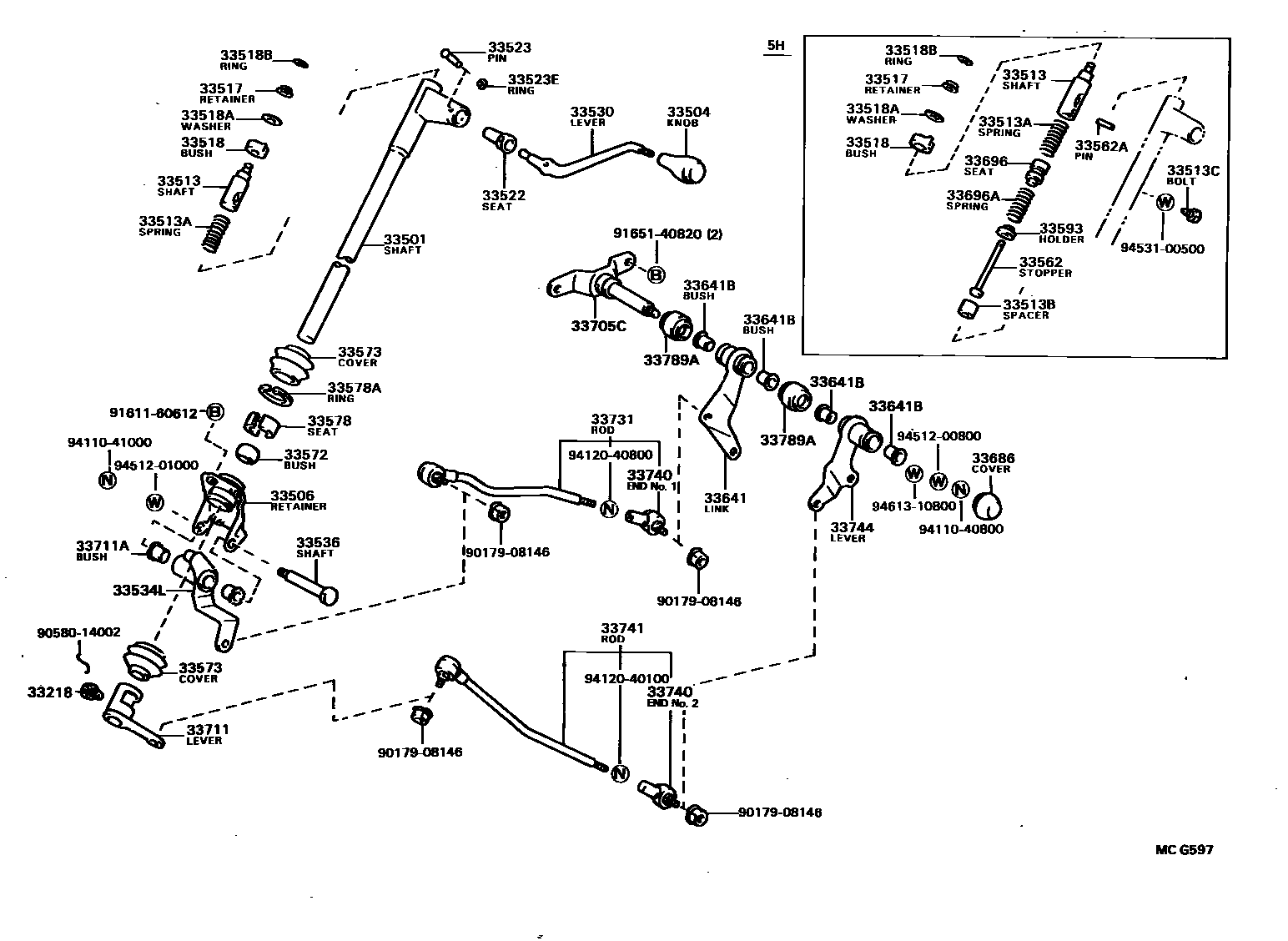

CONTROL SHAFT & CROSSSHAFT

0001 1 0002 1 0003 1

33218BOLT, SHIFT LEVER LOCK

main33218-35010iKR2#,YR20,25,28..MTM..(B,D)198808-199201

33501SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT)

main33501-28030iKR26,YR25..4H198808-199008

main33501-28040iKR27,YR20,25,28..5H198808-199201

33504KNOB SUB-ASSY, SHIFT LEVER (FOR COLUMN SHIFT)

main33504-30110iKR2#,YR20,25,28..MTM..(B,D)198808-199201

33506RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR COLUMN SHIFT)

main33506-28050iKR2#,YR20,25,28..MTM..(B,D)198808-199201

33513SHAFT, CONTROL SHAFT BRACKET, UPPER

main33513-26020iKR27,YR20,25,28..5H198808-199201

main33513-36020iKR26,YR25..4H198808-199008

33513ASPRING, COMPRESSION (FOR BRACKET UPPER SHAFT)

main90501-14395iKR2#,YR20,25,28..MTM..(B,D)198808-199201

33513BSPACER (FOR CONTROL SHAFT BRACKET UPPER SHAFT)

main90560-11015iKR27,YR20,25,28..5H198808-199201

33513CBOLT (FOR CONTROL SHAFT BRACKET UPPER SHAFT)

main90109-05012iKR27,YR20,25,28..5H198808-199201

33517RETAINER, CONTROL SHAFT UPPER SPRING

main33517-30010iKR2#,YR20,25,28..MTM..(B,D)198808-199201

33518BUSH, UPPER CONTROL SHAFT PIECE

main33518-36010iKR2#,YR20,25,28..MTM..(B,D)198808-199201

sub33518-35010

33518AWASHER, PLATE (FOR UPPER CONTROL SHAFT PIECE BUSH)

main33515-30010iKR2#,YR20,25,28..MTM..(B,D)198808-199201

33518BRING, E (FOR UPPER CONTROL SHAFT PIECE BUSH)

main90523-06019iKR2#,YR20,25,28..MTM..(B,D)198808-199201

33522SEAT, SHIFT LEVER PLATE (FOR COLUMN SHIFT)

main33522-36010iKR2#,YR20,25,28..MTM..(B,D)198808-199201

33523PIN, SHIFT LEVER (FOR COLUMN SHIFT)

main90249-07001iKR2#,YR20,25,28..MTM..(B,D)198808-199201

33523ERING, E (FOR SHIFT LEVER PIN)

main96160-00500iKR2#,YR20,25,28..MTM..(B,D)198808-199201

33530LEVER ASSY, SHIFT (FOR COLUMN SHIFT)

main33541-28050iKR26,YR25..4H198808-199008

main33541-28170iKR27,YR20,25,28..5H198808-199201

33534LCRANK, SELECTING BELL

main33534-28020iKR2#,YR20,25,28..MTM..(B,D)198808-199201

33536SHAFT, CONTROL SELECT LEVER (FOR COLUMN SHIFT)

main33536-28010iKR2#,YR20,25,28..MTM..(B,D)198808-199201

33562STOPPER, CONTROL SHAFT UPPER BRACKET SHAFT

main33562-26010iKR27,YR20,25,28..5H198808-199201

33562APIN (FOR CONTROL SHAFT UPPER BRACKET SHAFT STOPPER)

main90254-03006iKR27,YR20,25,28..5H198808-199201

33572BUSH, CONTROL SHAFT LOWER (FOR COLUMN SHIFT)

main33572-28010iKR2#,YR20,25,28..MTM..(B,D)198808-199201

33573COVER, CONTROL SHAFT DUST, LOWER

main33573-28010×2iKR2#,YR20,25,28..MTM..(B,D)198808-199201

33578SEAT, CONTROL SHAFT LOWER BUSH, NO.1

main33578-28010×2iKR2#,YR20,25,28..MTM..(B,D)198808-199201

33578ARING, SNAP (FOR CONTROL SHAFT LOWER BUSH SEAT)

main96151-02800iKR2#,YR20,25,28..MTM..(B,D)198808-199201

33593HOLDER, SPRING (FOR SELECT LEVER)

main33593-26030iKR27,YR20,25,28..5H198808-199201

33641LINK, SELECTING (FOR COLUMN SHIFT)

main33641-28050iKR2#,YR20,25,28..MTM..(B,D)198808-199201

33641BBUSH (FOR SELECTING LINK)

main90386-15110×4iKR2#,YR20,25,28..MTM..(B,D)198808-199201

33686COVER, CONTROL LEVER DUST (FOR COLUMN SHIFT)

main33686-28010iKR2#,YR20,25,28..MTM..(B,D)198808-199201

33696SEAT, SELECT SPRING

main33696-26020iKR27,YR20,25,28..5H198808-199201

33696ASPRING, COMPRESSION

main90501-18049iKR27,YR20,25,28..5H198808-199201

33705CSUPPORT SUB-ASSY, GEAR SHIFT LINK LEVER(FOR COLUMN SHIFT)

main33705-28020iKR2#,YR20,25,28..MTM..(B,D)198808-199201

33711LEVER, CONTROL SHAFT (FOR COLUMN SHIFT)

main33527-28110iKR2#,YR20,25,28..MTM..(B,D)198808-199201

33711ABUSH (FOR CONTROL SHAFT LEVER)

main90386-13007×2iKR2#,YR20,25,28..MTM..(B,D)198808-199201

33731ROD, GEAR SELECTING, NO.1 (FOR COLUMN SHIFT)

main33720-28060iKR2#,YR20,25,28..MTM..(B,D)198808-199201

33740END ASSY, CONNECTING ROD, NO.1(FOR COLUMN SHIFT)

main33740-26010iKR26,YR25..4H198808-199201

main33740-36050iKR2#,YR20,25,28..MTM..(B,D)198808-199201

33741ROD, GEAR SHIFTING, NO.1 (FOR COLUMN SHIFT)

main33710-28060iKR2#,YR20,25,28..MTM..(B,D)198808-199201

33744LEVER, GEAR SHIFTING, NO.1 (FOR COLUMN SHIFT)

main33744-28030iKR2#,YR20,25,28..MTM..(B,D)198808-199201

33789ACOVER, CROSS SHAFT DUST, NO.3(FOR COLUMN SHIFT)

main33789-36010×2iKR27,YR20,25,28..5H198808-199201

sub33789-36020

main33789-36030×2iKR2#,YR20,25,28..MTM..(B,D)198808-199201

9017908146

main90179-08146

9058014002

main90580-14002

9161160612

main91611-60612

9165140820

main91651-40820

9411040800

main94110-40800

9411041000

main94110-41000

9412040100

main94120-40100

9412040800

main94120-40800

9451200800

main94512-00800

9451201000

main94512-01000

9453100500

main94531-00500

9461310800

main94613-10800

50 parts on this diagram · 3 diagrams in section
