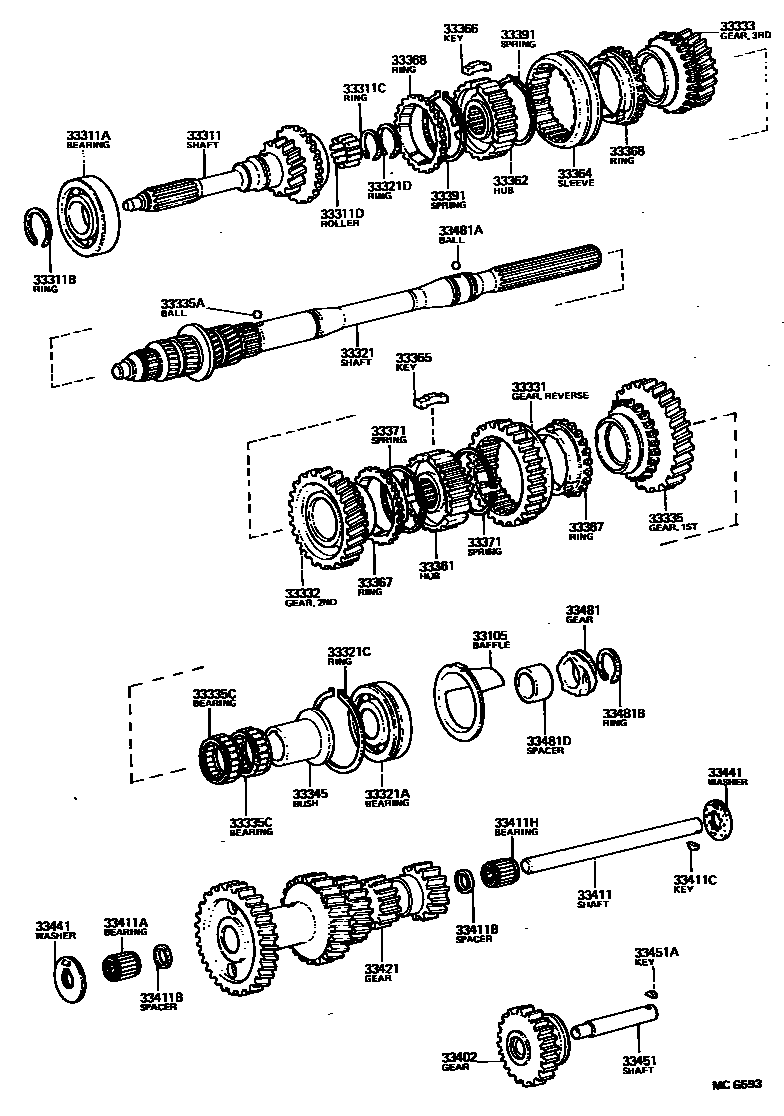

TRANSMISSION GEAR (MTM)

0001 1 0002 1

33105BAFFLE SUB-ASSY, EXTENSION HOUSING OIL

main33143-27010iKR26,YR25..4H198808-199008

33311SHAFT, INPUT

main33301-26030iKR27,YR25..5F,5H198906-199201

sub33301-35080

main33301-26040iYR20,21,28,3#..MTM198906-199201

sub33301-35071

main33301-28050iYR25..5F198808-198906

main33301-28060iYR20,21,28,3#..MTM198808-198906

main33301-35060iCR2#,3#..5F198808-199201

main33311-35040iKR26,YR25..4H198808-199008

33311ABEARING (FOR INPUT SHAFT FRONT)

main90363-32024iCR2#,3#,KR27,YR2#,3#..5F,5H198808-199201

main90363-35026iKR26,YR25..4H198808-199008

33311BRING, SHAFT SNAP (FOR FRONT BEARING)

main90520-30214iCR2#,3#,KR27,YR2#,3#..5F,5H198808-199201

main90520-30215iCR2#,3#,KR27,YR2#,3#..5F,5H198808-199201

main90520-30216iCR2#,3#,KR27,YR2#,3#..5F,5H198808-199201

main90520-30217iCR2#,3#,KR27,YR2#,3#..5F,5H198808-199201

main90520-30218iCR2#,3#,KR27,YR2#,3#..5F,5H198808-199201

main90520-30219iCR2#,3#,KR27,YR2#,3#..5F,5H198808-199201

main90520-33107iKR26,YR25..4H198808-199008

main90520-33168iKR26,YR25..4H198808-199008

main90520-33169iKR26,YR25..4H198808-199008

main90520-33170iKR26,YR25..4H198808-199008

main90520-33171iKR26,YR25..4H198808-199008

main90520-33172iKR26,YR25..4H198808-199008

33311CRING, HOLE SNAP (FOR NEEDLE ROLLER)

main90521-33006iKR26,YR25..4H198808-199008

33311DBEARING, INPUT SHAFT

main90361-06002×13iCR2#,3#,KR27,YR2#,3#..5F,5H198808-199201

main90361-06047×14iKR26,YR25..4H198808-199008

33321SHAFT, OUTPUT

main33321-26050iCR2#,KR27,YR2#..5F,5H198808-199201

main33321-27021iKR26,YR25..4H198808-199008

main33321-28010iCR3#,YR3#..5F198808-199201

33321ABEARING (FOR OUTPUT SHAFT REAR)

main97183-06306iKR26,YR25..4H198808-199008

33321CRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)

main90520-68181iKR26,YR25..4H198808-199008

main90520-68182iKR26,YR25..4H198808-199008

main90520-68183iKR26,YR25..4H198808-199008

main90520-68184iKR26,YR25..4H198808-199008

main90520-68185iKR26,YR25..4H198808-199008

main90520-71221iCR2#,3#,KR27,YR2#,3#..5F,5H198808-199201

33321DRING, SHAFT SNAP (FOR CLUTCH HUB SET)

main90520-28010iCR2#,3#,KR27,YR2#,3#..5F,5H198808-199201

main90520-28011iCR2#,3#,KR27,YR2#,3#..5F,5H198808-199201

main90520-28012iCR2#,3#,KR27,YR2#,3#..5F,5H198808-199201

main90520-28013iCR2#,3#,KR27,YR2#,3#..5F,5H198808-199201

main90520-28242iKR26,YR25..4H198808-199008

main90520-28243iKR26,YR25..4H198808-199008

main90520-28244iKR26,YR25..4H198808-199008

main90520-28245iCR2#,3#,KR2#,YR2#,3#..MTM198808-199201

main90520-28246iCR2#,3#,KR27,YR2#,3#..5F,5H198808-199201

main90520-28248iCR2#,3#,KR27,YR2#,3#..5F,5H198808-199201

33331GEAR, REVERSE

main33331-26010iKR26,YR25..4H198808-199008

main33331-28010iCR2#,3#,YR2#,3#..5F,5H198808-198906

main33331-28011iCR2#,3#..5F199102-199201

main33331-35060iKR27,YR2#,3#..5F,5H198906-199012

main33331-35061iKR27,YR2#,3#..MTM199012-199201

sub33331-35062

33332GEAR, 2ND

main33033-35011iCR2#,3#,KR27,YR25..5F,5H198808-199201

main33033-35021iYR20,21,28,3#..MTM198808-199201

main33332-35030iKR26,YR25..4H198808-199008

33333GEAR, 3RD

main33034-28020iKR27,YR2#,3#..5F,5H198808-199201

main33034-35030iCR2#,3#..5F198808-199201

main33333-26010iKR26,YR25..4H198808-199008

33335GEAR, 1ST

main33032-26020iKR27,YR2#,3#..5F,5H198906-199201

main33032-35050iCR2#,3#,YR2#,3#..5F,5H198808-198906

main33335-35010iKR26,YR25..4H198808-199008

33335ABALL, 1ST SHIFT RESTRICT

main90360-06004iKR26,YR25..4H198808-199008

33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)

main90364-37050×2iKR26,YR25..4H198808-199008

main90364-39011iCR2#,3#,KR27,YR2#,3#..5F,5H198808-199201

33345BUSH, 1ST GEAR

main33345-26011iKR26,YR25..4H198808-199008

33361HUB, TRANSMISSION CLUTCH, NO.1

main33361-26012iKR26,YR25..4H198808-199008

main33361-35020iCR2#,3#,KR27,YR2#,3#..5F,5H198808-199201

33362HUB, TRANSMISSION CLUTCH, NO.2

main33362-26011iKR26,YR25..4H198808-199008

main33362-35040iCR2#,3#,KR27,YR2#,3#..5F,5H198808-199201

33364SLEEVE, TRANSMISSION HUB, NO.2

main33364-26010iKR26,YR25..4H198808-199008

main33364-35030iCR2#,3#,KR27,YR2#,3#..5F,5H198808-199201

sub33364-26020

sub33213-35033

sub33220-26010

33365KEY, SYNCHROMESH SHIFTING, NO.1

main33365-26010×3iKR26,YR25..4H198808-199008

main33365-35020×3iCR2#,3#,KR27,YR2#,3#..5F,5H198808-199201

sub33365-35021

33366KEY, SYNCHROMESH SHIFTING, NO.2

main33366-26010×3iKR26,YR25..4H198808-199008

main33366-35040×3iCR2#,3#,KR27,YR2#,3#..5F,5H198808-199201

sub33366-35041

33367RING, SYNCHRONIZER, NO.1

main33367-26023×2iKR26,YR25..4H198808-199008

main33368-20012×2iCR2#,3#,KR27,YR2#,3#..5F,5H198808-199201

33368RING, SYNCHRONIZER, NO.2

main33367-14010×2iCR2#,3#,KR27,YR2#,3#..5F,5H198808-199201

main33367-26023×2iKR26,YR25..4H198808-199008

33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1

main33371-14010×2iKR26,YR25..4H198808-199008

main33371-14031×2iCR2#,3#,KR27,YR2#,3#..5F,5H198808-199201

33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2

main33371-14010×2iCR2#,3#,KR2#,YR2#,3#..MTM198808-199201

33402GEAR SUB-ASSY, REVERSE IDLER

main33402-26010iKR26,YR25..4H198808-199008

main33402-28011iCR2#,3#,YR2#,3#..5F,5H198808-198906

main33402-35050iKR27,YR2#,3#..5F,5H198906-199201

sub33402-60040

33411COUNTERSHAFT

main33411-30021iKR26,YR25..4H198808-199008

33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)

main90364-19068iKR26,YR25..4H198808-199008

main90365-25025iCR2#,3#,KR27,YR2#,3#..5F,5H198808-199201

sub90365-25023

33411BSPACER(FOR COUNTER GEAR BEARING)

main90560-19450×2iKR26,YR25..4H198808-199008

33411CKEY, WOODRUFF(FOR COUNTER GEAR SHAFT)

main90280-03005iKR26,YR25..4H198808-199008

33411HBEARING OR ROLLER(FOR COUNTER GEAR REAR)

main90364-19068iKR26,YR25..4H198808-199008

33421GEAR, COUNTER

main33421-26120iKR27,YR25..5F,5H198906-199201

sub33421-35170

main33421-28040iYR20,21,28,3#..MTM198906-199201

main33421-35051iKR26,YR25..4H198808-199008

main33421-35140iCR2#,3#,YR25..5F198808-198906

main33421-35150iYR20,21,28,3#..MTM198808-198906

33441WASHER, COUNTER GEAR SIDE THRUST, NO.1

main33441-26012iKR26,YR25..4H198808-199008

main33441-26022iKR26,YR25..4H198808-199008

main33441-26032iKR26,YR25..4H198808-199008

main33441-26042iKR26,YR25..4H198808-199008

main33441-26052iKR26,YR25..4H198808-199008

main33441-26061iKR26,YR25..4H198808-199008

33451SHAFT, REVERSE IDLER GEAR

main33451-28010iCR2#,3#,KR27,YR2#,3#..5F,5H198808-199201

sub33451-28011

main33451-30020iKR26,YR25..4H198808-199008

33451AKEY, WOODRUFF (FOR REVERSE IDLER GEAR SHAFT)

main90280-03005iKR26,YR25..4H198808-199008

33481GEAR, SPEEDOMETER DRIVE (MTM)

main33481-20070iCR27,KR27..MTM198808-199201

main33481-22010iCR21,28,YR21..5F198808-199201

main33481-25010iKR26198808-199008

main33481-25030iYR25..4H198808-199008

main33481-30040iYR20,25,28..5F,5H198808-199201

33481AKEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM)

main90360-06004iCR2#,KR2#,YR2#..MTM198808-199201

33481BRING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR)

main90520-26061×2iCR2#,KR27,YR2#..5F,5H198808-199201

main90520-28137iKR26,YR25..4H198808-199008

main90520-28242iKR26,YR25..4H198808-199008

main90520-28243iKR26,YR25..4H198808-199008

main90520-28244iKR26,YR25..4H198808-199008

main90520-28245iKR26,YR25..4H198808-199008

main90520-28246iKR26,YR25..4H198808-199008

main90520-28248iKR26,YR25..4H198808-199008

main90520-28249iKR26,YR25..4H198808-199008

33481DSPACER (FOR SPEEDOMETER DRIVE GEAR)

main90560-30355iKR26,YR25..4H198808-199008

40 parts on this diagram · 2 diagrams in section
