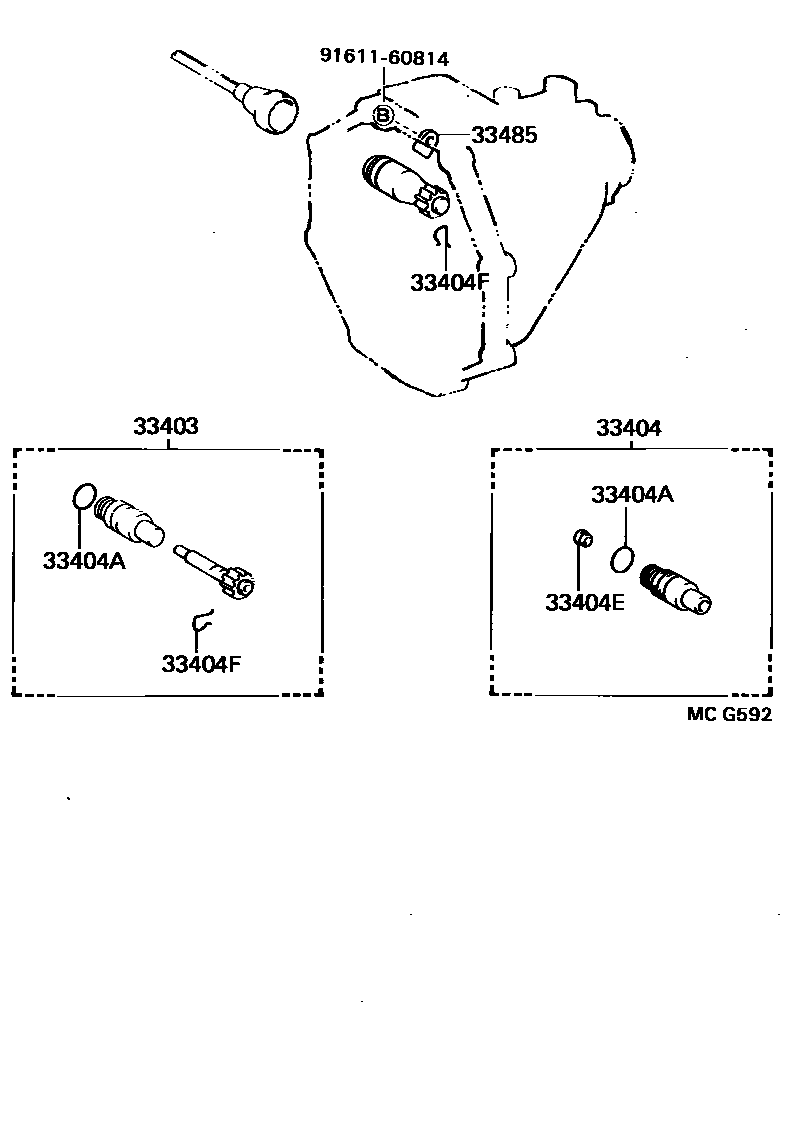

SPEEDOMETER DRIVEN GEAR (MTM)

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33482-29035iYR25..MTM198808-199201

main33482-29045iCR27,KR27..MTM198808-199201

main33482-29075iYR3#..5F198808-199201

main33482-29085iCR30,37..5F198808-199201

main33482-29095iCR36..5F198808-199201

main33482-39035iYR20,28..MTM198808-199201

main33482-39045iCR21,28,YR21..5F198808-199201

main33482-39095iKR26198808-199008

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-35010iCR30,36,YR3#;CR2#,37,KR2#,YR2#..MTM198808-199201

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90301-18018iCR30,36,YR3#;CR2#,37,KR2#,YR2#..MTM198808-199201

33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iCR30,36,YR3#;CR2#,37,KR2#,YR2#..MTM198808-199201

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iCR30,36,YR3#;CR2#,37,KR2#,YR2#..MTM198808-199201

33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-30020iCR30,36,YR3#;CR2#,37,KR2#,YR2#..MTM198808-199201

9161160814

main91611-60814

7 parts on this diagram · 1 diagram in section
