CLUTCH MASTER CYLINDER

04311CYLINDER KIT, CLUTCH MASTER

main04311-28010iCR2#,3#,YR2#,3#..MTM198808-198811

sub04311-60080

main04311-60080iCR2#,3#,KR27,YR2#,3#..MTM198811-199201

31410CYLINDER ASSY, CLUTCH MASTER

main31420-28082iKR27,YR20,25,28..MTM198808-199201

sub31420-28092

main31420-28092iCR2#,3#,YR21,3#..5F198808-199201

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main91611-60865iCR2#,3#,KR27,YR2#,3#..MTM198808-199201

31410FBOLT, UNION(FOR CLUTCH MASTER CYLINDER)

main90401-16078iCR2#,3#,KR27,YR2#,3#..MTM198808-199201

31410GGASKET(FOR CLUTCH MASTER CYLINDER UNION)

main90430-16242iCR2#,3#,KR27,YR2#,3#..MTM198808-199201

31410HUNION(FOR CLUTCH MASTER CYLINDER)

main90405-10125iCR2#,3#,KR27,YR2#,3#..MTM198808-199201

31434TUBE, CLUTCH RESERVOIR

main31434-28040iCR2#,3#,KR27,YR2#,3#..MTM198808-199201

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main96132-30800iCR2#,3#,KR27,YR2#,3#..MTM198808-199201

sub96132-51300

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-22070iCR2#,3#,YR21,3#..5F198808-199201

main31451-30120iKR27,YR20,25,28..MTM198808-199201

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-28011iCR2#,3#,YR21,3#..5F198808-198809

sub31404-28012

main31404-28012iCR2#,3#,YR21,3#..5F198809-199201

main31453-35010iKR27,YR20,25,28..MTM198808-199201

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010iCR2#,3#,KR27,YR2#,3#..MTM198808-199201

9412040800

main94120-40800

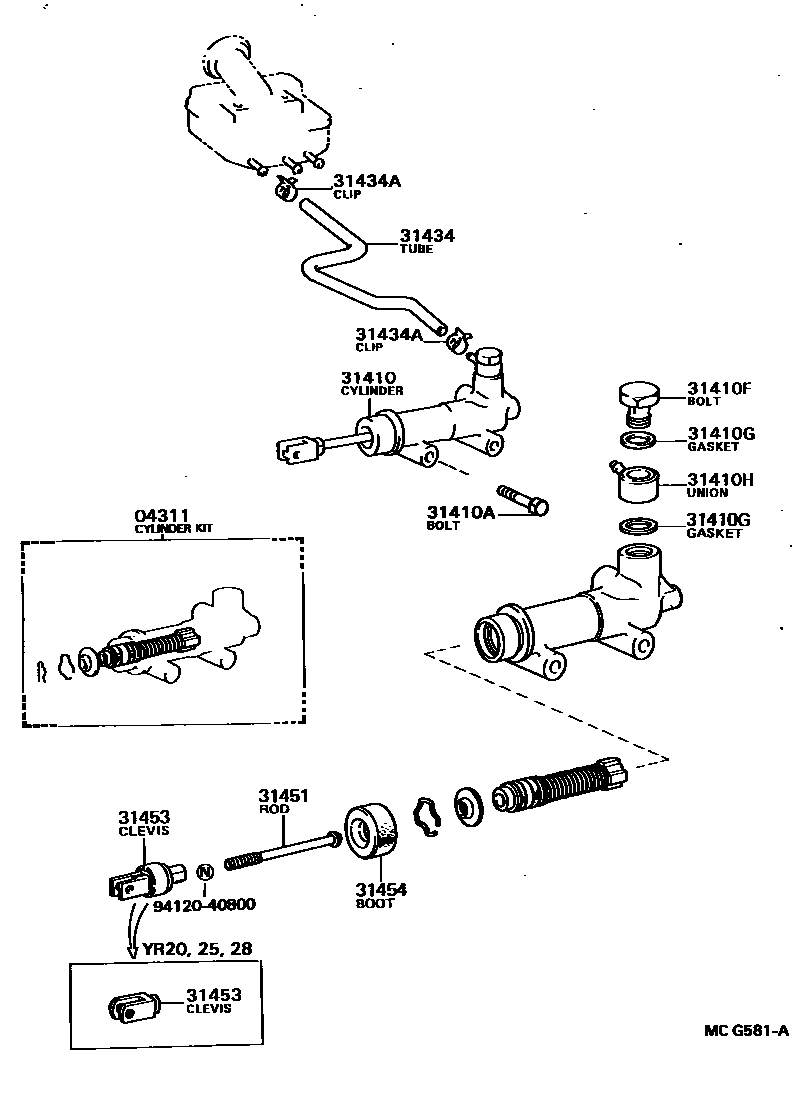

12 parts on this diagram · 1 diagram in section
